A double skinned, electric, aluminium, insulated slat construction roller garage door, offering strength, security and insulation from a made to measure brand leading roller door. The Hormann Rollmatic2 is electrically operated as standard and the motor drive is located outside the roller barrel casing for trouble-free maintenance with a unique operation and very easy manual override system. The motor is a single phase 240V motor and includes remote control operation as standard with a wall mounted push button operation and builk head light also included.
The integrated soft start and soft stop of the electric operator ensures smooth door travel and protects the door from wear and tear.
- ProMatic electric operator included with 2 handsets
- Remote adjustable ventilation slot function
- Automatic door locking function
- Only requires 60mm headroom, unique door movement
The Rollmatic2 insulated aluminium roller garage door from Hormann is a revolution in aluminium roller doors as it operates very much in principal like a sectional garage door. The balance of the door curtain weight is achieved by a vertically mounted spring to one side with a motor driving the curtain barrel on the other. It is simple, safe and very smooth with the easiest of manual override systems for this type of roller shutter.
This is a unique roller door tackling the rolling door operation in a unique way.
It is remote control electric operated as standard with control of the door using any of the enormous range of current Hormann control accessories. Standard operation is with 2 remote control handsets and an internal pushbutton on the control panel with integrated light.
Domestic garages and low use commercial openings.
Higher than standard wind ratings:
Up to 3500mm wide Class 5
Up to 4500mm wide Class 4
Up to 6000mm wide Class 3
Colours Available for the Paint Finish Door
White RAL 9016 powdercoat finish
Ruby Red RAL 3003
Steel Blue RAL 5011
Moss Green RAL 6005
Anthracite Grey RAL 7016
Light Grey RAL 7035
Terra Brown RAL 8028
Black RAL 9005
White Aluminium RAL 9006
Standard specification includes:
> 2 hand held transmitters (HSE4 BS)
> Impulse remote control with integrated lighting in the control housing box.
> Automatic safety cut out with obstacle detection
> Soft start and soft stop operation.
> Emergency internal release in case of power failure
> Fully enclosed hood and fascia colour matched to the curtain colour.
> Colour matched guides for ALL doors including Decograin finishes.
> Mechanical security kit for prevention of vertical forced entry.
> Storm anchors on curtain to provide large wind loads on curtain and increase security from lateral forced entry.
> Motor position is on Left Hand Side when inside garage looking out.
Please Note: Outside Face Fit Installation; the motor is housed for external use only, the receiver and control box is fitted internally.
Optional Extras:
> Emergency exterior manual release if no other entrance is available
> Accoustic alarm if attempted forced entry occurs
> Emergency battery power supply for 5 cycles in 18 hour cycle. Recharging is permanent during normal operation
> Compensation Fitting Kit (optional) - to accommodate for unevenness on the building structure when fitting behind the opening. This is now purely to accomodate uneven brickwork or stonework and provide a rubberised system between the face of the guide and the structure being installed to. The Mk3 Rollmatic2 has a thicker section to the front of the guides to acomodate a space between the hood cover and the curtain face, also keeping the curtain face spaced away from the building structure.
All the Hormann control accessories for garage doors and gates can also be added if required to the Hormann Rollmatic2 giving total flexibility on how you specify and operate the door.
Closing Edge Safety Device
All Hormann Roller garage doors over 5000mm wide are fitted with an optical closing edge safety device as standard. The device is factory fitted in the bottom profile and ensures safety as per DIN EN 13241-1, closing edge safety device with spiral cable.
Additional Surface Protection
Exclusive to Hormann, the new RollMatic2 features the Durabelt design helps to protect your garage door and keeps it looking beautiful for longer. The DuraBelt is placed between the individual layers of the door curtain, protecting the slats and so significantly reducing any scratch marks and scuffs.
Installation Instructions provided with every roller door.
Warranty
Hörmann products are manufactured to the highest quality standards and leave our factory only after rigorous quality testing. However, if you should have grounds for complaint, this section tells you what our door warranty offers, and how to go about making your claim.
In the unlikely event of a warranty claim becoming necessary, please contact the dealer or distributor who originally supplied your garage door. Your dealer should then supply details of the claim, together with a copy of the warranty card provided with the door and proof of purchase to the Product Services Department at Hörmann (UK) Ltd. To enable your claim under warranty to be processed as quickly as possible, you should provide the following details:
1 Your name, address and telephone number
2 Original invoice with date of purchase
3 Product description/door type and product number
4 Description of defect
An assessment of the claim will then be made. This may require Hörmann to inspect the product in-situ. In the event that there is no legitimate warranty claim under the terms specified herein, you may be liable for the costs of the inspection visit. We strongly recommend that you take note of the care and usage instructions displayed on the stickers on the back of your garage door, and on the page opposite, and that you follow these instructions throughout.
Hörmann (UK) Ltd Garage Door Warranty
Warranty Period The purchaser is granted a warranty covering the safe and reliable function of the Hörmann garage door for a period of 10 years from the date of purchase. A 5 year warranty applies to springs, wire cables, track rollers, hinges and guide rollers. The warranty period for replacement parts is 6 months or to the end of the current warranty period, whichever is longer. In the case of foilcoated timber-effect, a warranty of 5 years is granted, for timber and GRP doors a warranty of 2 years is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period.
Requirements
Warranty claims are only applicable in the country where the garage door was purchased. The product must have been purchased through our authorised distribution channels. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.
Performance
During the warranty period we undertake to rectify any and all defects to the Hörmann product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage.
Replaced parts become our property.
The warranty does not cover damage caused through:
• normal wear and tear
• improper installation
• negligent care and maintenance
• improper initial and subsequent operation
• negligent or wanton destruction
• external influences such as fire, water, salts, alkaline solutions, acids, abnormal environmental influences
• mechanical damage through improper transport and fitting
• priming and other surface protection treatments
• incorrect or too late applied surface protection treatments
• repair by non-qualified persons
• using non-Hörmann parts without the approval of the manufacturer
• removal of the product number or making it unidentifiable
Electric Operator Warranty
A separate 5 year warranty is granted on our electric operators. This includes operator mechanics, motor and motor control systems. A 2 year warranty is granted on radio equipment, accessories and system controls. There is no warranty on consumables (e.g. fuses, batteries, bulbs etc.).
User Information/Care
Finish - Steel Doors
The coating process applied to the door and chassis is environmentally friendly. Minor scratches or marks are not covered under the conditions of our warranty and should be repaired immediately to prevent corrosion and deterioration of the panel. Corrosive substances such as acids, alkalines, and salts, etc. should be cleaned from the door immediately; failure to do so will result in deterioration of the finish, which will not be covered under our warranty. Should deterioration of the finish start to occur you will need to repaint your door immediately. Prepare the surface lightly with wet and dry. Then treat with solvent based 2 pack epoxy wash primer and a normal commercial paint (cellulose paint must not be used). Hörmann steel doors are a finished product. They do not require re-painting on site. They are however not immune to damage, which can occur at any stage of the handling of the product from factory to site.
Finish - Timber Doors
Timber panels are coated with a neutralising base-stain. Doors must be stored upright, under cover, with wrapping intact, until wrapping is removed. As soon as the door is unwrapped, one coat of a good quality basecoat primer must be applied to both sides of the door. Immediately after installation, your timber doors require a further two coats of a good quality exterior wood finish on both sides. Initial application and periodic treatment should be carried out strictly in accordance with the woodstain manufacturer's instructions. Failure to follow these instructions will result in early deterioration of the timber panel.
Finish - GRP Doors
GRP door panels should periodically washed down using water. This should be done more frequently if fitted near the sea. Bird droppings will bleach the finish on GRP. and should be removed using water as soon as possible. GRP doors should not be painted over.
Paint Finish - Steel Doors
Minor surface damage can easily be repaired using touch up sprays or sticks without invalidating warranties.
Safe Operating and Maintenance of Hormann Garage Doors PDF >
Max width (opening width) 6000mm
Max height (opening height) 3000mm

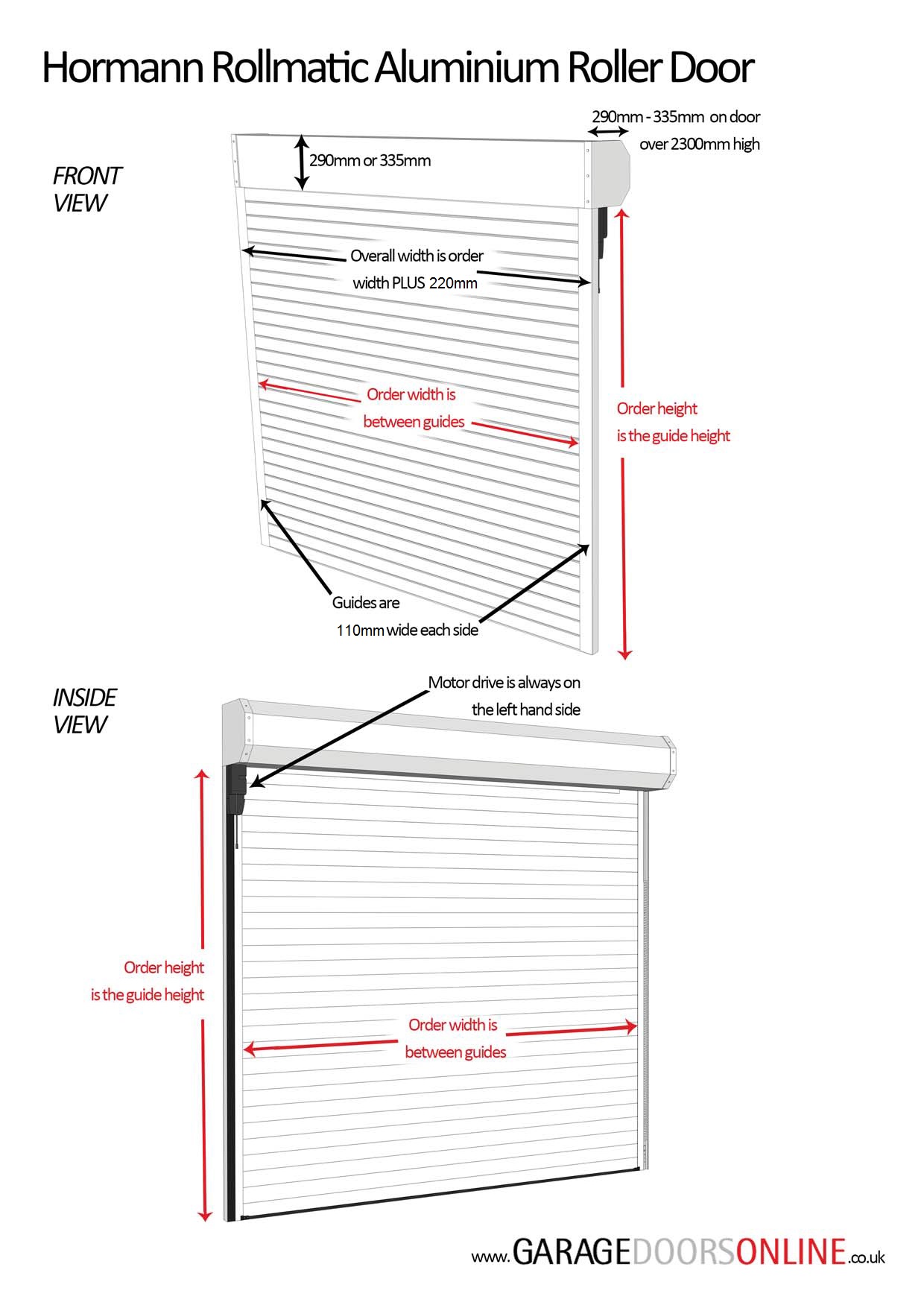

The ordering sizes for a Rollmatic2 are different to most other insulated roller doors in the UK. The ordering reference sizes are for the actual opening width and height - NOT including the side guides and roll hood enclosure.
Please allow fitting tolerances - we recommend +5mm per side +5mm to head, for internally fitted doors, externally fitted doors 215mm on motor side.
The guides are all 110mm wide each side whatever the door size and the headroom required for the roll and hood enclosure is 290mm on doors up to 2300mm high and 335mm on all doors over 2301mm high.
Example: Installing a Rollmatic2 on the inside face of a structural opening of 2280mm wide and 2150mm high will mean an 'up-to' size of 2280mm and 2150mm assuming, of course, you have sufficient headroom and sideroom for the guides and hood. The overall width will be 2480mm and the overall height will be 2440mm.
Hormann Rollmatic 2 - Decograin Finish (in Golden Oak and Rosewood)
Hormann Rollmatic 2 - Decograin Finish (in Golden Oak and Rosewood)
