Hormann Sectional Garage Doors

Sizes

Hormann sectional garage doors are available from 2000mm wide up to 6500 mm wide in most of the different panel designs, more size restrictions apply to the LTE40 single skin doors as they do not have the ultimate panel strength of the double skinned LPU40 doors. Heights are available up to 3000mm. If you have a very wide garage Hormann can also offer a 'Combi door' which in essence is a commercial door specification for the mechanical operating mechanism but uses domestic design insulated steel panels, this sectional garage door is available up to a massive 7.5 metres wide!!

hormann sectional garage doorsThe Hormann sectional garage doors sold through our current online system are the domestic UK sized doors only, if you require larger doors, European sizes or different panel designs then please call or email us with your requirements as there are so many variations.

Hormann sectional garage doors are all ordered using the internal frame opening size but the imperial order references for UK sized doors are to the nearest feet and inches size to the exact metric size. Eg. A 7'0" x 7'0" order size Hormann sectional in metric is actually a 2134mm wide x 2125mm high inbetween the steel fixing frame. The overall width and height with the fixing frame is always bigger than the order size and every Hormann sectional door will be supplied with a steel fascia 90mm in depth matching the door colour or finish chosen to help finish installations where the height is a little higher than the ordering size.

Go to our DIY guide section for more information on sizing. Remember - sectional garage doors do not go through the opening during opening and closing and can be installed on smaller or larger garage openings than the actual order size, you may not need a made to measure size!

Hormann Door Panel Designs

The designs available may at first seem limited as it appears to be either a Horizontal ribbed design or a 'Georgian' panelled design. It is true that sectional door designs Hormann lpu40 M ribbedl sectional door designin steel are restricted due to the operating mechanism of the door i.e. split panels rising vertically - however look closer and you will see variations in each design creating a very different classic visual appearance. There is also a complete range of 'designer doors' in the LPU40 range with artistic design stainless steel and glazing elements incorporated into the door panels. These doors have a range of matching front entrance doors as well to create a perfect co-ordinated appearance.

The timber sectional door range offered by Hormann again has 2 basic designs - the classic horizontal boarded design and the 'V panel' raised and fielded panel design - however the clever use of computer factory routing in either Nordic pine or Hemlock timber means you can create your own sectional garage door design - a service offered by Hormann from their factory in Germany. Some standard designs are also readily available, a good example being the design 405, recreating a double leaf barn door effect with optional false hinges to finish the overall effect.

The designs below are the most popular and versatile steel sectional doors available from our website.

S Ribbed Hormann sectional door
Small 'S' Ribbed
sectional hormann M ribbed garage door
Medium 'M' Ribbed
L ribbed hormann sectional garage door
Large 'L' Ribbed
lpu40 hormann s panelled sectional door
Small 'S' Panelled

Hormann sectional door shop Get a Price Online Now - Up to 40% off RRP!

Colour and Finishes

Hormann steel sectional doors are finished as standard in white paint finish - a finish which if you wish can be lightly rubbed down and painted. Most people don't bother to do this as Hormann offer a comprehensive RAL colour range as an optional finish to the exterior - over 400 colours to choose from! A limited range of RAL colours are also available at special prices with faster delivery times from Hormann - some 15 colours to choose, all offered through our online quoting system.

New for Autumn 2014: Titan Metallic CH 703.

RAL 7040 Window Grey sectional door colour
RAL 7040
Window Grey
RAL 7030 Stone Grey sectional door colour
RAL 7030
Stone Grey
RAL 7035 Light Grey Hormann sectional colour
RAL 7035
Light Grey
RAL 1015 Light Ivory sectional garage door colour
RAL 1015
Light Ivory
RAL 5014 Pigeon Blus sectional colour
RAL 5014
Pigeon Blue

RAL 5011 Steel Blue colour for sectional
RAL 5011
Steel Blue

RAL 9006 White Aluminium garage door colour
RAL 9006
White Aluminium

RAL 8003 Clay Brown sectional door colour
RAL 8003
Clay Brown
RAL 8001 Ochre Brown colour
RAL 8001
Ochre Brown

RAL 8028 Terra Brown
RAL 8028
Terra Brown

RAL 3003 Ruby Red sectional door colour
RAL 3003
Ruby Red

Anthracite CH703 from Hormann
CH703
Anthracite (Extra Cost)

RAL 6009 Fir tree Green Hormann sectional
RAL 6009
Fir Tree Green
RAL 6005 Moss Green sectional colour
RAL 6005
Moss Green
RAL 7016 Anthracite sectional door colour
RAL 7016
Anthracite


The sectional door panels also have subtle differences in that many of the door designs are available as a woodgrain or silkgrain finish, woodgrain being as it describes -  with a robust, woodgrain structured surface and silkgrain a smooth elegant surface with extra reinforcement in the exterior face of this option. Recently introduced is the new micrograin finish, only available on the L or M Ribbed door panel.

The new Sandgrain finish is available in Traffic White and 3 coil coated colours - Anthracite Grey RAL 7016, White Aluminium RAL 9006 and Terra Brown RAL 8028.

Decograin laminate woodgrain finish micrograin surface finish for sectional doors
Woodgrain Silkgrain Decograin Micrograin *Sandgrain

More recently the laminated Decograin finish has been introduced - 5 beautiful woodgrain laminate finishes with unique embossed graining offering either Golden Oak, Winchester Oak, Night Oak, Rosewood or Dark Oak as a tough, fully finished surface with a 10 year guarantee - a perfect match to many Upvc windows and external timber features.

decograin golden oak
Golden Oak

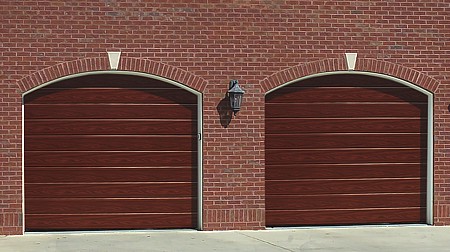

decograin rosewood
Rosewood
decograin dark oak
Dark Oak

Winchester Oak
night oak
Night Oak



Titan metallic is another option available in a synthetic foil coating offering a subtle metallic effect on the already popular anthracite finish (similar to CH703) - these colours are available only on the LPU40 double skinned range of sectional doors.

Operating Mechanisms

Hormann offer 2 basic operating mechanism types - tension springs (Z track) in the side channels for doors up to 3048mm wide and overhead tension springs (N track) for doors over 3048mm wide.

Typical N track sectional door with operatorSide sprung or 'Z track' sectional doors only require 100mm of headroom clearance as the curve in the tracking is tighter than the double doors and the springs are situated in the side channels.

Torsion sprung or 'N track' doors require 210 mm of headroom clearance as the spring mechanism is directly above the top door panel and the track curve is not as tight.

Combi doors with the commercial torsion spring system will require 390mm (more on higher doors) as standard as the torsion spring is a lot bigger to assist the weight of the larger doors.

All the sectional garage door systems wider than 3048mm can have an optional low headroom (L Track) mechanism supplied where the torsion spring is relocated from the front to the rear of the horizontal guide tracks and the headroom requirement reduced to as little as 115mm. Final drivethrough heights are usually comprimised slightly with reduced headroom options as the bottom door panel cannot be pulled fully clear of the opening - it is however always higher than an equivalent height up and over door type.

Click here for a PDF download of ALL the gear types >

Features
Hormann sectional garage doors will give you the following - as standard:

Full drive through width with a sectional doorFully sealed perimeter - with rubber seals and close fitting to steel framework. The large bottom rubber seal on a level floor will prevent leaves and dust, etc.
Vertical operation - meaning you can park your vehicle right up to the door inside or out and still open and close it.
Excellent security - provided by 5 encapsulated rollers in steel hinges either side of a standard door and a rotary latch locking mechanism with europrofile cylinder locking as standard - of course the double skinned doors are very strong against physical attacks.
Easy operation - due to the spring mechanisms assisting the door during most of the operation, unlike an up and over type, the doors are surprisingly easy to operate.
Anti finger trap protection - patented Hormann design in the door panel sections preventing entrapment of fingers during operation, inside and out.
Powdercoat finishes - standard on all doors inside and out with the bright white (RAL9016) finish externally and off white (RAL 9002) internally - no need to paint.
Quality components
- All hinges, rollers, tracks, springs, etc. are all zinc or galvanised plated as standard to ensure longevity.
Remote control ready - due to the retractable tracking mechanism of a sectional door they are ready to have any standard boom operator fitted with no further adaptions.
Full drivethrough - no reduction in the drivethrough width - a 2286mm wide door gives you 2286mm when open. With the N track mechanism you get the full height and only lose approx. 50mm on the Z track mechanism when fully open.
10 year guarantee - on the entire garage door from an established, worldwide renowned company

When you consider all the benefits a Hormann sectional garage door can offer it is hard to even consider any other type of garage door. The sectional door is also excellent value for money compared to any garage door the same size especially when you consider all the standard features not available on other doors.

Download Hormann sectional colour brochure (97 pages) >

Get a quote online now >

LPU40 Sectional Door Information page >

The Hormann sectional garage door range offers the very latest in design, safety, technology and innovation from a company established throughout the world and known for unparalleled quality and choice. Garage Doors Online offer the entire range.

The Hormann range is by far the largest available in the U.K. and offers high quality sectional garage doors in a wide range of steel and timber designs and finishes. The table below shows the majority of the sectional door designs available by panel finish, door design and panel thickness available i.e single or double skinned. The individual garage door design range in the timber is available to recreate almost any design required by computer controlled routing into composite timber panels.

Hormann Domestic Sectional Door Models Explained

LTE40

Single skin galvanised steel panels

EPU40 20mm double skin insulated steel panels
LPU40  42mm double skin insulated steel panels
LTH40  Timber handmade door panels
Combidoor Larger 42mm domestic sectional door using commercial operating mechanism.
 SPU40  42mm commercial specification insulated door (up to 8000mm wide!!)

The Choice of Standard Sectional Panels

Hormann Steel Door Panels

LTE 40 Single Skin Steel Panel Range
Model Door Design   Panel finishes available Max. width Max. Height
 LTE40  S Ribbed  Hormann LTE 40 S Ribbed  Woodgrain  5000  3000
 LTE40  M Ribbed  Hormann LTE 40 M Ribbed  Woodgrain  5500  3000
 LTE40  S Panelled Hormann LTE40 S panel  Woodgrain  3000  3000
EPU 40 20mm Insulated Steel Panel Range  Discontinued 2014
 EPU40  M Ribbed  Hormann EPU40 M Ribbed  Woodgrain  5000  3000
 EPU40  S Panelled Hormann EPU40 S panel  Woodgrain  5000  3000
LPU 40 42mm Insulated Steel Panel Range
 LPU40 S Ribbed  Hormann LPU40 S Ribbed  Woodgrain  6500  3000
 LPU40 M Ribbed  Hormann LPU40 M Ribbed  Woodgrain, Silkgrain, Micrograin  6500  3000
 LPU40 L Ribbed   Hormann LPU40 L Ribbed  Decograin, Silkgrain, Micrograin  6500  3000
 LPU40 M Ribbed   Hormann LPU 40 M Ribbed Decograin Golden Oak  Decograin  5500  3000
 LPU40 S Panelled Hormann Decograin LPU40 S panel Golden Oak  Decograin  5500  3000
LPU40 Design Line
Special order
design line 457 sectional door  Silkgrain  5500  3000
 LPU40  S Panelled  LPU 40 s panel sectional door  Woodgrain  5500  3000
 SPU40  Combi Door
Special order
   Stucco  7000  5000
Hormann Timber Door Panels
 LTH40 S Boarded
Special order
Hormann S Ribbed Nordic Pine  Nordic Pine  5000  3000
 LTH40 V Panelled
Special order
Hormann LTH 40 V Panelled Nordic Pine  Nordic Pine  5000  3000
 LTH40  S Boarded
Special order
Hormann LTH40 S Ribbed Nordic Pine  Hemlock  5000  3000
 LTH40  V Panelled
Special order
Hormann LTH40 V panelled Hemlock  Hemlock  5000  3000
 LTH40  Design 405
Special order
style 405 with optional ironmongery fittings  Nordic Pine  5000  3000
 LTH40  Design 405
Special order
style 405 with optional ironmongery fittings  Hemlock  5000  3000

Other timber sectional door designs are available using the design your own facilities from the factory.
'Designer' steel sectional doors are available with various stainless steel and glazing elements inset into limited LPU40 door panels to create a unique and very contemporary door design with modern, trendy colour finishes also available.

Call us on (01926) 463888 for further information and price
