GDO SmartRoll 77 Premium Remote with Total Smart Control (5 Signature Colours) Insulated Roller door garage door Aluminium GDO

• Live Position Confirmation: Check the TaHoma app at any time to see the exact status of your garage door—know with 100% certainty whether it is fully closed, open, or stopped partially.

• Remote Control from Anywhere: Forgot to close the garage? Tap your phone screen to secure it from work or while away on holiday.

• Courier Deliveries & Guest Access: Open the door remotely to allow safe parcel deliveries or tradesperson access, then monitor closure directly from the app.

• Hands-Free Voice Control: Fully compatible with Amazon Alexa, Google Assistant, and Apple Siri Shortcuts—open your garage door and gates with simple voice commands from your car or smart speaker.

• Custom Scenarios & Automation: Create one-touch routines such as "Leaving Home" (closes the garage door, locks smart locks, and turns off smart lighting) or "Arriving Home".

• Multi-Brand Ecosystem: Seamlessly pairs with other Somfy RTS and io devices (awnings, blinds, electric gates) as well as partner smart systems like Philips Hue, Sonos, and Zigbee 3.0 devices.

• Integrated 100 dB+ Anti-Lift Alarm: Uses the bottom safety edge as an

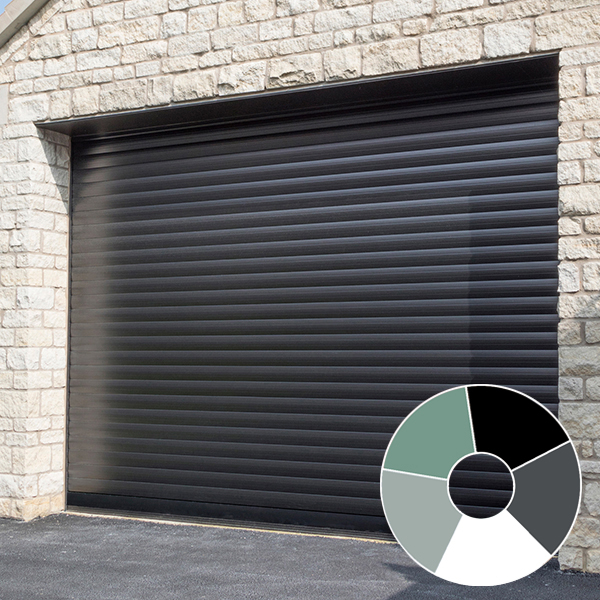

• White (RAL 9016)

• Anthracite Grey (RAL 7016)

• Black (RAL 9005)

• Chartwell Green

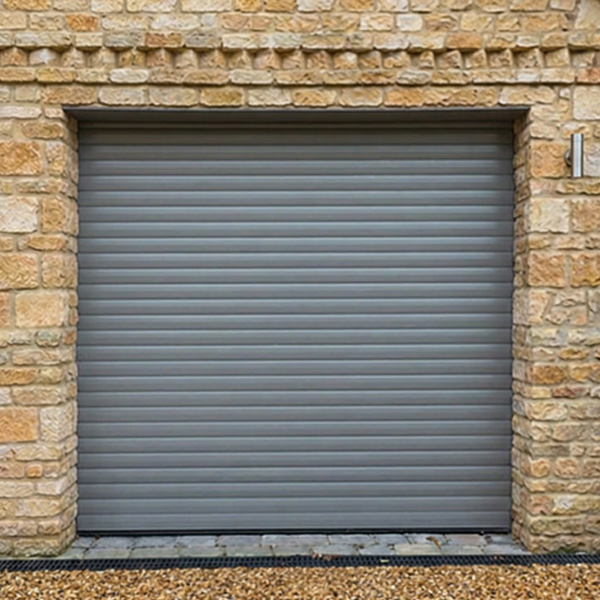

• Agate Grey (RAL 7038)

• Somfy TaHoma Switch Smart Hub: Connects to your home Wi-Fi network to enable 2-way smartphone app control with real-time status feedback, automated custom scenarios, and hands-free voice control via Amazon Alexa, Google Assistant, and Apple Siri Shortcuts.

• Somfy Rollixo Premium io Control Panel: Wall-mounted receiver featuring integrated push buttons, diagnostic display, and an automatic timed courtesy light.

• Integrated 100 dB+ Anti-Force Alarm: Monitors the door when fully closed, sounding a loud acoustic siren if an attempt is made to jack or lever the curtain upwards.

• 2 x Somfy Keygo 4 io Handsets: Ergonomic 4-channel 2-way rolling-code keyfobs with a recessed main button to prevent accidental pocket activation.

• Dual Safety Protection System: Bottom slat optical safety edge plus cross threshold photoelectric safety beams for fully compliant, safe smartphone operation and timed auto-close functionality.

• Internal Manual Override Handle: Winding handle hooks directly into the Somfy motor eye for effortless manual opening during a mains power failure.

• External Hard-Wired Key Switch: Surface-mounted in a sturdy weatherproof housing on the exterior wall, providing key-operated control from the driveway without carrying a handset or phone.

• External Low-Level Manual Release: Essential if your garage has no separate pedestrian door, allowing you to disengage and manually wind the door open from the outside during a mains power cut.

• Installation Position: Choose Behind the Opening (Face Fix) for maximum drive-through width and clearance, or Inbetween the Opening (Reveal Fix) where internal headroom or sideroom is limited. External face fitting is also supported thanks to the standard full box hood.

• Motor & Override Handing: Select left-hand or right-hand side (as viewed from inside the garage) for the Somfy tubular motor, manual override eye, and power connection to match your electrical supply.

• Article Number: 1870600

• Radio Frequencies: 868 to 870 MHz and 433.42 MHz

• Wireless Technologies: io homecontrol, RTS and Zigbee 3.0

• Power Connection: 1 x Micro USB (230V mains to 5V DC 1A)

• Enclosure Protection: IP30 rated (indoor use only)

• Operating Range: Up to 200 metres open field

• Working Temperature: 0°C to +50°C

• Dimensions and Weight: 162mm x 67.5mm x 34mm | 213g

• Status Indicator: Multi colour LED (red, green, orange, white)

• Physical Buttons: Two scene launch buttons on top of unit

• Warranty: 5 years (UK PSTI statement of compliance certified)

• Total Connected Products: Up to 200 devices across all protocols

• io homecontrol devices: Up to 200 products

• RTS devices: Up to 50 products

• Zigbee devices: Up to 50 products

• Somfy sensors and alarms: Up to 50 units

• Security cameras: Up to 5 cameras

• Philips Hue: 1 Hue Bridge gateway controlling up to 50 Hue lights

• Custom Scenarios: 40 Manual Scenes, 20 Scheduled Scenes and 20 Advanced Scenes

• 1 x Somfy TaHoma Switch hub

• 1 x Micro USB power supply and cable

• 1 x Quick Start installation guide

• Live Status Feedback: The system always confirms the exact open or closed position of your garage door on your app screen.

• High Security Encryption: Secure digital transmission protects communication between all paired products.

• Modular and Scalable: Easily add further automated products at any time.

• Roller Garage Doors: Somfy Oximo io and Rollixo Premium io systems

• Sectional and Up and Over Doors: Somfy Dexxo Pro io boom operators

• Outdoor Patio Awnings: Somfy Sunea io, Maestria io and Sunilus io

• Electric Gates: Somfy Axovia io, Elixo io and Ixengo io gate motors

• Floor Level: Ensure the garage floor threshold is completely level across the full opening so the bottom rubber weatherseal compresses evenly and the optical safety edge operates correctly.

• Headroom Allowance: Verify you have 300mm of vertical headroom above the guide height for the 300mm x 300mm steel endplates and full aluminium box hood.

• Side Room (Face Fix): Check you have a minimum 75mm (or 90mm on doors over 3000mm wide) of solid brickwork pier on each side to fix the aluminium side guides.

• Power Supply: Position an unswitched 13 amp fused spur or mains socket within 1.5 metres of the Somfy Rollixo control unit on your chosen motor side.

• Home Wi-Fi: Check that your home Wi-Fi network operates on 2.4 GHz with good signal strength where the TaHoma Switch hub will be located inside the home or garage.

Step 1 — Assemble Frame & Hood: Insert the steel endplate spigots into the top of each brush lined aluminium side guide channel on a flat floor to form a rigid U-frame. Slide the top and back sections of the aluminium full hood into the endplate channels.

Step 2 — Position and Secure: Lift the assembled frame against the opening. Use a spirit level to check both guides are plumb and the endplates are level across the top. Fasten the guides to the brickwork using appropriate heavy duty fixings at approx 500mm centres.

Step 3 — Mount Motor, Barrel & Brake: Position the Somfy tubular motor into the drive endplate and mount the steel barrel and anti-drop safety brake onto the dummy endplate. Confirm the barrel rotates freely and secure the safety retaining pins.

Step 4 — Feed Curtain & Top Straps: Carefully feed the insulated aluminium curtain down into the side guides. Attach the top slat to the barrel using the heavy duty anti-lift locking straps, spacing them evenly across the barrel.

Step 5 — Mount the Rollixo Panel: Fix the Somfy Rollixo Premium io panel to the internal wall at approx chest height. Connect the motor cable, bottom safety edge transmitter, cross threshold photocell beams and mains power following the included wiring schematic.

Step 6 — Set Limits & Test Alarm: Set the upper and lower motor stop limits. Test the bottom optical safety edge and verify that the built in 100 dB anti-force alarm arms when the curtain is fully closed.

Step 7 — Close Hood Fascia: Clip and fasten the front fascia panel of the aluminium full hood to complete the weather enclosure.

Step 1 — Power Up the Hub: Place your TaHoma Switch in a central location within range of your home Wi-Fi router and plug in the supplied Micro USB power cable. The LED status light will flash blue when ready for setup.

Step 2 — Download the TaHoma App: Download the free Somfy TaHoma app from the Apple App Store or Google Play Store and create or log in to your Somfy account.

Step 3 — Connect to 2.4 GHz Wi-Fi: Open the app, select Add TaHoma Switch, accept the Bluetooth pairing prompt, and select your home 2.4 GHz Wi-Fi network. Enter your Wi-Fi password to bring the hub online (the LED light turns solid white).

Step 4 — Pair the Rollixo Premium io Unit: In the TaHoma app, tap Add Equipment, choose Garage Door & Gate, and select Somfy Rollixo io. Press the Prog button on your Rollixo panel for 2 seconds until the indicator flashes, then confirm pairing in the app. The app will immediately establish 2-way communication and display your door's live status.

Step 5 — Configure Voice & Scenarios: Link your Somfy account within the Amazon Alexa, Google Assistant or Apple Shortcuts apps to enable voice commands. You can also assign the two top physical buttons on the TaHoma Switch to custom scenes such as Leaving Home or Arriving Home.

• Wi-Fi Band: The TaHoma Switch requires a 2.4 GHz Wi-Fi band. If your router combines 2.4 GHz and 5 GHz into one name, temporarily split the bands or connect via the 2.4 GHz channel during initial setup.

• Auto Close Safety: If activating the timed automatic closing feature in the Rollixo panel, always ensure the included cross threshold photoelectric safety beams are cleanly aligned and tested.

• Manual Override Check: Always test the manual winding handle before handing over the installation to ensure easy manual operation during a power cut.

• Telephone Technical Support: 01926 463888 (Monday to Friday 8:30am to 5:00pm)

• Email Technical Desk: enquiries@garagedoorsonline.co.uk

Warranty Terms & Conditions



Certificate of Guarantee

1.1. The following guarantees apply to GDO Roll 55 and Roll 77 Electric Button Control roller garage doors, subject to correct installation, maintenance and operation:

1.1.1. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors are guaranteed against defect of material or workmanship by the manufacturer with a parts only warranty for a period of 2 years from the date of original purchase.

1.1.2. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors’ exterior finish is guaranteed to provide an effective weatherproof membrane that will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase.

1.1.3. Externally fitted reverse roll GDO Roll 55 and Roll 77 Electric Button Control roller garage doors will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase. Colour change or fade to the exterior surface will be limited and uniform during the guarantee.

1.1.4. GDO Roll 55 and Roll 77 Electric Button Control motors and the Genesis, Teleco Simple and C10 control units are guaranteed for a period of 2 years from the date of purchase.

1.1.5. Somfy motors and the Rollixo control unit are guaranteed for a period of 5 years from the date of purchase.

1.2. This guarantee is in addition to your legal rights in addition to the manufacturers products that may be faulty or not as described. Advice about your legal rights is available from your local Citizens’ Advice Bureau or Trading Standards Office.

1.3. The following terms apply to all GDO Roll 55 and Roll 77 Electric Button Control roller garage doors purchased for installation in the UK. The terms shall prevail or be in addition to any agreement between you, the customer, the installer and/or the manufacturer.

1.4. The manufacturer will replace any components of our products sold as GDO Roll 55 and Roll 77 Electric Button Control roller garage doors (‘the Product’) where the manufacturing process has resulted in a defect occurring during the relevant period specified in the Conditions of Guarantee.
