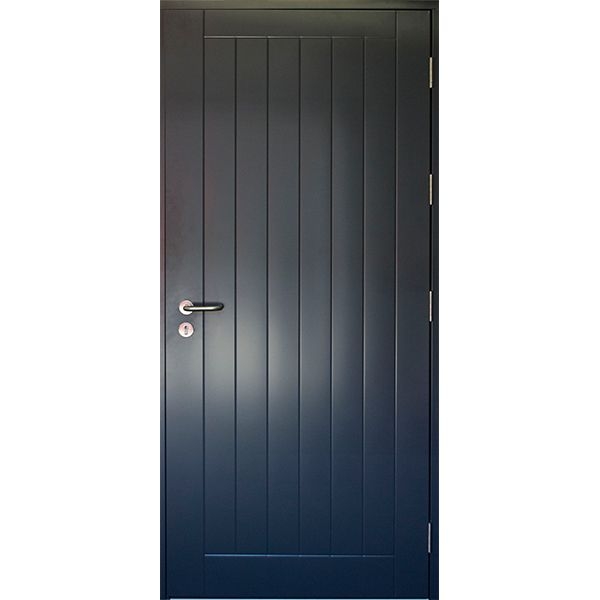

GarageGuard garage door Steel Samson

Pre assembled Security Steel Doorset for use in outbuildings and garages. GarageGuard has been designed specifically for securing domestic and commercial outbuldings to provide excellent security whilst being visually appealing with either the standard smooth finish design or options with vertical and horizontal lines outside or inside, or both. The magnelis steel used in construction has a unique 10 year anti corrosion warranty.

Made to order sizes up to 1085mm wide x 2195mm high (larger sizes are available on application)
Flat smooth panel finish both sides as standard, astragal steel seal to outside panel for security. Optional grooved design in vertical or horizontal design with options for the line spacing depending on your preference.
Choice of standard colours from PPC range (see PDF brochure and options list)
Standard panel infill honeycomb giving 3.1 w/m2K insulation value

Frame Type C - 95mm deep with single rebate and adjustable outer frame extensions +/- 15mm adjustment for each side of the frame to accomodate out of square apertures. Options available for larger frames to cover structural defects and damage.
Threshold 15mm rebated aluminium as standard, options available.
19mm round bar stainless steel lever handles to both sides
Hooply multipoint sashlock with Securefast 1 star 80mm (40/40) euro double cylinder nickel finish and Securefast TS007 tested 2 star euro profile security escutcheon as standard with options to add one or 2 more locking points.

Colour options:

Traffic Grey A - RAL 7042
Grey Aluminium RAL 9007
Signal Grey RAL 7004
Basalt Grey - RAL 7012
Mouse Grey - RAL 7005
White - RAL 9010
Iron Grey RAL 7011
Squirrel Grey - RAL 7000
Flame Red RAL 3000
Rape Yellow - RAL 1021
Light Grey RAL 7035
Traffic Red RAL 3020
Grey Aluminium RAL 9007
Signal White - RAL 9003
Black Grey - RAL 7021
Olive Green - RAL 6003
Window Grey RAL 7040
Jet Black RAL 9005
Steel Blue RAL 5011
Gentian Blue RAL 5010
Sapphire Blue RAL 5003
Merlin Grey BS18B25
Traffic White RAL 9016
Grey Brown RAL 8019
Sky Blue - RAL 5015
Cobalt Blue - BS 18 E 53
Pastel Blue - RAL 5024
Juniper Green BS12B29
Stone Grey RAL 7030
Goosewing Grey BS10A05
Signal Black RAL 9004
Agate Grey RAL 7038
Moorland Green BS12B21
Ultramarine Blue - RAL 5002
Grey White RAL 9002
Silver - RAL 9006
Copper Brown - RAL 8004
Poppy Red BS04E53
Leaf Green - RAL 6002
Traffic Grey - RAL 7043
Graphite Grey RAL 7024
Signal Blue RAL 5005
Anthracite Grey RAL 7016
Moss Green RAL 6005
Van Dyke Brown BS08B29
Heron - BS 18 B 17
Slate Grey - RAL 7015
Dusty Grey RAL 7037
Quartz Grey - RAl 7039
Light Blue RAL 5012

Factory assembled steel doorset for security for your garage, outbuildings or general use in domestic and commercial applications.

High Security 55mm thick double skinned steel hinged doorset designed to protect your garage and outside buildings. Factory assembled and ready for an easy on site installation. An exceptional external steel doorset for security with options on the design using horizontal and vertical grooves in the door panel.

*  Made to Measure sizes as standard up to 1085mm wide x 2195mm high for the overall door and outer fixing frame dimensions. Larger sizes are available on request.

• Steel sub frame constructed from 1.6mm Magnelis steel with fully adjustable outer frame section to accommodate uneven openings up to  +/- 30mm overall on the vertical legs- 3 fixing frame options available
• Full 10 year guarantee with corrosion resistant Magnelis steel as standard Frame fitted with 4 dog bolt hinges as standard
• Optional infill available to provide U values to between 3.1 and 1.6 (w/m2k)
• 50 standard colours and woodgrain laminate options
• Profiled outer panel design with traditional vertical groove design. Optional horizontal design with spacing options and also available on both sides of door panel.
  Designs to match insulated roller doors and sectional doors.
• Stainless steel lever/lever handles as standard with double euro profile cylinder locking
• Hooply multipoint sashlock as standard
• 15mm standard rebated threshold with 3 other threshold options available
• Window options available in many shapes and sizes - double glazed

This steel doorset is fully factory assembled and delivered with the steel outer fixing frame assmbled and built with the hinges and locking aleady in place.
The door has an adjustable outer frame for the vertical frame leg sections allowing a 15mm adjustment either side to take up out of square openings and ensure the very tightest fit.

10 year anti corrosion on magnelis steel door panel and frame construction.
