Using the most popular and durable size of 77mm, double walled, aluminium, insulated slats, this electric roller garage door is a robust, high quality design and uses a Somfy Rollixo Premium remote control system, complete with safety detection in the bottom leading edge slat on the door. RTS protocol from Somfy for a robust radio control transmission.
This is a premium remote control electric roller garage door as it uses a higher specification wall control panel with auto close facility included if required and courtesy lighting as standard built into the control unit. (For auto close facility additional safety beams required).
* Remote handset Control - 2 Somfy RTS Keygo 4 handsets
* Somfy tubular motor drive as standard (5 year warranty)
* Built in button controls on the wall control panel
* Built in alarm system using the bottom edge sensor as the trigger for any forced opening attempts
* Built in courtesy light on wall control panel with programmable duration for turning off
* Optical safety edge obstacle detection system
* Full Hood Cover for curtain roll included for increased curtain and internal weather protection
- Somfy Motor Drive standard
- Made to Measure size as standard
- Suitable for inside face or inbetween fitting
- 16 Premium colours to choose
GDO ROLL77 Premium Somfy Rollixo Remote Electric Roller Garage Door (16 Premium Colours & Full Hood)
The GDO ROLL77 Premium Edition represents the highest specification in our insulated roller garage door range, combining precision UK engineering with the market-leading Somfy Rollixo Premium RTS control system. Purpose-made to your exact millimetre measurements, this flagship door comes fully equipped with a full powder-coated aluminium box hood and an integrated anti-lift intruder alarm as standard, backed by a comprehensive 5-year Somfy motor and automation warranty.
Somfy Rollixo Premium Control with Built-in Alarm & Courtesy Light
At the heart of this door is the Somfy Rollixo Premium wall-mounted receiver unit, offering advanced security and everyday convenience straight out of the box:
• Integrated Anti-Force Alarm: Uses the bottom safety edge as an active detection sensor when the door is fully closed. If an attempt is made to forcibly lever or jack the curtain up from the ground, the Rollixo unit instantly triggers a piercing 100 dB+ internal alarm to deter the break-in.
• Built-in Timed Courtesy Light: Automatically illuminates your garage interior upon operation, with programmable timer settings to give you safe, hands-free lighting when parking at night.
• Front Panel Push Buttons: Built-in up/down control buttons directly on the wall panel allow quick internal operation without reaching for a handset.
• 2x Somfy Keygo 4 RTS Handsets: Robust, multi-channel 433.42 MHz keyfob transmitters featuring a recessed master button to prevent accidental operation in your pocket.
Full Aluminium Box Hood Included as Standard
Unlike standard open-roll doors, the GDO ROLL77 Premium includes a full 90° powder-coated aluminium box hood at no extra charge. This fully encloses the barrel, motor, and rolled curtain for superior performance and aesthetics:
• Maximum Weather Protection: Shields the mechanical roll from driving rain, dust, debris, and draughts, significantly improving thermal insulation.
• Clean, Finished Interior: Neatly conceals the mechanical barrel and rolled curtain for a professional appearance inside the garage.
• Versatile Installation: Provides the complete weather enclosure required for reveal-fitted (inbetween) or external installations.
Strong, Insulated 77mm Double-Skinned Slats
The door curtain is constructed from 77mm deep, double-skinned aluminium slats injected with a dense CFC-free insulating foam core. Combined with heavy-duty brush-lined aluminium side guides and a thick bottom rubber weatherseal, it provides excellent structural strength, quiet travel, and thermal insulation to keep workshops and adjoining rooms warm and dry.
Fully Compliant Optical Safety Edge
Your safety and peace of mind are guaranteed. An infrared optical safety edge housed within the bottom rubber seal monitors the leading edge during closing. If it detects an obstruction (such as a vehicle bumper, pet, or garden tool), it instantly stops and reverses the door travel, ensuring full compliance with UK safety standards (BS EN 12453 / BS EN 13241-1) for fully automated remote control doors.
Made to Measure in 16 Premium Colour Finishes
Every door is custom manufactured in the UK to your exact dimensions up to 5200mm wide and 2900mm high (Over Guide Width x Guide Height; overall height approx. 3200mm including 300mm endplates and hood enclosure):
• 16 Architectural Colours: Choose from 16 high-quality powder-coated and painted finishes to match your property's windows, doors, and exterior facades.
• Matching Hood & Guides as Standard: The full aluminium box hood and brush-lined side guides are supplied finished in the matching colour as standard for a seamless architectural finish.
• Custom Contrasting Options: If you prefer contrasting hood or guide colours (e.g. White guides with an Anthracite Grey or Chartwell Green curtain), our team can accommodate this on request.
• Heavy-Duty Guide Channels: Doors up to 3000mm wide use 75mm brush-lined guides; doors over 3000mm wide are fitted with heavy-duty 90mm guides for maximum wind-load stability (clear opening width is 180mm less than ordering width).
Internal Emergency Manual Override
In the event of a mains power failure, an internal manual winding handle is included as standard. The handle hooks directly into the Somfy motor eye so you can smoothly wind the door open or closed by hand from inside. For garages without a secondary access door, an optional external low-level manual release lock is available to ensure you can never be locked out.
Why Choose the GDO ROLL77 Premium Somfy Edition?
• Flagship Somfy Rollixo Automation: Industry-leading reliability backed by a comprehensive 5-year warranty.
• Built-in Security Alarm: Instant 100 dB+ acoustic deterrent against forced upward lifting.
• Full Box Hood Included as Standard: Superior draught exclusion and aesthetic cloaking at no extra charge.
• 16 Premium Colour Choices: Complete architectural styling freedom to suit any UK home.
• Direct UK Manufacturing: Built to order by leading UK specialists with full factory backup and technical support.
How to Order Your Made to Measure Door
Ordering your GDO ROLL 77 Premium is straightforward. Measure your garage opening and select the nearest “up to” size from the drop down menu to choose the correct price band.
Then enter your exact required Over Guide Width (OGW) and Guide Height (GH) in millimetres in the ordering boxes. Your door will be manufactured to your precise measurements for a tailored fit.
The GDO ROLL 77 Premium is available up to 5200mm wide and 2900mm guide height. Allow approximately 300mm above the guide height for the curtain roll, endplates and full hood enclosure.

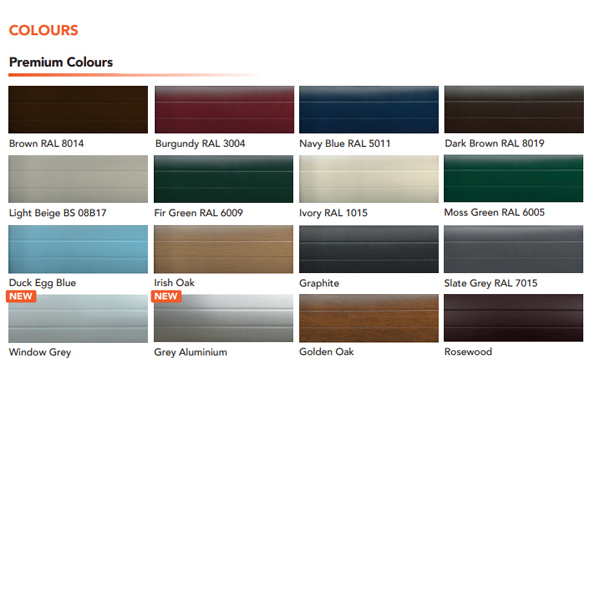

Choose Your Premium Curtain Colour
This 16 Premium Colours model offers a wide choice of high quality powder coated and painted curtain finishes. Choose a colour to complement your windows, front door, cladding or other exterior details.
Looking for White, Black, Anthracite Grey, Agate Grey or Chartwell Green? The same GDO ROLL 77 Premium specification is also available as a separate 5 Signature Colours model.
Full Aluminium Hood Included as Standard
Every GDO ROLL 77 Premium door is supplied with a full powder coated aluminium box hood as standard, at every available door size. There is no separate hood upgrade to add or additional cost for this premium feature.
The full hood completely encloses the curtain roll, steel barrel and operating components, apart from the opening where the curtain travels into the side guides. It creates a smart, fully finished appearance from inside or outside the garage and gives the door a more substantial, high quality look.
Unlike an exposed roller door mechanism, the enclosed hood helps protect the curtain roll and working components from dust, wind blown debris, accidental contact and weather exposure. This makes it particularly valuable for externally fitted doors, garages in exposed locations and installations where the curtain roll is visible.
The full aluminium hood is supplied in the same premium colour as your selected curtain, along with matching heavy duty brush lined side guides. The result is a fully coordinated roller garage door installation with no exposed roll, barrel or unfinished components.
If you would prefer contrasting hood or guide colours, please contact our team before ordering to discuss the available options.
Included Premium Control and Security Package
Every GDO ROLL 77 Premium door is supplied with the Somfy Rollixo Premium RTS control and security package as standard.
- Somfy Rollixo Premium RTS control panel: Wall mounted receiver with built in open and close buttons, diagnostic LED indicators and an automatic timed courtesy light.
- Integrated anti lift alarm: The system monitors the door when closed and sounds an alarm if an attempt is made to force or lift the curtain.
- Two Somfy Keygo 4 RTS remote handsets: Compact rolling code remote controls for convenient operation from your vehicle or driveway.
- Optical safety edge: Integrated into the bottom weather seal. If an obstacle is detected while the door is closing, the door stops and automatically reverses.
- Internal manual override: A winding handle is supplied for manual operation from inside the garage during a power cut.
Motor Side and Manual Override Position
Choose whether the motor, power cable and internal manual override are positioned on the left or right side when viewed from inside the garage. Select the side that best suits your available power supply and access requirements.
If your garage has no separate pedestrian entrance, select the optional external low level manual release. This allows you to access and manually operate the door from outside during a power cut.
Optional External Key Switch
Add an optional hard wired external key switch if you would like a fixed external control point as well as the supplied remote handsets.
The key switch allows you to operate the door using a security key from outside the garage. It is useful where several people need access, where remote handsets may not always be available, or where you prefer an additional fixed driveway control point.
Please note that an external key switch operates the door electrically and does not provide manual access during a power cut. Select the external low level manual release if there is no other access into your garage.
Additional Somfy RTS Controls
The Somfy Rollixo Premium RTS system can be paired with compatible Somfy RTS accessories. Add further Keygo remote handsets, a wireless keypad or compatible controls for additional household users, multiple garage doors or driveway gates.
For multi door installations, additional controls or technical guidance, please call our sales team on 01926 463888 or email enquiries@garagedoorsonline.co.uk.
Construction, Drive & Thermal Insulation
The GDO ROLL77 Premium Edition is constructed from high quality 77mm deep, double-skinned aluminium slats injected with a dense CFC-free insulating polyurethane foam core. Every door is made to measure in the UK as standard, manufactured to your exact millimetre measurements in both width and height for a precision airtight fit.
Powered by a heavy-duty Somfy tubular electric motor backed by a 5-year warranty, this door delivers whisper-quiet, ultra-smooth operation. An internal emergency manual override is built in as standard, operated via a supplied winding handle that hooks into the motor eye. You can specify left or right-hand motor handing when ordering to best suit your internal power supply.
Somfy Rollixo Premium RTS Automation & Built-in Security Alarm
This premium model is equipped with the flagship Somfy Rollixo RTS receiver unit and advanced optical safety system:
• Integrated 100 dB+ Anti-Force Alarm: When the door is fully closed, the bottom safety edge acts as an active security monitor. If an attempt is made to forcibly lever or jack the door upward, the Rollixo unit instantly triggers a loud acoustic alarm to deter intruders.
• Automatic Timed Courtesy Light: Built directly into the Rollixo receiver panel, providing safe, programmable interior illumination upon door operation.
• Integrated Front Panel Push Buttons: Operate the door directly from the wall panel without needing a remote.
• 2x Somfy Keygo 4 RTS Handsets: 4-channel rolling-code keyfobs featuring a recessed master button to prevent accidental operation in pockets.
• Optical Safety Edge: Built-in infrared optical sensors housed within the heavy-duty bottom rubber weatherseal immediately stop and reverse the door on contact with an obstruction (compliant with BS EN 12453 / BS EN 13241-1).
• Anti-Drop Safety Brake: Mechanical safety brake fitted to the steel barrel to physically arrest curtain freefall in the unlikely event of drive failure.
Barrel, Endplates & Headroom Requirements
The curtain rolls around an engineered steel barrel supported on both sides by 300mm x 300mm steel endplates. The 300mm measurement is the headroom required to conceal the roll and hood enclosure. Always allow for approximately 50mm to 110mm of curtain hang-down into the guides when the door is fully raised if drive-through headroom is critical.
Key Hardware Components
Hand crank
|
Lined guide
|
Bottom slat detail
|
Barrel
|
Safety brake
|
Guides, Sizes & Clear Drive-Through Dimensions
Brush-lined extruded aluminium side guide channels are 34mm deep and supplied in either 75mm or 90mm widths depending on door size. The door is ordered using the Over Guide Width (OGW) and Guide Height (GH).
Ordering size: Over Guide Width (OGW) x Guide Height (GH).
Doors up to 3000mm wide (supplied with 75mm wide guides):
• Clear opening width = Ordering width (OGW) less 150mm (75mm each side)
• Clear opening height = Guide height (GH) less approx. 50mm to 110mm (bottom slat hang-down)
Doors over 3000mm wide (supplied with 90mm wide guides):
• Clear opening width = Ordering width (OGW) less 180mm (90mm each side)
• Clear opening height = Guide height (GH) less approx. 50mm to 110mm (bottom slat hang-down)
Maximum Dimensions:
• Maximum ordering width (OGW): 5200mm
• Maximum guide height: 2900mm (overall height approx. 3200mm including 300mm endplates/hood; maximum width at this height is 4600mm)
16 Premium Finished Colours
The GDO ROLL77 Premium curtain is available in a comprehensive palette of 16 high-quality powder-coated and painted finishes, allowing you to closely match your property's exterior joinery, windows, and composite entrance doors.
Full Aluminium Box Hood Included as Standard
This premium model includes a full 90° powder-coated aluminium box hood as standard, fully enclosing the barrel and curtain mechanism to provide maximum weather sealing and an architectural cloaked finish. The full hood and side guides are supplied in the matching colour as standard (contrasting combinations available on request).
Fitting Positions
• Behind the opening (Face Fix): Maximises clear drive-through width and headroom. Highly recommended for larger 4x4s, family cars, and non-square openings.
• Between the opening (Reveal Fix): Ideal where internal headroom or side room is restricted. The included full hood neatly cloaks the roll underneath the lintel.
* External face fitting is fully supported due to the included full hood cover (curtain orientation and motor handing will be reversed).
GDO ROLL77 Installation Guidance & Pre-Fit Checklist
Fitting a GDO ROLL77 roller garage door is a straightforward two-person job for competent DIYers or tradespeople. Because every door is purpose-made to your exact ordering dimensions, taking time to check your opening, levels, and tolerances before drilling will ensure a smooth, trouble-free installation and a quiet, long-lasting door action.
1. Pre-Installation Checklist & Site Preparation
Before unpacking the door components, inspect the structural opening and verify the following:
• Floor Level: A level floor across the full opening is essential for the bottom rubber weatherseal to compress evenly and ensure proper operation of the optical safety edge.
• Headroom Check: Ensure you have a clear 300mm of vertical headroom above the guide height for the 300mm x 300mm endplates and full aluminium box hood.
• Side Room (Face Fix): Ensure you have at least 75mm (or 90mm on doors over 3000mm wide) of solid pier on each side to secure the aluminium guide channels.
• Power Supply: Position a standard 13-amp unswitched fused spur or socket within 1.5 metres of the Somfy Rollixo control unit location on the motor side.
2. Choosing Your Fitting Position
The GDO ROLL77 can be installed in three primary positions:
• Internal Face Fix (Behind the Opening): Recommended. Guides and endplates fit to the inside face of the brickwork piers and lintel. This maximises clear drive-through width and height, preserving the full structural opening for vehicles.
• Reveal Fix (Inbetween the Opening): Used when there is limited internal headroom or sideroom. The guides bolt directly to the internal brickwork reveals and the endplates sit underneath the lintel. The included full hood neatly encloses the roll from the driveway.
• External Face Fix (Outside the Garage): Fitted to the external brickwork where there is zero internal space. The full hood is mandatory, and the motor handing and curtain roll direction are reversed.
3. Step-by-Step Installation Summary
Step 1 — Assemble the Framework: Insert the steel endplate spigots into the top of each aluminium side guide channel on a clean, flat floor to form a rigid 'U-frame'. Slide the top and rear sections of the aluminium full hood into the endplate channels.
Step 2 — Position and Level: Lift the assembled framework into position against the opening. Use a spirit level to verify that both side guides are perfectly plumb and the endplates are completely level across the top. Secure the guides using appropriate heavy-duty masonry fixings at approx. 500mm centres.
Step 3 — Mount the Barrel & Motor: Fit the tubular motor into the drive endplate and mount the steel barrel and anti-drop safety brake onto the dummy endplate. Ensure the barrel turns freely and lock the safety clips in place.
Step 4 — Feed and Lock the Curtain: With the barrel held in position, feed the insulated aluminium curtain carefully down into the brush-lined guides. Attach the top slat to the barrel using the high-security anti-lift locking straps, spacing them evenly across the barrel.
Step 5 — Mount the Rollixo Panel & Wire: Mount the Somfy Rollixo receiver panel to the internal wall at approx. chest height. Connect the motor cable, bottom safety edge transmitter, and mains power following the clear wiring diagram provided.
Step 6 — Set Limits & Test Safety Edge: Use the progressive adjustment push-buttons on the Somfy motor or Rollixo panel to set the top and bottom stop limits. Test the bottom optical safety edge to confirm the door stops and reverses instantly upon meeting resistance.
Step 7 — Fit the Hood Cover Fascia: Clip and fasten the front fascia panel of the full aluminium hood to complete the weather-sealed enclosure.
4. Critical Fitting Tolerances & Tips
• Do Not Over-Tighten Top Straps: When attaching the top locking springs to the barrel, ensure the curtain hangs straight without pulling the top slat out of alignment.
• Guide Alignment: Check that the measurement across the bottom of the guides matches the measurement across the top exactly to prevent curtain binding.
• Emergency Override Testing: Always test the manual hand winding handle before finishing the install to ensure smooth mechanical operation in the event of a power cut.
• Garages with No Secondary Door: If there is no pedestrian side door, test the external low-level manual release lock mechanism thoroughly to confirm key disengagement from outside.
5. Technical Support & Helpline
Every GDO ROLL77 door is supplied with a comprehensive printed installation manual and Somfy wiring schematics. If you or your installer encounter any questions during site preparation or setup, our UK technical support team is on hand to help:
• Phone Support: 01926 463888 (Mon–Fri 8:30am – 5:00pm)
• Email Technical Desk: enquiries@garagedoorsonline.co.uk
Warranty Terms & Conditions
Ordering Size is the Over Guide Width (OGW) x Guide Height (GH).
Doors up to 3000mm wide have 75mm wide guides
Ordering width = Opening size + 150mm*
Doors over 3000mm wide have 90mm wide guides
Ordering width = Opening size + 180mm*
* These measurements are correct for behind fit installations, please contact us for guidance inbetween fit installations.
Clear opening height = guide height - 110mm (to allow for the bottom slat hand-down into the guide).
Overall Height is the guide height plus the endplate size at 300mm
