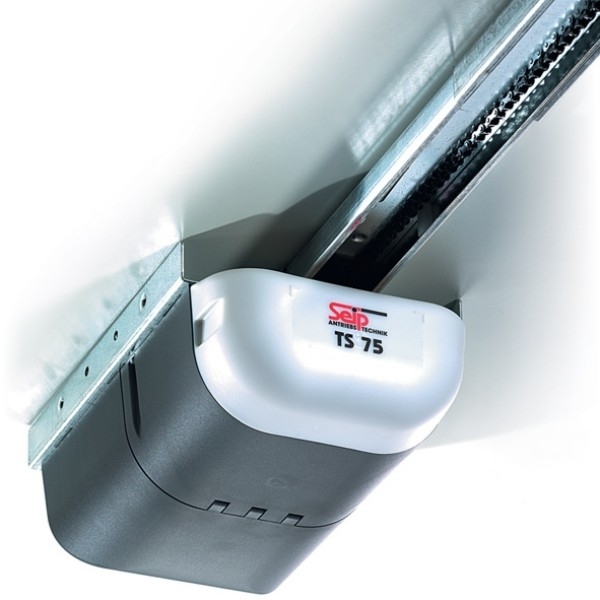

Seip TS100 Operator N/A Electric Door Operators
Seip
Seip Look at our customer reviews on trustpliot
Electric Door Operators N/A GEAR TYPE: Remote Control Operators what's this?

Seip products are no longer available. See Hormann Operators for alternatives.



Save energy by using a Seip door operator. Power consumption is only 2.0 watts in stand-by mode.

All models are equipped with an automatic chain tensioning system, keeping the chain tensioned continuously. The C-rail profile protects the chain from dust - no expensive maintenance calls.

Please enter exact size
Free Shipping to UK Mainland
Price On Application

Quick pre-assembly system
Automatic chain tensioning
Totally maintenance free
Automatic force measurement as to EN 12453
EN 12445 compliant
All operators CE-compliant
Soft-Start and Soft-Stop
Very quiet
Simple limit switch adjustment

Advanced Garage Door Operator with Soft-Start and Soft-Stop for:
> Up-and-Over Doors
> Sectional Doors
> Side Hinged Garage Doors*
   *(additional adaptor required - at extra cost, please enquire for more details)
> Canopy Garage Doors


Force-Setting for Operation automatic
Max. Pulling Force 100 kg
Soft-Stop and Soft-Start yes
Length of Soft-Stop fixed
Motor 24VDC, low noise
Running Speed 14,5 cm/sec.
Speed in Soft-Mode 8 cm/sec.
Internal Light 230VAC, max. 40 watts
Adjustable Light Duration 80 to 240 sec.
Cuty Cycle 80%
Power Consumption in Stand By 2.3 watts
Transformer 230VAC, 24V DC
Pre-Warning Light adjustable
Automation of side hinged doors adjustable
Stop on safety beam in closing direction adjustable
Net Running Length 2,640 mm
Max. Running Length with Extension 4,150 mm
Overall Length 3,215 mm
Height Motor Head 170 mm
Length Motor Head 360 mm
Width Motor Head 260 mm
Minimum Space above the Door 35 mm
Weight inc. Packaging 23 kg

Installation Instructions can be found under related downloads.

5 year guarantee
