8th July 2021

Coming Soon to GarageDoorsOnline

COMING SOON TO GARAGEDOORSONLINE

The Teckentrup CarTeck SLX Vision Sectional Garage Door!

For a panoramic presence look no further than the CarTeck SLX Vision. The doors employ the same market-leading sectional lifting gear used on the standard CarTeck range with its concealed lifting springs, but with added wow-factor.

These automated doors have full width vision panels made from 40mm hollow aluminium profiles, with 20mm scratch resistant, polymer double glazing in a choice of six vision styles.

What performance can i expect?

As part of the CE marking process, each product must have its performance provided for a defined set of characteristics to allow fair comparison between products from different manufacturers.

Other characteristics can also be included, if relevant to a door’s performance. The following tables show the performance characteristics of CarTeck SLX Vision and GSA Vision sectional garage doors.

SLX VISION PERFORMANCE CHARACTERISTIC

RATING

Resistance to Windload EN 12424

Class 2

Watertightness EN12425 Class 2
Air Permeability EN 12426 Class 2
Thermal Transmittance EN 13241 - 1 3.5 W/m²k
Operating Forces (hand Operated)  EN 12604 150 N

What will the door look like?

Full width glazing up to 3250mm wide (no mullions)

Full width glazing up to 3250mm wide (no mullions)

Single mullion over 3250mm wide, maximum width 4000mm

Single mullion over 3250mm wide, maximum width 4000mm

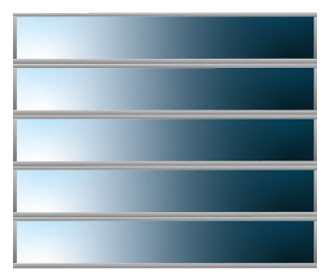

The number of sections is dependent on door height and is shown below:

4 Glazing Panels

4 sections Doors up to 2280mm high

5 Glazing Panels

5 sections Doors up to 2835mm high

6 Glazing Panels

6 sections Doors up to 3000mm high

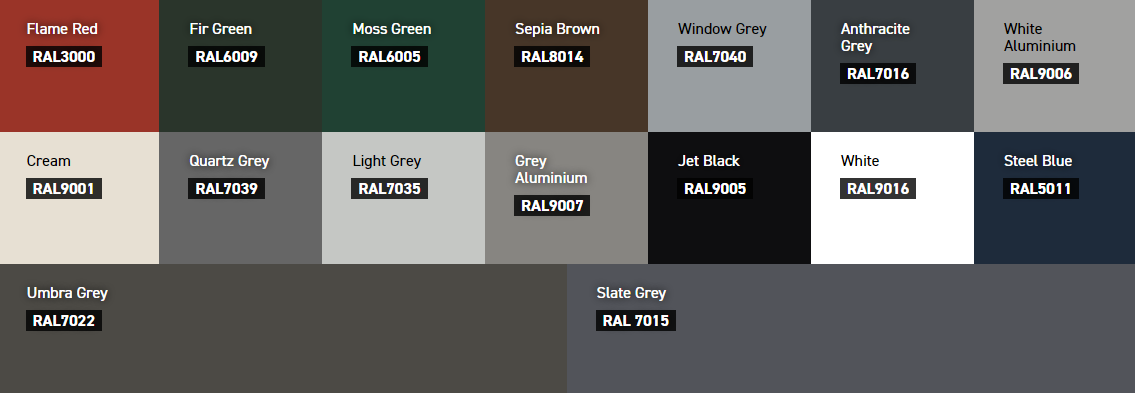

Colour Options

Customise your door by selecting a colour!

Every door is available in a selection of colours as shown in the grid below.

SLX Colours

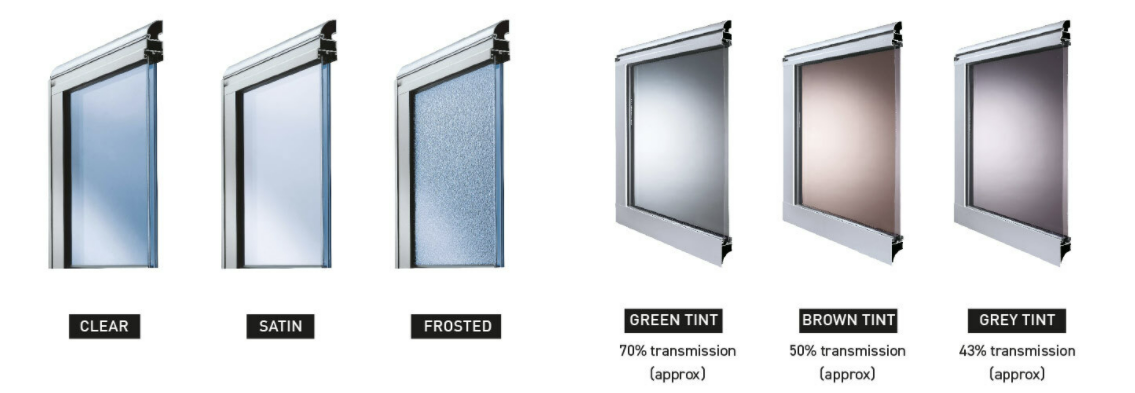

Vision Options

Choose from 6 options for added privacy or shading

Windows are made from double pane scratch-resistant polymer.

Vision Options
