Carteck XL Solid Insulated Sectional Garage Door

The Carteck XL Solid insulated sectional garage door is the ideal choice when you want a big, bold garage door that feels secure, keeps the weather out and looks effortlessly clean and modern. With its smooth, unbroken Solid design and 40 mm thick insulated steel panels, it turns a very large opening into a strong, stable and highly insulated barrier, without the industrial look you might expect from a door of this size.

Strong, solid and built to feel secure

The Solid design is exactly what it sounds like – wide, flat panels with no ribs or patterning, giving a calm, minimalist look on the outside and a very robust structure underneath. The double‑skinned steel construction and uprated XL hardware work together to create a door that feels firm and secure every time it opens and closes.

• 40 mm thick, double‑skinned steel panels with a high‑density foam core create a rigid door leaf that resists flexing, even at XL widths.
• Heavy‑duty roller brackets, reinforced panel profiles and galvanised tracks are engineered specifically for the weight and span of extra‑wide XL doors.
• The smooth Solid face makes the door harder to attack at obvious weak points compared with panelled or framed designs, supporting a higher sense of security.

If you store valuable vehicles, tools or equipment in your garage, the XL Solid design gives you the reassurance of a door that looks and feels like a proper security upgrade.

High insulation performance on a massive opening

On a door this size, insulation can transform how you use the space. The Carteck XL Solid uses the same proven 40 mm insulated panel technology found across the Carteck sectional range, scaled up for extra‑large openings.

• The 40 mm insulated panel offers excellent thermal performance, with a very low U‑value for the panel itself (the lower the number, the better the insulation).
• As a complete fitted door, a typical Carteck insulated sectional door of standard size can achieve overall U‑values around 1.3–1.4 W/m²K, including joints and seals.
• Even when scaled up to very large sizes, XL doors are engineered to deliver class‑leading thermal performance compared with many other garage door types, helping to keep the cold out and usable warmth in.

For attached garages, hobby spaces, gyms or workshops, those figures mean a noticeably more comfortable environment and reduced cold draughts compared with older single‑skin or basic steel doors.

Designed to keep the elements at bay

Insulation is only part of the story; the XL Solid door also focuses on keeping out wind, rain and draughts across its full width and height.

• All‑round weather sealing – including side seals, lintel seal and inter‑panel seals – helps block cold air, dust and water ingress.
• A rot‑proof EPDM rubber bottom seal sits against the floor and compensates for minor unevenness, improving the barrier at ground level.
• The system is designed and tested for thermal transmittance, wind load, air permeability and watertightness, so you are getting a high‑performance door rather than just a basic closure.

The result is a large garage door that not only looks neat and solid from the outside, but also actively helps to keep your garage drier, less draughty and less dusty.

Smooth, automatic operation with secure control

For everyday use, the Carteck XL Solid is supplied as an automatic sectional door as standard, so you get the strength and insulation benefits without sacrificing convenience.

• A matched high‑output rail drive motor lifts and lowers the heavy, insulated door smoothly, with no need to wrestle with the weight by hand.
• Built‑in force monitoring and auto‑reverse functions help protect people, vehicles and property by stopping and reversing if an obstruction is detected.
• Remote controls, keypads and internal push buttons make access secure and effortless, so you can keep the door fully closed and locked whenever you are not using the garage.

Because the automatic system is designed around the weight and balance of the XL Solid door, you retain a reassuringly strong, secure door that is still easy to live with day to day.

Clean, minimalist styling with flexible sizing

The Solid design makes a real visual statement – particularly on modern homes and contemporary refurbishments where a simple, uninterrupted finish ties in with other architectural elements.

• Smooth, rib‑free face for a minimalist, almost “panel‑like” look rather than a traditional garage door feel.
• Available in a wide range of colours, including classic white, popular RAL shades and wood‑effect finishes, so you can tie the garage door into your windows, doors and cladding.
• Offered in a selection of standard sizes and can also be manufactured made‑to‑measure on application to suit specific openings – contact GarageDoorsOnline directly for tailored sizing, advice and pricing.

If you want a large sectional garage door that leads with insulation and security but still looks sleek and understated, the Carteck XL Solid insulated sectional garage door is designed to tick every box.

Options to Configure Your Door

Carteck XL insulated sectional doors are supplied as fully automatic doors as standard, so choosing your specification is mainly about the final appearance and how you would like to control the door.

• Door colour

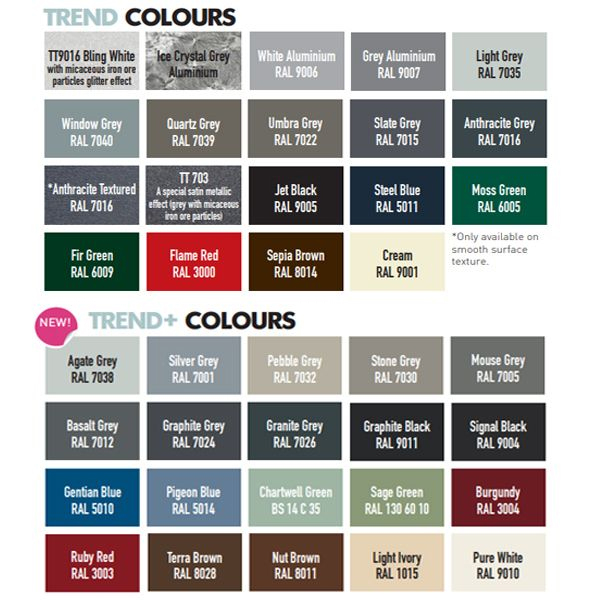

  GarageDoorsOnline offer a choice of 44 beautiful factory finished colours for this door. Many colours are available at no extra cost, with a selection of special finishes and effects available at an additional charge.
• Panel surface textures
  Choose the external surface texture of the door panels to suit your property. There are four options available: Smooth, Woodgrain, Stucco and Micro profile.
• Frame finish
  The steel fixing frame legs and head section are supplied in white as standard. If you are fitting the door between your brickwork opening you can upgrade to have the frame factory finished in a colour to closely match the door panels for a more integrated look.
• Emergency external manual release
  If your garage door is the only access into your garage, we strongly recommend adding an external emergency manual release so that you can still open the door from outside in the event of a power cut.
• Control and access options
  As standard, the electric operator is supplied with two remote control handsets and an internal control button. There are many additional control options available, including alternative wall controls and access systems, so please contact us to discuss your requirements if the standard remote handsets are not sufficient for your needs.

Specifications – Carteck XL Solid Insulated Sectional Garage Door

Size range

• Maximum width (XL range): up to 6250 mm.
• Typical maximum height: up to around 2500 mm (project and configuration dependent).
• Designed for large single openings, wide double garages and multi‑vehicle garages.
• Available in a range of standard sizes.
• Made‑to‑measure XL Solid doors can also be manufactured on application – contact GarageDoorsOnline directly for tailored sizing and advice.

Door construction

• Door type: automatic insulated sectional garage door.
• Design: Solid (smooth, unribbed) wide panel sections for a clean, minimalist appearance.
• Leaf construction: double‑skinned steel sections with “foamed in place” polyurethane core.
• Panel thickness: 40 mm insulated sections.
• Panel joints: interlocking, finger‑safe joints with integrated seals.
• Frame: galvanised steel frame legs; optional colour‑matched frame and header cladding.

Thermal performance and weather protection

• Insulated panel U‑value (panel only): approx. 0.56 W/m²K.
• Typical complete fitted door U‑value on standard sizes: approx. 1.3–1.5 W/m²K (size and installation dependent).
• 40 mm insulation helps reduce heat loss and improve comfort in attached or part‑habitable garages.
• All‑round soft rubber sealing – vertical frame seals, top header seal and seals between sections.
• Bottom seal: rot‑proof EPDM rubber floor seal to help accommodate minor floor unevenness.
• Engineered for good performance in air permeability, wind load and resistance to driving rain.

Lifting gear and hardware

• Spring system: rear‑mounted torsion springs as standard on XL models.
• Hardware: heavy‑duty roller brackets and reinforced panel profiles for XL door weights.
• Rollers: ball‑bearing rollers running in galvanised steel tracks for smooth, low‑noise operation.
• Guides and tracks: vertical guides and horizontal ceiling‑mounted tracks for true vertical lift.
• Finger‑safe design at panel joints to help prevent trapping during operation.

Electric operation

• Operation: supplied as an automatic sectional garage door as standard.
• Motor type: high‑output rail drive operator (matched to XL size and weight).
• Power requirement: standard 13 A single‑phase supply.
• Controls: typically supplied with hand transmitters; optional internal push buttons and external keypads (depending on package selected).
• Safety: integrated force monitoring and auto‑reverse function if an obstruction is detected.

Safety and standards

• Finger‑trap protection to inside and outside of panel joints.
• Balanced spring system for controlled, predictable movement through the full travel.
• Designed to comply with current European standards for powered garage doors (including EN 13241) when installed and commissioned correctly.

Finishes, colours and options

• Surface finish: typically smooth “Solid” panels; other textures may be available depending on specification.
• Colours: classic white and a wide choice of standard RAL colours, Trend colours and selected wood‑effect finishes.
• Glazing: generally supplied as a solid, unglazed design; window options are available on other XL models if vision panels are required.

Installation requirements

• Fitting positions: can be installed behind the reveal or between the reveals (subject to structural suitability and clearances).
• Headroom: minimum headroom required above the opening to accommodate rear‑mounted torsion spring shaft and horizontal tracks (varies by size and configuration).
• Sideroom: minimum clear sideroom required each side for frame legs, fixings and motor hardware.
• Substrate: suitable for fixing to typical garage structures such as masonry, concrete, blockwork and timber framing.

These specification details provide a general guide for the Carteck XL Solid insulated sectional garage door; exact figures, clearances and options may vary slightly with door size, configuration and chosen operator package.

Installation Guidance – Carteck XL Solid Insulated Sectional Garage Door

Supplied as standard with a rear mounted torsion spring mechanism and electric motor drive. The information below provides general installation guidance and key points to consider when preparing the opening and planning the fit.

General installation requirements

• The door must be installed by a competent installer familiar with sectional garage door systems.
• The supporting structure (walls, lintel and ceiling) must be sound, level and capable of taking the fixing loads.
• The floor at the threshold should be as level as possible to allow the bottom seal to sit correctly and provide an effective weather barrier.
• All measurements should be checked carefully before ordering, including clear opening width, clear opening height, headroom and sideroom.

Headroom and sideroom

• Rear mounted torsion spring gear is fitted above the opening on the inside face of the garage.
• A minimum clear headroom is required to accommodate the spring shaft, cable drums and horizontal tracks (exact dimensions depend on door size and configuration).
• Sideroom is required on both sides of the opening for the frame legs, track brackets and fixings.

Rear‑mounted torsion spring system

• The torsion spring shaft is installed along the rear of the lintel line, inside the garage, supported by secure brackets fixed to the structure.
• Springs are pre selected and set to match the weight and size of the XL door, ensuring balanced lifting and controlled movement.
• Lift cables run from the bottom corner brackets up to the cable drums on the spring shaft, providing smooth, even lifting across the full width of the door.
• Correct spring tensioning is essential for safe and reliable operation and must only be carried out using the appropriate tools and methods.

Track and frame installation

• Vertical frame legs are fixed either behind or between the reveals, depending on the chosen installation position and structure.
• Horizontal tracks are aligned with the vertical guides and secured to the ceiling or roof structure using suitable hangers and brackets.
• Tracks must be level, parallel and correctly positioned to ensure the door moves freely without binding or excessive play.
• All fixings should be checked and tightened to the recommended levels before commissioning the door.

Electric motor drive – standard

• The XL door is supplied as standard with an electric rail drive operator matched to the size and weight of the door.
• The motor unit is usually mounted to the garage ceiling, with the drive rail aligned centrally to the door and connected to the top panel via a carriage arm.
• A suitable 13 A single‑phase power supply is required, installed in accordance with current electrical regulations.
• Limit settings for open and closed positions are adjusted during commissioning so the door stops accurately at both ends of travel.
• Safety features such as force monitoring and auto‑reverse must be tested after installation to confirm correct operation.

Alignment, checks and commissioning

• Before first powered operation, the door should be tested manually to confirm smooth, balanced movement without catching or rubbing.
• Panel joints, hinges and rollers should be checked to ensure they are correctly seated in the tracks and free from obstruction.
• Once the motor is connected, open and close cycles should be run to fine‑tune limits and verify smooth acceleration and stopping.
• Safety stop and reverse functions must be tested using an appropriate obstruction to ensure compliance with safety requirements.

Ongoing maintenance after installation

• Fixings, brackets and track supports should be visually checked at regular intervals for tightness and signs of wear.
• Rollers, hinges and moving parts may require periodic lubrication with a suitable light oil or manufacturer‑approved product.
• The door surface and seals should be kept clean to maintain smooth operation and protect the finish.
• Any adjustments to the torsion spring system or major components should only be carried out by a trained installer or service engineer.

Because of the size and weight of the Carteck XL sectional door, professional installation is strongly recommended to ensure correct operation, full safety performance and long‑term reliability.

All Carteck insulated sectional garage doors supplied by GarageDoorsOnline are covered by Teckentrup’s 7 Point Warranty, giving you long term protection on key components when the door is installed and used correctly in normal domestic conditions.

• 2 year manufacturer’s guarantee on polymer and aluminium window units.
• 5 year manufacturer’s guarantee on SLX and GSA Vision windows, rollers, hinges, cable pulleys, cables and standard springs (up to 5 door open and close cycles per day, 2 year on Super Size doors).
• 10 year manufacturer’s guarantee on door panels against rust penetration from inside to outside.
• 10 year manufacturer’s guarantee against door panel separation of steel from foam.
• 10 year manufacturer’s guarantee on floor seal, intermediate seals, side seals and lintel seal against rotting.
• 10 year manufacturer’s guarantee on material and manufacturing defects of all non moving frame parts that make them unusable or seriously impair their function.
• 3 year manufacturer’s guarantee on coastal paint finishes (coastal paint upgrade only), covering peeling and blistering on the external face of the panels, excluding normal colour fading, staining or bleed from hardware.

Warranty cover applies only to qualifying Carteck sectional garage doors purchased in the United Kingdom via the authorised supply route and used within the stated duty cycle limits. A fully completed warranty certificate and dated sales receipt are required as proof of warranty; costs for removal, re installation, freight and postage are not included. For full terms, exclusions and maintenance requirements, please refer to the Teckentrup warranty document or contact GarageDoorsOnline for guidance before ordering.
