GDO Steel Side Hinged Garage Doors
The GDO Steel Side Hinged Doors are a stylish, low maintenance and easy to operate solution for your garage.
The long lasting powdercoated paint finish requires no further treatment. There are 12 attractive powder coated finishes available, meaning there is a finish to suit every property. The smooth powder coated finish on the door and frame can simply be wiped clean, and does not require re-painting.
For the easiest installation the steel sub frame is fitted as standard. The doors have steel bracing to the back, along with twin latches on the active leaf and shoot bolts on the inactive leaf, for peace of mind for you and your family.
Click on the doors below to view in our online shop:
The GDO 2025 range of steel side hinged garage doors offers 5 very distinct door range options for varying performance, design and specification levels. The popularity of side hinged garage doors has risen considerably as more people use their garage as an extra room to the house.
We have a garage door for every garage, uninsulated or insulated.
GarageDoorsOnline have 2 door ranges offering single skin, pressed steel models and 3 ranges offering double skinned, steel, insulated models for anyone looking for high performance and a very comfortable garage inside, along with higher levels of security too.
* GDO Doors are Made to Measure as standard (some standard size models are available in UK standard sizes)
* All Doors have a factory fitted steel or aluminium box section fixing sub frame included.
* Options for a 50/50 or 1/3rd/ and 2/3rd door leaf arrangement to suit your garage.
* Options for various windows, glazing types, locking, handles, colours and smart access.
* Threshold options at varying sizes and specifications
* Powdercoat colour finishes in modern and traditional colour options
* Matching pedestrian side access door options
Our basic range of side hinged steel garage doors. Uninsulated door panels and constructed using single skin pressed steel door panels in a simple box section steel fixing frame.
Internal steel bracing and cable driven latch locking to the top and bottom of the leading door leaf, with spring loaded shoot bolts internally for the slave door leaf.
The standard outside handle is a rounded knob with T handle internal handle and locking with flip switch. Door hinges are high grade, corrosion resistant, butt style, in a silver finish.
Choose door panel arrangements as 50/50 or 1/3rd and 2/3rd door leaf split on most door models to suit your garage layout and your own requirements. A smaller 1/3rd width pedestrian access door is perfect for any garage which is entered frequently on foot.
15 door designs to choose from with and without windows and some windows are mock windows only so please check when ordering. Glazing can be clear, stippled or mock effect and is perspex as standard
32 powdercoated colour options, applied to both the door leaves and the steel sub frame.
All the doors are made to measure as standard for the perfect fit although we do offer some standard size doors to fit the most popular UK standard single garage sizes.
Matching pedestrian side access doors available in the same build specification.
 |
 |
 |
 |
 |
| Inside of the door with steel bracing | Panel treshold | Top bolt lock | Standard doors have top and bottom cable operated lock latches to the active leaf | Inactive leaf features shoot bolts |
Uninsulated reinforced steel side hinged doors with a high standard specification and components included from the insulated door ranges. Aluminium fixing sub frame is manufactured, fitted and included as standard for the best overall side hinged, preassembled easy to fit package.
Double weatherseals to the door leaf and fixing sub frame for the best sealing possible.
Concealed shoot bolts to the top and bottom of the inactive slave door leaf hold this door securely in place, with adjustable keeps for precision fitting.
Standard external black 3D hinges allow easy adjustment of the door leaves if required in any direction for a perfect door leaf alignment.
Lever handle as standard in black finish with latch and deadlock. Designs with fixed stainless steel vertical handle and cylinder key locking externally.
11 designs to choose from with 3 door models including windows in the design. Clear or stippled glazing is offered and the glazing is real glass.
32 powdercoated colour options which are for both the door leaves and the steel sub frame.
All the doors are Made to Measure as standard for the perfect fit.
Matching pedestrian side access doors available in the same build specification.
 |
 |
 |
 |
 |
| Inside of the door with steel bracing | Double seals to the door leaf and frame | A gasket between door leaf frame and panel helps seal the door | Robust black door handle with latch and deadlock | Concealed shoot bolts for a security |

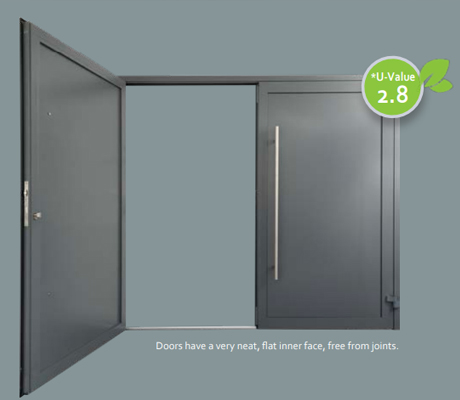

20mm thick, double skinned, steel, insulated hinged garage doors with a high standard specification, providing insulation, security and ease of use, with options for 1/3rd and 2/3rd split when regular pedestrian access to the garage if required.
Double seals to the door leaf and aluminium fixing sub frame for the best weathersealing possible. Aluminium fixing sub frame is included as standard on all doors
Door stays fitted as standard.
Bottom box section profile threshold as standard.
Concealed shoot bolts to the top and bottom of the inactive door leaf hold this door securely in place with adjustable keeps for precision fitting.
Standard black external 3D hinges allow easy adjustment of the door leaves if required in any direction for perfect door leaf alignment.
Lever handle as standard in silver finish with latch and deadlock. 1 star security anti snap euro profile cylinder. Internal thumbturn standard for easy operation.
Door designs with fixed stainless steel handle have a key cylinder access externally only.
This door has a U value of 2.8W/m2K, making it perfect for anyone using their garage for another room/workshop/gym/office, etc.
15 designs to choose from with 8 doors including windows in their design. Clear or stippled glazing is offered and the glazing is real glass.
32 powdercoated colour options which are for both the door leaves and the steel sub frame.
All the doors are Made to Measure as standard for the perfect fit.
Matching pedestrian side access doors available in the same build specification.
 |
 |
 |
 |
 |
| Double seals to the door leaf and frame | Robust handle, latch and deadlock as standard | Colour matched hinges, adjustable in 3 directions | Box profile threshold | Concealed shoot bolts at the top and bottom |

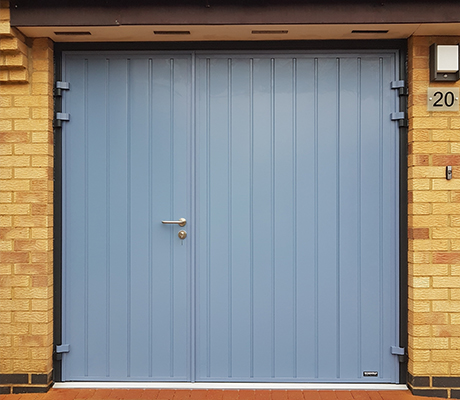

40mm double skinned, steel, insulated side hinged garage doors with possibly the most beautiful design otpions of all our hinged doors.
Manufactured by Teckentrup UK for Garage Doors Online Ltd, these insulated doors have a 10 year manufacturers guarantee with a 2 year warranty on some limited components.
The door panels are constructed from the renowned insulated panels from leading German manufacturer Teckentrup and have a long proven record of being a tough, durable and reliable door panel, resisting the harsh external environment of the UK weather day in and day out.
The high quality powder coat finishing is exceptional on all the doors.
Your choice of external surface finish.
Choose your external door surface finish at no extra cost!! (powdercoat finishes only and Georgian design only available in woodgrain finish)
* Smooth and silky plain surface finish for the most modern aesthetics.
* Woodgrain textured finish for a more practical and rustic feel to the doors.
* Stucco finish for a more industrial look and feel
* Micro Profile for something very different
All 40mm Luxe side hinged doors are Made to Measure as standard for the perfect fit to your garage. Up to 2500mm wide and 2320mm high
This door has a U value of 2.2 W/m2K as tested as a complete doorsets.
We offer the 40mm Luxe doors in some limited standard sizes for the most popular sizes and in the popular styles and colours and with a faster delivery service too.
The majority of the doors are purpose made and available in a range of various colour - modern and heritage colours.
Standard Features:
• Stainless steel handle and rose to the active door leaf
• Concealed hinges which are adjustable and optimal for security
• Handle and Thumb turn to the inside for easy and convenient unlocking and exit
• Easy-latch concealed shoot bolts to the top and bottom of the inactive leaf
• Aluminium strip threshold with blade seal to the bottom of each door leaf
• Each leaf is fitted with a easy-action friction door stay to hold the door leaf open
• The inside of the door has a frame and panel section joints that match the colour of front face of the door, with a practical grey white stucco texture (RAL 9002) to the back of each panel section
Greater security is guaranteed with the optional 3 point locking system offered. This provides the deadlock and then 2 further hook locking points high and low on the door leaf.
Windows
Scratch-resistant Polymer double glazed windows in attractive designs allow natural light into your garage.
Each style is available with clear, frosted or satin glazing. The window units are fitted with a polyurethane frame that is coloured to match or compliment the panel colour of the door.
11 door models to choose from, 5 with windows included in the design and 2 doors with fixed long stainless steel pull handle as standard.
 |
 |
 |
 |
 |
| Inside of door | Stainless steel handles and security locking | Spring dampened door stay | Flush bolt security | Standard lipped threshold |

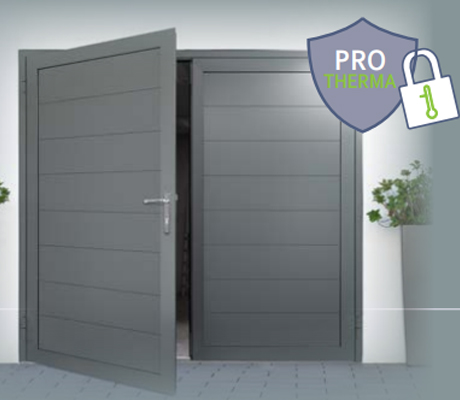

51mm double skinned, steel, insulated side hinged garage doors, with the highest levels of insulation and high standard specification all round.
Robust lever handle, latch and deadlock as standard with internal thumb turn operation and lever handle. D handle model options with ball catch and deadlock.
Optional smart remote access handle with fingerprint recognition and key card access included.
No keys are required and door can be unlocked via a smartphone app if you need to allow a one time access for deliveries or other purposes.
Concealed shoot bolts to the top and bottom of the inactive door leaf with adjustable keep and extra long throw bolts for added security.
Door stays fitted as standard.
3 point locking with mortice and twin hook locks is standard on the Pro Therma door range.
3 star security anti snap euro profile cylinder locking with security keys.
Double seals to the door leaf and frame for maximum weather protection and prevention of dust and leaves into the garage.
3D external hinges, adjustable in 3 directions for easy door leaf alignment.
Thermally broken threshold with ramped design for enhanced access and efficiency in sealing.
A level floor is required for maximum effectiveness of any threshold.
This door has a U value of 1.4W/m2K, making it perfect for anyone using their garage for another room, or of course wanting to treat their vehicle inside with the upmost care.
15 designs to choose from with 8 doors with windows in the design. Clear or stippled glazing is offered and the glazing is real glass.
32 powdercoated colour options which are for both the door leaves and the steel sub frame.
All the doors are Made to Measure as standard for the perfect fit.
Matching pedestrian side access doors available in the same build specification
 |
 |
 |
 |
 |
| Three point locking with mortice and twin hook locks | Slimline 3D hinges adjustable in 3 planes | Robust handle, latch and deadlock | Concealed shoot bolts at the top and bottom | Polyisocyanurate thermal core for class-leading insunatilation with a thermally broken treshold, frame and door leaf |
|
The 50mm steel sub frame is white as standard but can be ordered to suit the optional colours available. The side hinged doors are supplied with a standard black handle and internal lock handle. Side hinged doors have high grade corrosion protected hinges for smooth operation and elimination of leaf “sag”. All doors feature a strong sub-chassis with bracing plates to ensure rigidity of the door panel. Standard doors have top and bottom cable operated lock latches to the active leaf and shoot bolts to the inactive leaf for dependable security. |
