Carteck Insulated Side Hinged Doors | Carteck Steel Double Skinned Insulated Side Hinged Garage Doors

Carteck Insulated Side Hinged Doors

Carteck Garage Doors

Side hinged garage doors are the ideal choice for quick, easy pedestrian access to your garage. They remain one of the most popular door types in the UK, and increasingly so as more homeowners convert their garage into a home gym, office, workshop, hobby room or utility space rather than simply parking a car. CarTeck Side Hinged Garage Doors represent the next generation of insulated side hinged garage doors, combining 40mm double-skinned insulated steel panels, precision engineered aluminium frames, and a superb range of contemporary and traditional designs that suit any property style.

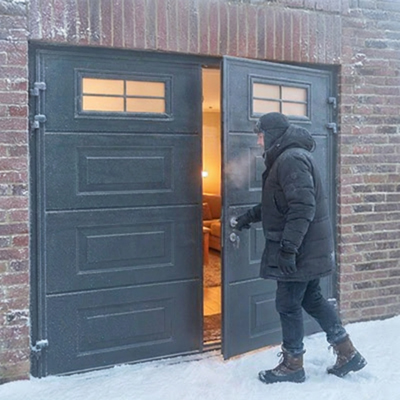

Carteck Standard Ribbed insulated steel door with vertical windows

Carteck Traditional Solid Ribbed insulated steel door with windows

Carteck Centre Ribbed insulated steel door

10 Reasons CarTeck Side Hinged Garage Doors Stand Apart

There are other brands of side hinged garage door available, but here are 10 things that set CarTeck Side Hinged Garage Doors apart from the crowd.

Carteck quality that really is a cut above the rest

Quality that really is a cut above the rest

CarTeck Side Hinged Garage Doors are built to an exacting standard. Place a CarTeck alongside any competitor and the difference is immediately apparent. The finish is visibly superior, with high grade coatings applied to precision engineered components, assembled with a craftsman's attention to detail. Traditional side hinged doors are made from basic profiled steel sections that simply do not compare to the evolutionary leap that is a CarTeck Side Hinged Garage Door.

The doors are light and effortless in daily use, yet close with a reassuringly solid clunk. The 40mm thick double-walled steel panel sections, filled with rigid polymer foam and combined with hollow section aluminium profiles, create a door that is genuinely strong and rigid from the first day of installation to many years beyond. Most conventional side hinged doors are single thickness with significant flex, closing with a rattle and a clang rather than the satisfying solidity of a CarTeck.

The door frame carries a bulb seal to the top and sides, and each door leaf has its own seal to the top and sides. This creates a highly effective double seal at the top and both sides of the door, significantly reducing draughts, water ingress, and light bleed. The threshold includes a bulb seal against which the door leaves close, providing weather protection at the base, along with a thermal break that reduces heat transfer between the garage interior and the outside.

It is worth noting that CarTeck Side Hinged Doors are not completely hermetically sealed. In extreme weather conditions, specifically strong directional driving rain or pooling water at the base, some minimal ingress may occur. However, with a correctly fitted door and a well-prepared opening, this should be minimal. CarTeck Side Hinged Garage Doors are a significantly more effective barrier against the elements than any conventional side hinged door with its typical draughty gaps and limited sealing.

The edge of the inactive leaf carries lever-operated shoot bolts at the top and bottom that engage into adjustable keeps in the frame head and threshold. These adjustable keeps hold the door leaf firmly against the seals and are easily realigned if seals compress over time, keeping the leaf rattle-free throughout the life of the door. The shoot bolts are completely concealed and effortless to operate, a world away from the ugly, difficult spring-loaded surface-mounted bolts or unsightly cable-operated latches found on lesser doors.

The hinges are discreet and colour-matched to the door and frame for a seamless, professional look. Over time, all side hinged doors can settle, but with traditional doors the fixed hinges have no ability for adjustment, meaning a poor fit can only get worse. CarTeck hinges are fully adjustable in three dimensions, ensuring a perfect fit at installation and easy realignment over the years, should it ever be required.

6. Stays that perform and look neat and tidy

No dangling cords or clunky release mechanisms. CarTeck spring-loaded door stays are neat, clever, and effortless. Simply push out on the door leaf to release from the hold-open position and close the door. A word of caution: door stays should never be used in windy conditions or when the door is to be left unattended. Even a modest breeze can turn an open door leaf into a sail, resulting in damage to both the door and the stay.

The interior of a CarTeck Side Hinged Garage Door is exceptionally tidy. Horizontal design doors feature flat interlocking sections, while vertical design doors use flat interlocking sections with small discreet jointing plates to prevent panel movement over time. Compare this to the multiple bracings, tie rods, and plates that hold a conventional side hinged door together, creating perfect dust and cobweb traps that are almost impossible to keep clean.

The stainless steel hardware is a genuine pleasure to use and, with simple care, retains its good looks for years. D handles or lever handles both have a quality, solid feel, and the high-grade lock cylinder and rose complete the look. Key operated from the outside, with a convenient thumb turn on the inside. The latch keep is adjustable, ensuring a rattle-free door on day one and into the future. No cheap plastic hardware or loose, rattling leaves on a CarTeck Side Hinged Garage Door.

The inherent strength of the aluminium profile frames and double-walled steel sections makes for a door that is robust and genuinely difficult to force. The deadbolt lock and latch combine with the inactive leaf shoot bolts to hold the doors solidly closed. For additional peace of mind, a three-point locking option is available, adding two extending lock pins that engage into the inactive leaf alongside the deadbolt, making forced entry even harder. All CarTeck Side Hinged Doors are supplied with security keys, meaning no locksmith can copy them without authorisation. Whilst the door carries no official security rating, its inherent strength and multi-point locking make it a clear step above any conventional side hinged door.

10. Great all-round performance that helps keep the elements at bay.

The combination of great aesthetics, solid build quality, and features designed to keep the elements at bay make CarTeck Side Hinged Garage Doors a class-leading, all-round performer.

Thermal performance: CarTeck insulated side hinged garage doors are independently tested and carry confirmed thermal performance data for the complete installed doorset. The 40mm double-skinned foam-filled steel panels achieve an impressive panel U-value of 0.56 W/m²K. The complete fitted side hinged doorset achieves a U-value of 2.20 W/m²K, which represents excellent thermal performance for a steel side hinged garage door and is a significant improvement over any conventional single-skin side hinged door. Combined with the all-round bulb seals, aluminium hollow-section profiles, and thermal break threshold, this makes CarTeck Side Hinged Garage Doors a genuinely strong performer for any garage used as an extra room, home gym, workshop, or utility space where retaining warmth and reducing energy loss really matters.

We promised ten things, but a worthy eleventh deserves a mention. CarTeck doors are packaged using clever, minimal plastic packaging that is easily recycled and keeps the door in perfect condition throughout its journey to your door.

Remember — ALL Carteck insulated side hinged garage doors will be delivered to you completely factory assembled and ready to install straight into your garage opening. There is nothing to concern yourself with apart from fixing the outer sub frame to the structural opening and adjusting levels. It couldn’t be easier… The high quality components and the overall integrity is guaranteed as you are buying a complete 'doorset'

Premium Insulated Side Hinged Doors

Carteck insulated steel side hinged garage doors offer fantastic security and excellent insulation for any garage. They feature a double-skinned, 40mm thick steel construction, fully finished and pre-fitted into an aluminium sub-frame ready for easy on-site installation. All doors are made to order to your exact measurements, ensuring the best fit and maximum use of your garage opening.

If you use your garage for an office, workshop, gym, playroom, or simply need to seal an integral garage that is losing heat and letting in dirt, these doors are absolutely ideal. Boasting an impressive panel U-value of 0.56 W/m²K and a complete fitted doorset U-value of 2.20 W/m²K, they are a genuinely strong performer for thermal efficiency.

(Please note: the optional lipped threshold is required to create a full seal at the bottom onto a level surface).

Matching Insulated Pedestrian Doors are also available to order. View in our online shop now >

The 40mm double-skinned steel panels are of the highest quality, providing exceptional strength alongside insulation against sound, cold, and heat. The door panels are set into an aluminium chassis and factory-fitted to the aluminium sub-frame for the easiest possible installation. Everything is ready to go from the moment you receive your delivery!

The outer fixing sub-frame is a box section aluminium construction. Together with the rebated top and sides of the panels, it creates a formidable seal against the weather while providing enhanced security. All side-hinged doors are made to measure down to the millimetre, with the ordering size and prices derived from the overall width and height (including the sub-frame).

Because the doors arrive with almost everything factory-fitted, it removes the need to manually 'hang' the door leaves separately to the frame—a task that usually requires a skilled carpenter. With the leaves already set up, you simply fix the sub-frame to the building structure. Minor adjustments are easily made via the outer frame, the lock keep, and the bottom floor bolt keep.

Choose Your Door Split

Carteck Insulated Side Hinged Doors are available in either a 50/50 split or an Asymmetric split.

50/50 Split

Ideal for symmetrical aesthetics, providing equal width access when both leaves are open.

Asymmetric Split

Perfect for regular pedestrian access. Use the smaller leaf as an everyday personnel door without exposing the entire garage.

Colours & Textures

Carteck Side Hinged Doors are supplied in a Traffic White embossed woodgrain on the outside as standard, with a grey-white stucco interior finish (RAL 9002). The inside face of the door panels is incredibly easy to keep clean and features a neat, uncluttered appearance with no unsightly bracing bars or exposed locking mechanisms.

The exterior of the doors is available in four distinct texture finishes: Woodgrain, Smooth, Stucco, and Micro Profile. Overview below:

All Carteck side hinged doors are factory-fitted with a fully finished aluminium fixing sub-frame. This guarantees precise installation with incredibly tight tolerances where the door hinges and closes. The frame is fully finished in the exact same colour as your chosen door panel to ensure a seamless look.

Note: These doors are supplied as right or left-hand leading door leaf (viewed from the outside looking in). You can specify your preference when ordering.

Premium Hardware & Security Features

Every Carteck side-hinged door is packed with premium hardware designed for durability, ease of use, and top-tier security:

Lipped Threshold: For improved weather protection, a stepped aluminium threshold with a bulb weather strip is available as an optional extra. The door leaves close firmly against the raised strip to create an effective barrier to dust, debris, and draughts. The threshold also includes a thermal break, reducing heat transfer.
High Quality Hinges: Heavy-duty aluminium hinges are fitted with secured hinge bolts, making it extremely difficult to lever the door open. They are fully adjustable, and either 2 or 3 hinges are fitted to each leaf depending on the door size.
Stainless Steel Handles: High-grade stainless steel lever handles and lock covers provide a tough, attractive, and corrosion-resistant finish.
Double Seals & Mitred Corners: In addition to the circumferential seal around the door leaf, the outer frame boasts a three-sided seal for excellent draught reduction. Profiles are cleanly mitre-jointed for a neat, premium finish.
Door Stays: To protect your door from slam closure on windy days, top-grade, spring-dampened stays are fitted to hold the door securely in the open position.
Flush Bolt Security: The inactive (secondary) leaf is secured with robust recessed lever-action flush bolts at both the top and bottom.
DIN Standard CE Marked Hardware: Features a European sash lock and round bar lever handles on 50mm diameter roses. A Euro profile cylinder and thumb turn with stainless steel escutcheons are included as standard (a double cylinder keyed on both sides is available as an option).
Security Keys: Supplied with 2 high-security keys per door. These anti-pick keys add extra security by preventing unauthorised copying, as they cannot be cut by anyone other than the issuer (Carteck).

Optional Extras: Letter boxes, spy holes, and external code locks can also be added to customise your door.

Window Options

Allow natural daylight into your garage without compromising security or insulation. Choose from standard Polyurethane frames or premium Aluminium options:

Aluminium Windows: High-grade aluminium window designs from the exclusive Carteck Bling Range! (Decals are also available, please ask for more details).
Polyurethane Windows: Scratch-resistant, 20mm double-glazed, easy-clean windows available in a wide variety of attractive designs. Window frame units are colour-matched or gracefully complimented to your door panel colour.

Each window style can be ordered with your choice of Clear, Frosted, or Satin glazing.

Above are just a few of the standard window configurations available.

Centre Ribbed

Georgian

Solid

Standard Ribbed

Measuring Guide

The ordering and pricing process is simple:

Take the Overall Width and Height INCLUDING the fixing sub-frame. (See below)

measuring for insulated side hinged garage doors outside

carteck insulated side hinged garage doors inside

It really is that simple... The doors are ordered by their Overall dimensions. Therefore, you should allow whatever tolerance you feel is appropriate for the aperture you are installing into.

We highly recommend deducting a minimum of 10mm all around from your structural opening sizes. This gives you sufficient room to perfectly position and level the door and frame during installation. Depending on whether your opening is smooth brickwork or rough natural stone, you may want to increase this tolerance.

Not sure? Call or email our expert team for further details on measuring and fitting tolerances before you order!
