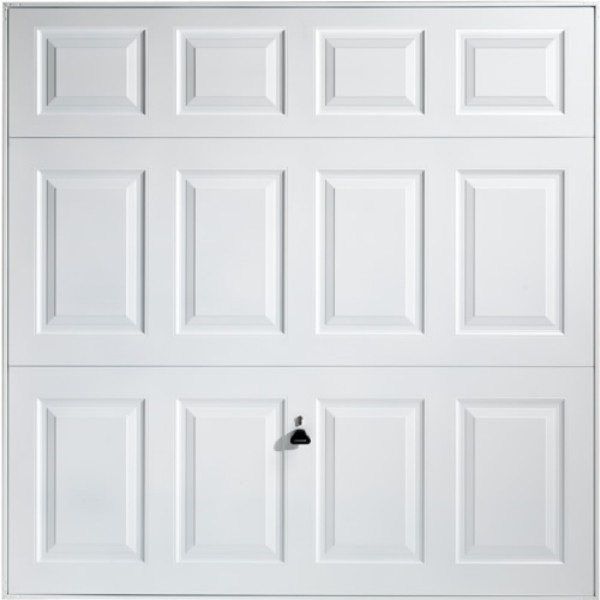

The Garador Beaumont is a panelled Up and Over garage door constructed from high grade galvanised steel. With its deep, crisp and elegant panel pressings this door looks good on both traditional and modern properties.
Fully retractable mechanism as standard
UK Manufactured for over 60 years
High Quality Galvanised Steel
10 Year Warranty
1
Choose Your Sizes
We're ready to help youCall us on 01926 463 888Office Hours: Mon - Fri 8:30 - 17:30
The Garador Beaumont steel up and over door benefits:
> Strong box section chassis and constructed from high grade galvanised steel
> Deep, crisp and elegant panel pressing
> Low maintenance and matches most modern and traditional homes
> Rivet free panel with durable paint finish
> Full range of sizes including doubles and made to measure
> Full technical and warranty support available
Factory Fitted Steel Fixing Frame
We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.
Canopy mechanism with steel frame
Retractable mechanism with steel frame
Choose Handle Option Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.
Extra Security Locking For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.
The improved security of a locking latch in each corner protects against forced entry.
Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.
The ‘De Latch Security Locking’ system is not suitable for canopy doors.
Emergency External Release Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.
Remote Control Electric Operator Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money. The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards. Short K boom is included with this motor, it will be suitable for doors up to 2500mm high.
Please note that the Retractable doors do not have a back brace.
Double retractable doors open along horizontal tracks inside the garage and travel back into the garage space when opened.
Retractable doors are ideally suited to automatic operation.
Garador steel up and over doors use a high quality powder or foil coated finish in RAL 9016 White.
White (RAL 9016) doors are supplied unwrapped as standard.
Retractable Gear - The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.
The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.
Installation Instructions are provided with every door.
Warranty
Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.
GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.
