The SeceuroGlide LT (No Hood) Woodgrain is an electric, insulated aluminium roller garage door engineered to combine the architectural warmth of natural timber with genuine SWS UK manufacturing quality and certified safety compliance. It serves as a lighter specification alternative to the flagship SeceuroGlide Original, removing secondary acoustic webbing and specialist security attachments while retaining the same robust, double-skinned insulated aluminium curtain.

Many low cost roller doors on the UK market compromise on basic safety, often relying on illegal single infra-red beams across the opening. The SeceuroGlide LT complies fully with UK safety regulations, using an active optical bottom edge safety sensor that stops and reverses immediately if an obstruction is met.

Supplied as the No Hood model, the curtain rolls neatly onto steel endplates behind the garage lintel. It is custom-manufactured down to the exact millimetre up to 5200mm wide at no extra cost, making it ideal for garages with sufficient internal headroom where a cosmetic coil cover is unnecessary.

The Advantage of Renolit Grained Foil Laminates

Standard painted roller doors use a flat liquid or powder coating that can show surface marks over time and requires periodic care. The SeceuroGlide LT Woodgrain model uses high-grade Renolit multi-layer exterior foil laminates bonded directly to the aluminium slats, delivering distinct practical benefits:

• Authentic Timber Grain Texture: The exterior foil features an embossed woodgrain texture that replicates real sawn timber, eliminating the flat plastic look of budget painted finishes.
• Seamless uPVC Window Matching: Specifically engineered to match Renolit-foiled uPVC window frames, fascias, and composite front doors across traditional oak, mahogany, and contemporary architectural greys.
• Superior Scratch and UV Resistance: The hard-wearing acrylic surface layer resists scratching, stone chips, and long-term sun bleaching, meaning no sanding, staining, or repainting is ever needed.
• Extended 10-Year Finish Warranty: Because foil laminate technology offers superior durability over standard paint coatings, SWS UK backs the woodgrain finish with an extended 10-year manufacturer warranty.

Certified Safety and Remote Automation as Standard

Unlike uncertified budget alternatives, the SeceuroGlide LT prioritises legal domestic safety, convenience, and reliable daily operation:

• Fully Compliant Optical Safety Edge: Fitted inside the bottom rubber seal, optical sensors detect any contact with an obstruction, stopping and reversing the curtain immediately.
• Two Remote Transmitters Included: Supplied with 2 x rolling-code handheld transmitters, using encrypted transmission frequencies to prevent code grabbing.
• Internal Emergency Manual Release: Direct winding eyelet and manual crank handle come standard on the motor side, ensuring you can open or close the door during a power failure.
• Anti-Drop Protection: Doors weighing over 26.5kg are fitted with an automatic wireless safety brake to prevent curtain drop in the event of mechanical motor failure. Lighter doors under 26.5kg are supplied with an adjustable LT dummy end axle shaft.

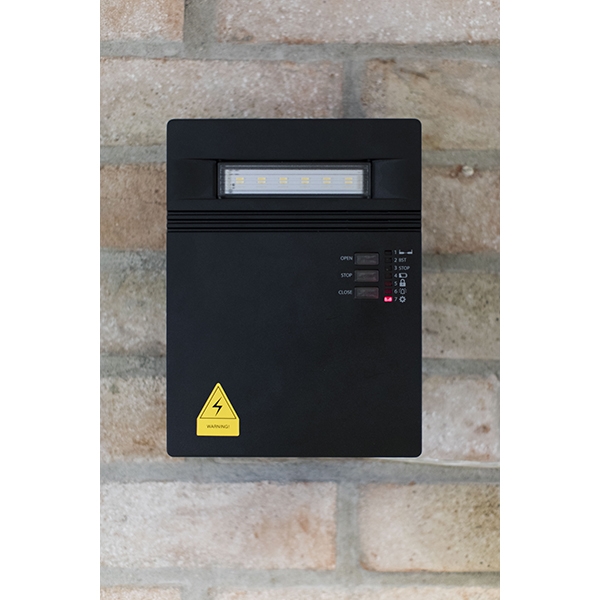

SeceuroSense Plus Wall-Mounted Control Unit

The standard automation package is powered by the intelligent SeceuroSense Plus receiver board, designed for straightforward installation and daily convenience:

• Built-In LED Courtesy Light: Automatically illuminates your garage interior when the door opens, staying on for several minutes before turning off automatically.
• Front Cover Push Controls: Integrated open and close push buttons allow simple internal operation without hunting for a handheld keyfob.
• External Lighting Feed: Includes an integral relay connection supporting up to 300W of external garage or driveway lighting.
• Visual Fault Diagnosis: Clear external LED indicator lights provide instant operational feedback and simple fault diagnosis without removing the cover.
• Simplified Limit Setting: Limit positions can be set directly from the board using an integrated test lead for fast, accurate commissioning.
• No Floor Magnets Required: Built-in ground exclusion circuitry ensures clean floor contact without needing messy floor-mounted magnets.
• Optional Plug-In Alarm: Compatible with an optional acoustic alarm card housed neatly within the control enclosure to deter forced entry attempts.

Drive Upgrades & Smart Home Connectivity

For smart home automation and enhanced security feedback, the SeceuroGlide LT can be upgraded to the Somfy Rollixo Premium IO platform:

• Integrated 100dB Tamper Alarm: Housed directly inside the Rollixo panel, sounding immediately if the curtain is forced upward from outside.
• Two-Way Real-Time Feedback: Confirms whether your garage door is fully closed, open, or stopped directly on your smartphone screen or multi-channel remote handset.
• Somfy Smart App & TaHoma Hub Integration: Seamlessly pairs with Somfy TaHoma switch hubs for smartphone access, scheduled opening routines, and voice assistant control via Alexa or Google Assistant.
• Keygo Transmitters: Supplied with 2 x Somfy Keygo 4-channel IO keyfob transmitters as standard.

Practical Installation and Sizing Advice

• Inside Face Fit vs Reveal Fit: Internal face fixing behind the piers is recommended to maximise drive-through width and clearance height. For reveal-fixed installations, keep in mind that the unhooded model leaves the rear of the coil visible unless clad on site.
• External Manual Release Requirement: If your garage has no secondary pedestrian side door or connecting house door, an optional external low-level keyed manual release must be ordered to allow entry during a power failure.
• LT Dummy End Adjustment: Because the LT does not use an internal counterbalance spring, SWS fits an LT dummy end on the non-motor side of the barrel. This features an adjustable internal shaft to set the axle to the exact bracket width. The shaft is intentionally stiff to pull on initial adjustment; once shifted, it moves freely into position before slotting into the endplate bracket.

* Always allow proper fitting tolerance when measuring your garage opening. A level floor across the opening gives the best bottom weather seal and the most reliable safety edge operation.

How to Order Your SeceuroGlide LT (No Hood) Woodgrain – Options Guide

Every SeceuroGlide LT Woodgrain roller door is custom-manufactured down to the exact millimetre to suit your garage opening, supplied with an exterior Renolit woodgrain foil finish on an open roll system. When configuring your door online, work through the ordering steps below to select your sizes, woodgrain finishes, handing, fitting position, and automation upgrades.

1. Sizing: Selecting Your 'Up to' Pricing Bracket and Exact Dimensions

Our ordering menus use 'Up to' size brackets for online pricing, based on the Overall Door Width (including side guides) and the Guide Height (height from the floor to the underside of the endplates, excluding the curtain roll above):

• Select Your 'Up to' Size: Choose the nearest 'up to' width and height bands from the drop-down menus that cover your overall dimensions. For example, if your required overall width is 2450mm and guide height is 2150mm, select 'Up to 2600mm' for width and 'Up to 2200mm' for height.
• Provide Your Exact Sizes: Enter your exact required overall width and guide height into the dimension boxes when proceeding to checkout. SWS will fabricate your door to these precise measurements at no extra cost (available up to 5200mm wide).

2. Door Curtain Woodgrain Foil Finish (Extended 10-Year Warranty)

Unlike standard painted finishes, these doors use high-grade Renolit exterior woodgrain foil laminates bonded directly to the aluminium slats. This durable, multi-layer coating provides superior resistance against UV fading, weathering, and surface scratches, carrying an extended 10-year manufacturer finish warranty compared to the 5-year term on standard paint finishes.

Choose from our 7 standard architectural woodgrain foil options to coordinate with your home:

• Golden Oak: Warm, classic mid-oak grain. The ideal match for traditional Golden Oak / Light Oak uPVC windows and composite entrance doors.
• Rosewood: Deep, rich reddish-brown timber tone suited to darker uPVC window profiles and red brick or stone properties.
• Mahogany: Distinctive dark reddish-brown hue designed for heritage properties and established dark timber joinery.
• Irish Oak: Subtle, lighter natural oak grain with a contemporary Scandinavian feel, matching modern Irish Oak window frames.
• Anthracite Woodgrain: Deep charcoal grey with an authentic embossed woodgrain texture, perfect for modern homes with textured RAL 7016 uPVC windows.
• Black Woodgrain: Bold, striking black with a tactile timber grain pattern, coordinating with contemporary black architectural cladding and entrance doors.
• White Woodgrain: Clean white finish featuring a subtle embossed grain, offering texture and depth over flat white paint.

* Looking for a different species or non-standard textured foil? SWS offers over 30 further Renolit foil options. Contact our team for pricing and samples.

3. Side Guide Channel Finish

The extruded aluminium guide rails are supplied in either White or Dark Brown as standard to complement your brickwork and foil selection. Alternatively, you can select the option to have the side guides factory powder-coated in a complementary colour to match your chosen woodgrain curtain.

4. Electric Motor and Manual Override Handing

Choose which side you require the electric tubular barrel motor to be positioned on, selected as either Left-Hand Drive or Right-Hand Drive (viewed from inside the garage looking out).

The internal emergency manual release winding eyelet and crank handle are always situated on the same side as the motor unit, so ensure this side provides practical, unobstructed access inside your garage.

5. Door Installation Position

Specify how the door will be fixed relative to your garage opening structural piers and lintel:

• Inside Face Fit (Recommended): Fitted to the inside brickwork face behind the garage opening. This position preserves your maximum drive-through opening width and height, keeping the guides and the overhead roll entirely concealed behind the reveals.
• Inbetween the Opening (Reveal Fit): Fitted between the structural opening piers and under the lintel. The side guides will reduce your clear drive-through width by either 150mm (75mm guides) or 180mm (90mm guides), and the roll sits below the lintel. * Note: Because this model has No Hood, fitting inbetween the opening leaves the rear of the coiled curtain exposed internally unless you plan to clad or box it in on site.

6. Optional External Low-Level Manual Override System

Every door comes with an internal manual crank handle for power failures. However, if your garage has no separate pedestrian access door or connecting integral house door, you must order an external manual release system:

• This heavy-duty, lockable low-level keyed disconnect allows you to disengage the motor and wind the door open from the outside using a crank handle if the power fails.
• The external release is installed on the same side as your motor selection.
• Supplied as standard to pass through brickwork walls up to 500mm thick (the 7mm hex drive shaft can be extended on site if passing through deeper reveals).

7. Optional Alarm Kit for the SeceuroSense Plus Control Panel

For standard SeceuroSense Plus systems, you can add an optional plug-in acoustic alarm card. Housed directly inside the internal wall control panel, this sensor triggers an ear-piercing siren if forced lifting or tampering is detected at the bottom of the door when closed.

8. Upgrade to Somfy Electric Motor Drive & Somfy Rollixo Premium IO Control Panel

Upgrade your complete drive package to Somfy’s flagship IO-homecontrol platform:

• Built-In 100dB Tamper Alarm: Housed directly inside the Rollixo panel, sounding immediately if the curtain is forced upward.
• Real-Time Door Status Feedback: Two-way communication confirms whether the garage door is fully open, closed, or partially positioned directly on your smartphone app or multi-channel remote.
• Smart Home Ready: Seamlessly pairs with the Somfy TaHoma switch hub and Somfy smart apps for automated routines, voice assistant control, and remote access from anywhere.
• Transmitters Included: Supplied with 2 x Somfy Keygo 4-channel IO keyfob transmitters as standard.

SeceuroGlide LT (No Hood) Woodgrain Technical Specification

The SeceuroGlide LT (No Hood) Woodgrain is engineered by SWS UK to combine the low maintenance resilience of an insulated aluminium roller door with high grade architectural Renolit woodgrain foil laminates. Operating on an open roll system without a top hood box, this model delivers verified UK safety compliance, robust weather sealing, and made-to-measure sizing up to 5200mm wide.

Renolit Woodgrain Foil Curtain Specification & 10-Year Warranty

Unlike standard powder-coated finishes, the exterior surface of the curtain slats features an embossed, multi-layer Renolit exterior polymer foil laminate bonded under heat and pressure to the aluminium substrate:

• 7 Standard Woodgrain Laminates: Golden Oak, Rosewood, Mahogany, Irish Oak, Anthracite Woodgrain, Black Woodgrain, and White Woodgrain.
• Extended 10-Year Finish Guarantee: Supported by SWS UK with an extended 10-year manufacturer warranty against blistering, cracking, flaking, and severe UV degradation (compared to 5 years on painted finishes).
• Textured Grain Finish: Tactile embossed timber grain profile designed to coordinate directly with modern foiled uPVC window frames, fascias, and composite entrance doors.
• Curtain Slat Dimensions: 77mm individual twin-walled aluminium profile filled with CFC-free insulating polyurethane foam for rigidity and thermal performance.

What Is Included as Standard

• No Hood (Open Roll) Configuration: Supplied with cast aluminium endplates designed for face-fitting internally behind the garage lintel. (Does not include an aluminium top box enclosure).
• Extruded Aluminium Side Guides: 75mm guides on doors up to 3000mm overall width; 90mm heavy-duty guides on doors over 3000mm overall width. Guides are supplied in white or brown as standard, lined with dense brush pile weatherstripping.
• SeceuroDrive Electric Tubular Motor: High-torque internal barrel motor fitted neatly inside the axle.
• SeceuroSense Plus Control Panel: Wall-mounted receiver box featuring front-cover push-button controls, visual diagnostic LEDs, and an integrated timed LED courtesy light.
• Two Remote Transmitters: 2 x rolling-code handheld keyfobs using encrypted transmission frequencies to prevent code grabbing.
• Bottom Slat Optical Safety Edge: Legal, fully compliant bottom-edge optical safety system with a shaped rubber seal that stops and reverses immediately if an obstruction is met.
• Internal Emergency Manual Release: Direct winding eyelet and manual crank handle to operate the door during a power cut.
• Anti-Drop Protection: Doors weighing over 26.5kg are supplied with an automatic wireless safety brake. Doors weighing under 26.5kg are fitted with an adjustable LT dummy end shaft.
• Secure Auto-Locking: Heavy-duty locking strap mechanism secures the curtain down firmly when closed to resist forced lifting.
• Vacation Mode: Hand transmitter feature that locks the front panel buttons on the internal control box, preventing operation from inside while you are away.
• Made to Measure: Custom-manufactured down to your exact opening dimensions down to the millimetre up to 5200mm wide at no extra charge.

Ordering and Sizing Guidelines

Pricing for the SeceuroGlide LT is based on overall door width including side guides and guide height (the height to the underside of the endplates, excluding the curtain roll above):

• Example Calculation: For a clear daylight opening 2300mm wide x 2200mm high installed on the inside face of the brickwork piers, you need 75mm guides on each side (2300mm + 150mm = 2450mm over-guide width) and a 2200mm guide height. For pricing, select the Up to 2600mm width bracket and the Up to 2200mm height bracket.
• Headroom Requirement: Allow 300mm of clear headroom above the guide channels for the unhooded curtain coil and support endplates.
• Drive Handing: Motor drive side (left or right, viewed from inside looking out) must be specified when ordering. The manual override eyelet and crank handle exit on the same side as the motor.
• Between-Fix Notice: The No Hood model is designed primarily for internal face fixing. If fitting between the structural opening reveal, the rear of the coil will remain visible from inside unless separate fascia cladding is fitted on site.

7 Standard Woodgrain Finishes

* Side guides and endplates are supplied in satin white or dark brown as standard. Guides can be factory colour-coordinated to suit curtain selection upon request.

Optional Extras and Automation Upgrades

• Somfy Rollixo Premium IO Drive Package: Upgrades the motor and control unit to the Somfy IO platform, featuring a built-in 100dB tamper alarm, high-output LED light, real-time status feedback, and 2 x Somfy Keygo 4-channel remote handsets.
• Smart App & Home Automation: Connects with Somfy TaHoma switch hubs for smartphone access, remote scheduling, and voice assistant integration (when paired with the Somfy Rollixo IO system).
• Integral Control Box Alarm: Plug-in acoustic alarm module housed directly inside the standard SeceuroSense Plus control unit.
• External Low-Level Manual Release: Keyed external disconnect fitted through the wall with a 7mm hex bar (suits walls up to 500mm thick; extendable on site for deeper reveals). Essential for garages with no separate pedestrian entrance.
• Over 30 Additional Renolit Foil Finishes: Extended architectural timber species and bespoke foil options available upon request.
• Sloping Bottom Slat: Custom-fabricated bottom rail engineered to sit flush against sloping garage thresholds of up to 250mm incline.
• Access Accessories: Wireless external digital keypads, surface-mounted key switches, and additional handsets.

SeceuroGlide LT (No Hood) Installation Guidance

Fitting a SeceuroGlide LT roller garage door is well within the capability of an experienced tradesperson or competent DIYer. Because this model is supplied without a full hood box, careful initial setup of the guide channels, endplates, and axle barrel is essential to ensure a smooth, level roll and reliable safety edge operation.

1. Pre-Installation Checks and Tolerances

Before unpacking the door components, verify the opening structure and dimensions:

• Floor Levelness: Check the garage threshold with a long spirit level. The floor must be reasonably level across the full opening width. An uneven threshold prevents the bottom rubber seal and optical safety edge from seating squarely, which can trigger nuisance reversals when closing.
• Structural Soundness: Ensure the brickwork piers and lintel are flat, plumb, and free of obstructions (such as conduit, alarm sensors, or gas meters). The fixing face must support the weight of the assembly and the operating motor torque.
• Headroom and Pier Clearances: Confirm you have a minimum of 300mm clear headroom above the guide height for the coiled curtain roll, along with at least 75mm (or 90mm for doors over 3000mm wide) on each internal pier to mount the guide channels.

2. Assembling the Frame and Securing the Endplates

Building the structural frame square is the most critical stage of the installation:

• Slot Guides onto Endplates: Lay the extruded guide channels flat on clean cardboard or dust sheets. Slot the legs of the cast aluminium endplates directly into the tops of the side guides.
• Check Diagonals for Squareness: Lift the assembled guide and endplate frame into position against the internal brickwork opening. Use a tape measure to check diagonally from the top corner of one endplate to the opposite bottom corner of the guide. Both diagonal measurements must match exactly.
• Fixing into Masonry: Plumb both guides vertically with a spirit level and clamp them into place. Drill and plug through the pre-drilled fixing holes into solid masonry using suitable heavy-duty fixings. * Never fix solely into cosmetic plasterboard or crumbling mortar joints.

3. Mounting the Axle Barrel and Adjusting the LT Dummy End

The axle assembly carries the motor at one end and the anti-drop assembly or dummy shaft at the other:

• Lift Axle onto Endplates: Secure the motor head into its dedicated mounting bracket on your chosen drive side endplate, ensuring the manual override eyelet faces forward or downward for easy hook engagement.
• Adjust the LT Dummy Shaft: Unlike standard spring assisted doors, the LT relies on a direct drive dummy end on the non motor side. The internal shaft allows width adjustment to seat the axle accurately between the endplates. This shaft is intentionally stiff to pull on initial adjustment; once shifted, it moves freely into position and drops into the support bracket bearing.
• Safety Brake Alignment (Doors over 26.5kg): If your door is supplied with a wireless safety brake, ensure it is seated level and locked correctly onto the dummy endplate bearing before hanging the curtain.

4. Hanging the Insulated Curtain and Setting Autolocks

Take care when unwrapping the curtain to avoid scratching the textured woodgrain foil finish on the floor:

• Feeding into Guides: With the axle secured and motor limits roughly positioned, carefully feed the top edge of the curtain over the barrel and guide the side edges down into the brush-lined channels.
• Attaching Locking Straps: Connect the heavy-duty auto-locking straps evenly spaced across the top slat into the axle collar slots.
• Setting the Down-Locking Position: When the door is fully closed, the locking straps should form a slight downward 'knuckle' angle against the barrel. This mechanical angle clamps the curtain firmly down, preventing anyone from levering the door open from outside.

5. Commissioning the Motor, Safety Edge, and Controls

Once mechanically hung, wire the control panel and complete the final safety setup:

• Mounting the Control Unit: Fix the SeceuroSense or Somfy Rollixo receiver panel to an internal wall at approximately chest height, within reach of a standard 13-amp domestic power socket.
• Setting Limit Stops: Set the mechanical or digital motor limits so the curtain stops neatly at the top (leaving the bottom slat resting just below the top of the guides) and seals firmly against the floor at the bottom without over-compressing the locking straps.
• Optical Safety Edge Testing: Pair the wireless transmitter in the bottom rubber seal with the receiver board. Test the safety system by placing a 50mm timber block on the floor beneath the door path. On making contact, the door must immediately stop and reverse upward.
• Emergency Override Test: Disconnect the mains power and test the manual crank handle to confirm the door can be wound open smoothly by hand in the event of a power failure.

* If you fitted an optional external low-level manual release, test key operation from the outside to confirm the hex bar turns the motor gearbox freely before leaving the site.

Details on the SeceuroDrive Motor Limit Setting Instructions can be watched here.

Please Note: Important Information when installing the SeceuroGlide LT Roller Doors.

In the absence of the spring we apply an LT dummy end. This has an adjustable shaft in it. This is designed to be moved so the axle becomes the right size. This is stiff to pull but once its moved it moves freely. This then slots in to the bracket as normal.
For  doors which have been supplied with a dummy end, the bearing will no longer be welded to the end.   Instead, the bearing will now be located within the accessory box and will need to be installed manually.

To install the bearing, simply slide the bearing ontl the end of the dummy end shaft.

SeceuroGlide Manufacturer Warranty (SWS UK & Garage Doors Online)

When you purchase a SeceuroGlide roller garage door through Garage Doors Online, you receive direct manufacturer backing from SWS UK. Manufacturing physical security products in Lancaster since 1985 and trusted on more than 200,000 British homes, SWS provides one of the most comprehensive, transparent warranty packages in the UK garage door sector.

Unlike imported budget roller doors with vague importer guarantees, every SeceuroGlide door leaf, motor drive, and control panel carries clear, independently supported coverage terms.

Comprehensive Warranty Summary

What Makes the SWS & Garage Doors Online Warranty Different?

• Direct Manufacturer Backing: Your warranty is supported directly by SWS UK, an ISO 9001 certified British manufacturer. If a component ever needs replacement, replacement parts are readily available and built to factory tolerances.
• Full 7-Year Automation Cover: While many suppliers limit electrical motor warranties to 1 or 2 years, SWS guarantees their automation drive units and control boards for a full 7 years, giving you long-term confidence in daily automated operation.
• Direct Technical Support: As an official SWS distributor, Garage Doors Online provides direct access to factory technical staff, wiring diagrams, and spare parts support throughout the working life of your door.

Straightforward Maintenance Requirements

To keep your SeceuroGlide warranty fully valid, your door simply requires basic, sensible care:

• Keep Guide Channels Clear: Periodically wipe out the aluminium side guides and brush pile strips with a damp cloth to clear away grit, salt deposits, and debris. Do not apply heavy grease or oil to the brush strips.
• Wash the Curtain Finish: Clean the outside face of the aluminium slats every few months with warm soapy water (car shampoo works well) and a soft cloth, especially in coastal areas where airborne salt can accumulate.
• Maintain Threshold Clearance: Ensure the floor beneath the door remains free of stones, ice build-up, and leaf litter so the optical safety edge and rubber seal seat flat and true on every closure cycle.

* Always register your door serial number with SWS UK following installation to activate your extended manufacturer warranty records.

How to Measure for Your SeceuroGlide Roller Door

When ordering a SeceuroGlide LT roller garage door without a hood, getting your measurements right from the start avoids delays and guarantees a clean fit. Use this guide alongside our 3D dimension drawing to identify exactly what to measure and how to specify your ordering sizes.

* SWS manufacture your door to the exact millimetre sizes you enter at checkout. The online ordering sizes always refer to the Overall Width (including side guide channels) and the Guide Height (floor to underside of the endplates), not the opening hole size.

Understanding the Key Ordering Dimensions

Option A: Installing Behind the Opening (Inside Face Fit – Recommended)

Fitting behind the brickwork piers gives you the greatest drive through width and clearance height:

• Measure the Daylight Width: Measure the clear distance between the internal faces of your brick piers at top, middle, and bottom. Use the narrowest measurement.
• Calculate Over Guide Width: Add the two guide widths to your daylight opening width. For doors up to 3000mm wide using 75mm guides, add 150mm (e.g., 2300mm opening + 150mm = 2450mm Ordering Width). Ensure you have at least 75mm of flat pier face on each side inside the garage.
• Measure Daylight Height (Guide Height): Measure from the finished floor to the underside of your lintel at both sides. If the floor is level, this measurement is your Guide Ordering Height.
• Check Your Headroom: Confirm you have a minimum of 300mm of unobstructed headroom above the underside of the lintel inside the garage to accommodate the unhooded curtain roll and endplates.

Option B: Installing Inbetween the Opening (Reveal Fit)

Used when internal headroom or side pier space is limited, fixing directly between the reveals:

• Measure the Width Between Reveals: Measure between the brickwork opening at three heights (top, middle, bottom). Take the smallest figure and subtract a 10mm fitting tolerance (5mm per side) to arrive at your Over-Guide Ordering Width. This ensures the frame fits cleanly between rough or out-of-plumb brickwork.
• Calculate Guide Ordering Height: Measure from the finished floor to the underside of the lintel. Deduct 300mm (the height of the endplates and roll) to calculate your Guide Ordering Height. The remaining space below the roll becomes your clear drive-through height.

Essential Measuring Tips Before Finalising Your Order

• Check the Floor Level: Place a long spirit level across the threshold. The optical safety edge and bottom weather seal need a reasonably level floor across the entire opening to bed down correctly without triggering false safety reversals.
• Inspect the Lintel and Ceiling Depth: Check back into the garage for at least 350mm behind the lintel to ensure no ceiling joists, light fittings, gas pipes, or roof trusses clash with the overhead curtain roll on endplates.
• Double-Check Sideroom Obstructions: Confirm the internal pier surfaces are clear of consumer units, surface-mounted conduit, or shelving where the guide channels and fixing angles will mount.

* If your opening is out of square or you are unsure which dimensions apply to your 3D drawing, contact our team with your measurements before ordering and we will gladly verify your ordering sizes.
