GDO Classic Standard Horizontal Rib - Special Offer

The GDO Classic Standard Horizontal Rib Steel Up and Over Garage Door is a durable, galvanised steel door defined by its traditional "close-boarded" horizontal design. This narrower rib spacing creates a textured, consistent surface that is widely recognised and trusted across the UK, making it an ideal replacement for older doors or a practical choice for new builds.

Design and finish

Finished in a powder coat on both sides as standard, this door is available in a wide range of standard sizes. The horizontal lines of the standard rib design help to visually widen the appearance of the garage opening, providing a smart and uniform finish that suits almost any architectural style.

Operating gear options

You can select either **canopy** or **retractable** operating gear, which comes factory-fitted to the door chassis. This integrated gear system means the door arrives ready for installation, saving you time and effort compared to assembling complex mechanisms on-site.

Sub frame options

This door comes pre-framed as standard.

Sizing and measuring

The ordering size is the overall frame size. Please refer to the measuring tab to ensure you have calculated the correct overall width for your opening.

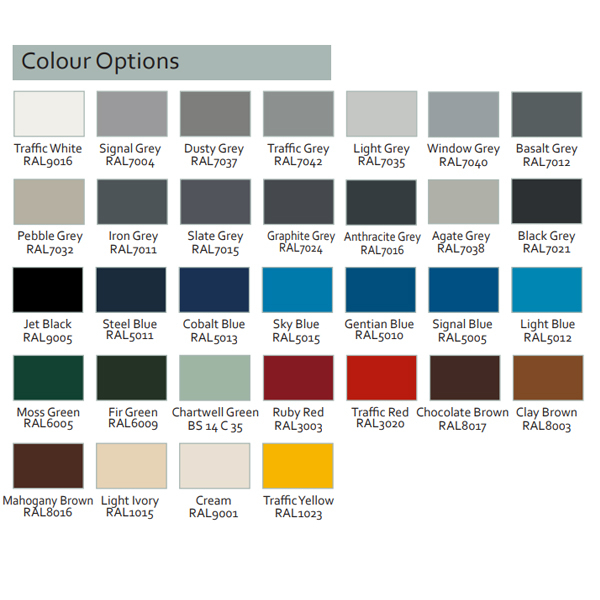

These GDO special offer up and over doors are white, black or anthracite as standard or a choice of additiona 29 colours at a surcharge, in standard sizes only, and you choose canopy or retractable gear when you start the order. Standard up and over doors in the UK are ordered using metric size references, which relate to the nearest overall sub frame dimensions, rather than exact metric conversions.

Canopy or Retractable Gear

The first decision is whether you want canopy or retractable operating gear. Canopy gear uses a preassembled torsion spring above the door panel with cables either side to lift the door, and when it is fully open about a third of the panel projects out of the front of the garage, which is where the “canopy” name comes from.

Retractable operating gear uses lifting arms either side with springs and horizontal tracks inside the garage, so the door swings out a little further on the way up but then retracts fully back into the garage on the tracks. This makes retractable gear the better option if you know you want to add an electric operator, assuming you have enough headroom and length inside the garage for the boom.

Canopy mechanism with steel frame

Retractable mechanism with steel frame

Handle Options

You can choose a standard black handle with euro profile cylinder locking, or no handle and no handle hole drilled at all. No handle is usually chosen when the door is going to be used with an electric operator so you are not left with an unused external handle and keyhole.

Most other up and over door ranges come pre-drilled for a handle as standard, so being able to order the panel undrilled is a useful option when you are planning automation.

Factory Fitted Steel Sub Frame

Door type and operation

• Type: Single skin steel up and over garage door with canopy or retractable lifting gear.
• Operation: Manual as standard, with retractable gear the better choice if you plan to add an electric operator.
• Sizes: Standard sizes only, no made to measure on this range.

Construction and finish

• Construction: Galvanised steel door leaf with pressed ribs, folded edges and internal bracing for strength.

Steel sub frame

• Supplied pre-framed as standard.

Operating gear options

• Canopy – Overhead torsion spring and cables, with about one third of the door projecting out when open.
• Retractable – Side arms and horizontal tracks, the door retracts fully into the garage and is well suited to electric operators.

Locking

• 2 point internal locking as standard.
• 4 point internal locking upgrade, using cables from the internal handle to operate extra locking points (no exposed locking rods).

Handle options

• Standard black external handle with euro cylinder for manual use.
• Or supplied without handle and without handle hole for electric operation.

Installation

• Can be supplied pre-framed for direct fixing into the opening, or unframed for fixing to your own timber sub frame.
• A level floor and square, plumb opening are important for the best results and smooth door operation.

Door type and operation

• Type: Single skin steel up and over garage door with canopy or retractable lifting gear.
• Operation: Manual as standard, with retractable gear the better choice if you plan to add an electric operator.
• Sizes: Standard sizes only, no made to measure on this range.

Construction and finish

• Construction: Galvanised steel door leaf with pressed ribs, folded edges and internal bracing for strength.
• Finish: Factory finished in white, black and anthracite as standard on the door and optional steel frame.

Operating gear options

• Canopy – Overhead torsion spring and cables, with about one third of the door projecting out when open.
• Retractable – Side arms and horizontal tracks, the door retracts fully into the garage and is well suited to electric operators.

Locking

• 2 point internal locking as standard.
• 4 point internal locking upgrade, using cables from the internal handle to operate extra locking points (no exposed locking rods).

Handle options

• Standard black external handle with euro cylinder for manual use.
• Or supplied without handle and without handle hole for electric operation.

Installation

• Can be supplied pre-framed for direct fixing into the opening, or unframed for fixing to your own timber sub frame.
• A level floor and square, plumb opening are important for the best results and smooth door operation.

Warranty information

These steel up and over doors are covered by a manufacturer’s warranty, provided they are installed and used in normal domestic conditions.

1. Warranty period

• Garage door, frame and mechanism: 10 year warranty covering the safe and reliable operation of the garage door from the date of purchase, for the original purchaser.
• Springs, tracks, rollers and hinges: 2 year warranty for normal domestic use (no more than 5 open/close operations per day). We recommend they are inspected annually by a competent engineer.
• Replacement parts: 6 month warranty on replacement parts, or the remainder of the original warranty period if longer.
• Paint finish: Factory-applied finish covered against rust-through and loss of adhesion for the stated warranty period, assuming the surface is kept clean and is not damaged by impact or harsh chemicals.

2. Requirements

• Warranty is only valid in the country where the garage door was purchased.
• The product must have been purchased through an authorised partner and supported by a valid receipt and product identification (such as barcode/serial label).
• The warranty covers the garage door, frame and operating mechanism only, and does not extend to any surrounding building work or consequential damage.

3. Performance

• During the warranty period, defects which can be shown to be due to material or manufacturing faults will be rectified. At the manufacturer’s discretion this may be by repair, exchange of parts, supply of a replacement door, or a reasonable reduction in price.
• The warranty does not cover any costs for removal, refitting, installation labour or delivery/attendance charges.

4. Exclusions

• Improper transport, storage or fitting.
• Repairs or adjustments carried out by non-qualified or non-competent individuals.
• External influences such as fire, water ingress, alkaline solutions, acids, salt, bird droppings or abnormal atmospheric or industrial pollution.
• Use of non-approved parts or accessories without the manufacturer’s agreement.
• General wear and tear, lack of reasonable maintenance and any damage caused by impact or misuse.

Full warranty terms, including any updates or model-specific details, are supplied with the product documentation and are available on request.

Click here to view this door's product guarantee.

Imperial v's metric size conversion chart
