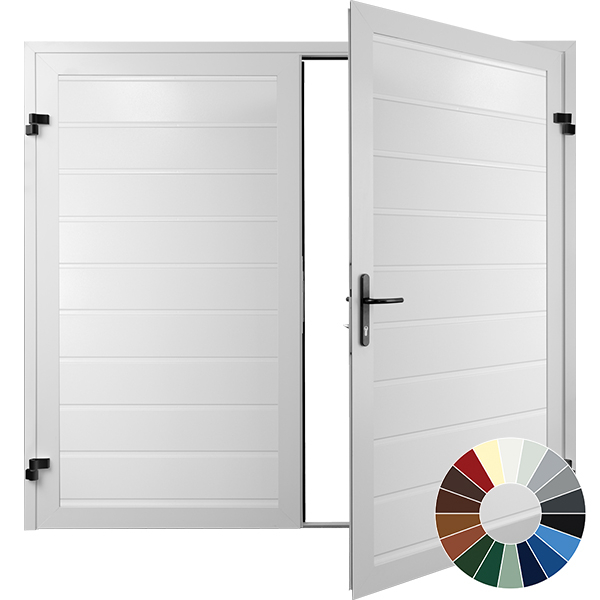

The Icon Medium Rib design doors offer a beautiful and very popular balanced ribbed design. Steel side hinged doorsets with a traditional and modern visual appearance with a more subtle overall appearance to other designs, working well at any size ordered. Perfect for both modern and traditional homes.

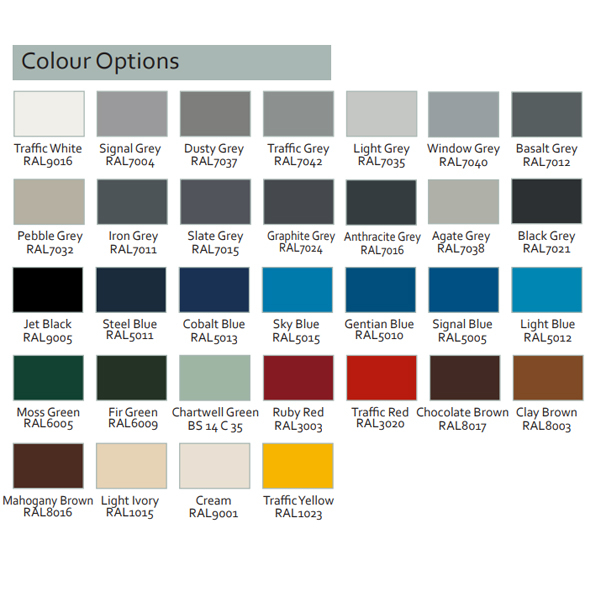

These doors are available in 32 factory powdercoated colour options. Available in a 50/50 door leaf split or for those using their garage more for another room, the perfect 1/3rd and 2/3rd split, with the smaller pedestrian access for easy access in and out.
- The Best Single Skin Steel Hinged Doors
- Easy Fit - Pre Framed - Fully Assembled
- Handles, Hinges, Locking - All Included
- Made to Measure as Standard
The balanced and clean lines of the medium horizontal ribbed door creates a sophisticated and up to date appearance which compliments almost any architectural style of home.
A great investment for your home and garage functionality without huge outlay and perfect when insulated doors are not necessary. Our Icon range represents the very best of steel side hinged garage doors in terms of strength durability and security from a single skin uninsulated doorset.
Domestic garage doors or light commercial use.
Installation instructions can be found here
These insulated hinged doors have all the difficult parts pre assembled already and you have delivered a complete doorset.
You simply have to offer the doors in their prefitted frame into the opening and secure the fixing frame and then adjust levels in the process.
A level floor is essential for the best results and a square aperture also makes installation easier but there are adjustments all round and in all directions.
2-year Product guarantee
The standard guarantee of 2 years is given to the holder of the product that covers all parts and the panel providing the serial number is readable, intact and in place. Factory applied paint finishes are 2 years on steel doors that have standard colours applied.
The product is given a 2 year warranty for hinges and locking for normal use whereby normal use consists of no more than 5 operations (open/close) per day. We recommend the product is inspected and serviced annually by a competent engineer from the garage door industry, the warranty for parts replaced by an engineer or for supply only is 6 months or for the remainder of the warranty period. If warranty work is carried out the product guarantee does not extend past the anniversary of installation/ supply date.
* Terms and conditions apply, full details can be found here
Always remember to allow for some fitting tolerance when ordering. In a perfect world we would recommend about 10mm all round, meaning you measure the width and height and then take 10mm off the smallest dimensions all round and this gives the Ordering Sizes. In real world apertures the floor is often not level and the aperture not totally square so please make sure you allow enough tolerance to cater for any out of square dimensions.
Minimum & Maximum Ordering Sizes
| 1/3 2/3 | Min width | 1500 |
| 50/50 | Min width | 1500 |
| 1/3 2/3 | Max width | 2438 |
| 50/50 | Max width | 2650 |
| 1/3 2/3 | Min height | 1500 |
| 50/50 | Min height | 1500 |
| 1/3 2/3 | Max height | 2286 |
| 50/50 | Max height | 2286 |
