Garador Beaumont with Windows (White) Up and over garage door Steel Garador

01926 463 888


Garador Beaumont with Windows (White) Steel Up and Over
Garador
Garador Look at our customer reviews on trustpliot
Up and Over Steel GEAR TYPE: Retractable

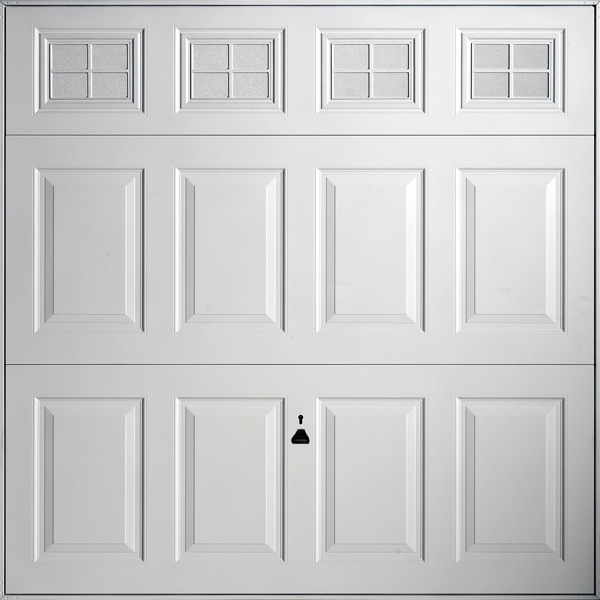

The Garador Beaumont with windows is a panelled up and over garage door constructed from high grade galvanised steel. With a durable powdercoat paint finish and a tried and tested design, this door offers endless kerbside appeal and looks good on both traditional and modern properties. With precision engineering for functional and smooth operation as well as deep, crisp and elegant panel pressings, this door stands head and shoulders above other panelled garage doors on todays market place.

  • Fully retractable mechanism as standard
  • UK Manufactured for over 60 years
  • High Quality Galvanised Steel
  • 10 Year Warranty
1
Choose Your Sizes
Web Price from: £2,311.20 Inc. VAT
£1,926.00 Ex. VAT

Garador steel up and over doors use a high quality powder or foil coated finish in RAL 9016 White.

White (RAL 9016) doors are supplied unwrapped as standard.

Window Options:
Standard (clear or stippled)
Diamond (clear or stippled)
Cross (clear or stippled)

Please Note: Window Frames are supplied White or Brown as standard.

Factory Fitted Steel Fixing Frame
We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.



Retractable up and over door
Retractable mechanism with steel frame


Choose Handle Option
Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.

Garador Handle Options

Extra Security Locking
For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.

The improved security of a locking latch in each corner protects against forced entry.

Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.

The ‘De Latch Security Locking’ system is not suitable for canopy doors.

Emergency External Release
Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.

Remote Control Electric Operator
Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money.  The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards. Short K boom is included with this motor, it will be suitable for doors up to 2500mm high.

Window Options
Choose from either Standard, Cross or Diamond design.

Garador Window Options

Retractable Gear - The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.

The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.

Double retractable doors open along horizontal tracks inside the garage and travel back into the garage space when opened.

Retractable doors are ideally suited to automatic operation.

Installation Instructions are provided with every door.

Warranty

Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.

GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.

Steel Doors: 10-year Warranty. Replacement Parts: 6 months.

The Warranty does not cover damage caused through:

> Normal wear and tear

> Improper installation

> Negligent care and maintenance

> Improper initial and subsequent operation

> Negligent or wanton destruction

> External influences such as fire, water, salts, alkaline solutions, acids, abnormal environmental influences

> Mechanical damage through improper transport and fitting

> Priming and other surface protection treatments

> Repair by non-qualified persons

> Using non-Garador parts without the approval of the Manufacturer

> Remove of the product number or making it unidentifiable

Garador Up and Over Service and Support: Information on operation, maintenance and cleaning of your garage door.

Size Code Internal Frame Size
(On-site timber frame)
width x height
(mm x mm)
Frame kit for double door
Overall frame sizes shown*
width x height
(mm x mm)
1076 3049 x 2286  3189 x 2344
1166 3354 x 1981  3494 x 2039
1170 3354 x 2136  3494 x 2194
1176 3659 x 2286  3494 x 2344
1266 3659 x 1981  3799 x 2039
1270 3659 x 2136  3799 x 2194
1276 3964 x 2286  3799 x 2344
1366 3964 x 1981  4104 x 2039
1370 3964 x 2136  4104 x 2194
1376 3964 x 2286  4104 x 2344
1466 4269 x 1981  4409 x 2039
1470 4269 x 2136  4409 x 2194
1476 4574 x 2286  4409 x 2344
1566 4574 x 1981  4714 x 2039
1570 4574 x 2136  4714 x 2194
1576 4879 x 2286  4714 x 2344
1666 4879 x 1981  5019 x 2039
1670 4879 x 2136  5019 x 2194

 * No fitting clearance allowed. If door is fitted between the brickwork a minimum of 10mm clearance over the width and 5mm over the height should be added to the  overall frame size when selecting the door.

A: When measuring for any garage door always remember there is a fixing sub frame to include in all calculations, below is a guide on how to measure f

(read more)
Tuesday 10th March 2015 at 12:00am
A: Generally for all [1] the order sizes refer to the dimensions of the inside of the fixing sub frame which can be a steel or timber frame. The over

(read more)
Sunday 22nd January 2012 at 12:00am
A: They are always delivered by either the manufacturer or ourselves in specialised transport vehicles. The smaller items such as the remote control o

(read more)
Wednesday 28th September 2011 at 12:00am
A: Most doors and electric operators are supplied with full printed installation instructions. Many PDF installation instructions can also be found

(read more)
Monday 5th September 2011 at 12:00am
>
View all in the Up and Over range >
