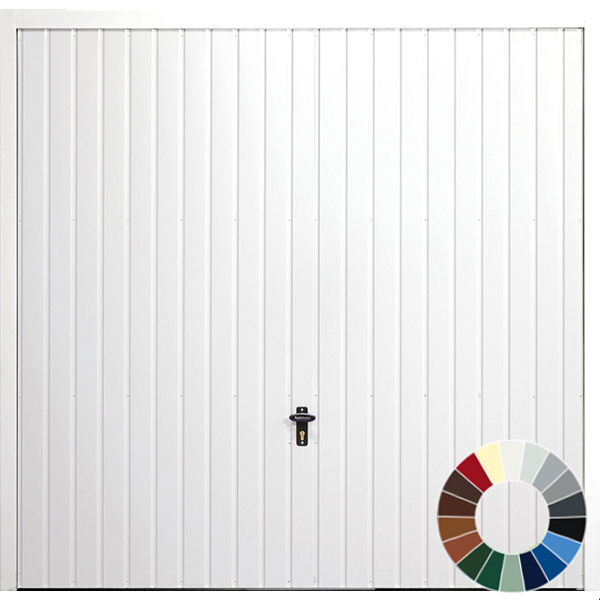

Garador Carlton Steel Up and Over Garage Door (Special Offer)

The Garador Carlton is the definitive vertical ribbed steel garage door for UK properties. Manufactured by Garador in Yeovil, Somerset, it features a traditional narrow vertical ribbed profile that has been a classic feature of British homes for decades. The vertical pressings add visual height to lower garage apertures and align naturally with vertical window mullions, upright brick courses, and vertically boarded front entrance doors.

Each vertical flute acts as a continuous strengthening fold down the full height of the galvanised steel panel, giving the door leaf high structural stiffness and eliminating panel flex. Vertically oriented ribs also channel driving rain and road dirt straight down off the bottom edge, preventing dirty water lines from settling across the door face.

This limited special offer listing covers our most popular standard single sizes, supplied in a factory applied low maintenance Traffic White (RAL 9016) polyester powder coat finish on both sides. It delivers genuine Garador engineering, factory assembled operating gear, and reliable mechanical security at exceptional value.

*Need a different colour, a double width, or a bespoke opening size? The Garador Carlton is also available across our wider online shop in a broad range of standard RAL colours, double door widths up to 14ft, and purpose made sizes built down to the millimetre.

Available Special Offer Sizes

This promotion covers the 18 most frequent UK single garage opening dimensions. Sizing refers to the nominal internal frame opening (daylight door panel width by height):

• Available Widths: 6ft 10in (2083mm), 7ft 0in (2134mm), 7ft 1in (2159mm), 7ft 5in (2261mm), 7ft 6in (2286mm), and 8ft 0in (2438mm)
• Available Heights: 6ft 4in (1930mm), 6ft 6in (1981mm), and 7ft 0in (2134mm)

Operating Mechanism: Canopy vs Retractable

Both gearing options are factory mounted directly to the door leaf and frame, eliminating complex mechanical assembly on site:

• Canopy Operating Gear: Uses a zinc coated overhead torsion spring and cast alloy drums mounted above the door leaf, with steel cables guiding the panel in vertical side tracks. When open, approximately one third of the door height extends forward past the brickwork to form an overhead canopy. Canopy gear leaves your garage ceiling completely clear of horizontal tracks, making it the best option for manual operation where ceiling rafters, high storage, or roof trusses must remain unobstructed.
  Nominal drive through clearance is 40mm less than opening width and 130mm less than opening height.
• Retractable Operating Gear: Uses side mounted multiple spring packs with protective finger trap covers and horizontal ceiling level tracks that run back into the garage. The entire door leaf glides inside when open, leaving no panel protruding outside. Retractable gear is the correct certified choice if you intend to add a remote controlled electric boom operator, and it features a secure parking detent to prevent uncontrolled closing.
  Nominal drive through clearance is 105mm less than opening width (due to side pivot arms) and 110mm less than opening height.

Sub Frame Options: Timber or Optional Factory Fitted Steel

Every up and over door requires a fixing frame to mount to the masonry. The door is supplied as standard to hang directly to an existing sound timber frame. You can also specify an optional factory fitted galvanised steel sub frame powder coated in matching Traffic White:

• 60mm Frame Profile (Canopy Only): Slimmer side frame legs (effective 55mm visible face) designed to minimise drive through loss when installing between narrow brick piers on canopy doors.
• 75mm Frame Profile (Canopy or Retractable): Heavy duty frame profile (effective 70mm visible face) providing maximum rigidity and fixing strength. Required as standard on all retractable doors and optional on canopy models.
• Easy Installation: When ordered with the steel frame, the door leaf, springs, tracks, and side arms arrive pre assembled as one rigid unit, guaranteeing true square alignment straight off the lorry.

Standard 2 Point and Optional 4 Point Locking

Garador steel doors are engineered around robust physical security to resist forced leverage:

• Standard 2 Point Locking: Operated by an ergonomic black exterior handle and internal euro profile cylinder. Solid steel locking rods shoot sideways from the centre lock into the steel frame jambs, keeping the panel firmly anchored.
• Optional 4 Point Security Upgrade: You can upgrade your door with Garador 4 point locking. This extends steel rods and slam latches into all four corners of the door panel simultaneously, significantly increasing pry bar resistance against opportunistic burglary attempts.

Why Choose Garador?

• Engineered and Built in Britain: Manufactured in Yeovil, Somerset, ensuring fast parts availability, solid build tolerances, and proven UK customer support.
• Anti Drop Safety System: Integrated safety devices on canopy gear prevent the panel from falling unexpectedly in the rare event of a spring or cable break. Retractable doors use enclosed multi spring coils to eliminate finger trap hazards.
• Weather and Threshold Practicalities: Fully galvanised steel construction with factory polyester powder coating on both faces. Please note that up and over doors do not include a bottom rubber weatherseal as standard; if your floor threshold is uneven or subject to driven rain, an optional floor mounted rubber draught strip can be added on site.

Order the Garador Carlton Steel Up and Over Door in Traffic White at our limited special offer price, supplied complete with an ergonomic black exterior handle and twin point locking as standard.

The door leaf is fully factory powder coated on both sides in Traffic White (RAL 9016). This provides a hard wearing, low maintenance finish that requires no initial decorating. If you ever wish to paint the door a bespoke colour in the future, this factory polyester coating serves as an ideal smooth primer base.

Operating Mechanism Options

This door is available with your choice of two factory fitted mechanical lifting systems, supplied ready to fix directly to an existing sound timber frame:

• Canopy Operating Gear: Counterbalanced by an overhead torsion spring with vertical side tracks. As the door opens, one third of the leaf forms an external canopy. It leaves your entire garage ceiling space clear of horizontal tracks and preserves your maximum clear drive through width at wing mirror height. Primarily designed for manual hand operation.
• Retractable Operating Gear: Uses side mounted multiple tension springs and horizontal ceiling level tracks that guide the entire door leaf safely inside the garage. Retractable gear provides exceptionally light manual travel and is the required, certified choice if you plan to add a remote controlled electric operator.

Optional Factory Fitted Steel Sub Fixing Frame

While you can hang the door to a treated timber frame, we strongly recommend choosing the optional factory fitted Garador steel box section sub frame:

• Fast and Accurate Installation: The steel sub frame arrives already bolted to the door leaf with springs, side arms, and tracks pre aligned from the factory. You simply position the entire rigid assembly into the opening, square it up, and secure it.
• Zero Timber Maintenance: Eliminates timber goalposts that absorb moisture, rot at the base, split, and require regular repainting.
• Greater Security: The tight steel to steel rebate leaves minimal pry gaps, significantly reducing leverage points for forced entry compared to timber frames.
• Profile Choices: Available in a 60mm frame profile (effective 55mm per side on canopy doors) to maximise drive through width between narrow brick piers, or a heavy duty 75mm frame profile (effective 70mm per side, standard for retractable doors and optional on canopy).

Canopy mechanism with steel frame

Retractable mechanism with steel frame

Optional 4 Point Security Locking Upgrade

Standard locking uses solid steel rods engaging into the side frame legs. You can choose to upgrade to Garador 4 Point Locking, which extends additional rods and latches into all four corners of the door panel simultaneously. This locks both top and bottom corners firmly to the steel frame, providing exceptional physical resistance against crowbar and lever attacks.

Optional GaraMatic Electric Automation

If you choose the retractable mechanism, you can add a genuine Garador ceiling mounted operator:

• GaraMatic 9: Includes two 4 button hand transmitters with 868 MHz encrypted frequency, 20cm per second opening speed, and energy efficient LED lighting.
• GaraMatic 10: Features higher torque, opening speeds up to 25cm per second, integrated Bluetooth smartphone connectivity, and two chrome tipped transmitters.
• Canopy Automation: If automating a canopy door, select the optional Garador Canopy Bow Arm Converter to link the door panel correctly to the electric motor boom.

Operating Mechanism Options

Canopy Operating Gear (Manual Specialist)
Canopy gear travels within vertical tracks flush to the frame and is counterbalanced by an overhead zinc coated torsion spring and cast alloy drums mounted above the door leaf. In the open position, approximately one third of the door height extends forward past the frame to form a canopy over the driveway.

• Maximum Usable Width: Because tracks do not intrude into the opening, canopy gear preserves your maximum drive through clearance at wing mirror height. Nominal drive through clearance is 40mm less than opening width and 130mm less than opening height.
• Ceiling Clearance: Leaves your garage ceiling completely clear of horizontal tracks, making it the best choice where high shelving, rafters, or roof trusses must remain unobstructed.
• Anti Drop Safety: Fitted with an integrated anti drop safety mechanism that prevents the door from falling in the unlikely event of a spring or cable break.
• Single Canopy Doors Include: Zinc coated torsion counterbalance spring, cast alloy drums, 2 point rod locking, ergonomic black handle, and internal euro cylinder lock.

Retractable Operating Gear (Automation Ready)
Retractable gear retracts the door leaf completely inside the garage along horizontal overhead tracks supported by wall or ceiling suspension brackets. When open, no part of the door panel protrudes outside the building.

• Automation Specialist: Connects directly to an electric boom operator towing arm with no extra brackets required.
• Drive Through Clearance: The lifting side pivot arms sit between the frame legs at vehicle wing mirror height. Nominal drive through clearance is 105mm less than opening width, and 110mm less than opening height.
• Safety and Construction: Features enclosed multi spring cassettes and pivot arm covers to eliminate finger trap risks, plus a secure parking detent to stop uncontrolled closing. Retractable single door panels are constructed without a rear back brace.
• Single Retractable Doors Include: Multiple spring side packs, overhead tracks, 2 point rod locking, ergonomic exterior handle, and euro cylinder lock.

Sub Frame Options: Timber or Factory Fitted Steel

Garador doors require a fixing sub frame to mount to the garage brickwork. The door panel is supplied as standard to fit to an existing, sound timber sub frame. You can also choose an optional factory fitted white steel sub frame:

• 60mm Steel Frame Profile (Canopy Only): Slimmer frame legs (effective 55mm per side) designed to minimise drive through width loss when installing between brick piers on canopy doors.
• 75mm Steel Frame Profile (Canopy or Retractable): Heavy duty frame profile (effective 70mm per side) providing maximum rigidity and fixing strength. Required on all retractable doors and optional on canopy models.
• Factory Pre Assembled: When ordered with a steel frame, the door leaf, springs, and tracks arrive pre fitted directly to the frame, ensuring true square alignment and saving substantial time on site.

Locking and Security

• Standard 2 Point Locking: Solid steel rods shoot out from the central euro profile cylinder into the side frame jambs, providing dependable mechanical protection.
• Optional 4 Point Corner Locking: You can upgrade your door to Garador 4 point locking. This adds additional steel rods and latches to engage all four corners of the door panel simultaneously, giving maximum physical resistance against pry bar attack.

Electric Automation: GaraMatic 9 and GaraMatic 10

Garador doors can be automated using genuine Garador GaraMatic ceiling mounted electric operators. Both models feature automatic mechanical latching inside the boom rail to prevent forced lifting, automatic safety obstacle reversal, soft start and soft stop to reduce spring wear, and low standby power consumption under 1 watt.

• GaraMatic 9: A fast, dependable operator delivering 600N pull and push force (750N peak force) with a travel speed up to 20cm per second. Features an energy saving 10 LED courtesy light and includes two 4 button micro hand transmitters operating on secure 868 MHz bi directional radio frequency to prevent signal cloning.
• GaraMatic 10: A more powerful operator delivering 650N pull and push force (800N peak force) and a faster opening speed up to 25cm per second. Features an adjustable 20 LED courtesy light, integrated Bluetooth receiver for smartphone operation via the Garador BlueSecur app, and two chrome tipped 4 button hand transmitters.

Automating Retractable Doors vs Canopy Doors:

• Retractable Doors: Connect directly to the GaraMatic boom towing arm straight out of the box with no extra parts needed.
• Canopy Doors (Bow Arm Converter): Automating a canopy door requires an optional Garador Canopy Bow Arm Converter. The converter attaches to the top of the door leaf and translates the horizontal pull of the GaraMatic trolley into the correct vertical and tilting geometry needed to lift a canopy panel. Fitting a bow arm converter reduces your drive through height by roughly 120mm to 150mm.

Canopy Doors - Installation Instructions PDF >

Retractable Doors - Installation Instructions PDF >

Installing a Garador Steel Up and Over Garage Door

Installing a Garador steel up and over garage door is a relatively simple job when the door is supplied with the matching factory-made steel box section sub frame. In most cases this combination gives you the quickest, neatest and most reliable way to get the door in and working properly.

Why Use the Steel Sub Frame

The steel box frame is manufactured square and already matched to the door panel and lifting gear, so you are not fighting with twists, shims or odd gaps like you often are with a site-built timber frame.

Many Garador up and over doors are delivered already hung in this frame, with the gear set up at the factory, which means you are lifting one complete unit into the opening instead of building it up piece by piece.

Because the frame and door are designed to work together, the clearances around the edges are tighter and more consistent, which helps with weather sealing, security and long‑term smooth running compared with most timber frames.

On canopy gear in particular, using the steel frame keeps the installation very straightforward – you are mainly concerned with getting the frame level and square, fixing it off and then doing a final check and adjustment.

Preparation and Measuring

Start by checking that the structural opening is suitable for a standard steel-framed Garador door: measure width and height, check everything is reasonably square, and make sure the brick or concrete reveals are sound enough to take fixings.

Decide whether you are fitting the frame behind the brickwork or between the reveals, as this affects what you see from the outside and how much tolerance you have for packing and sealing.

Confirm that you have the correct headroom for the chosen canopy or retractable gear and for any future electric operator, and refer to the current fitting instructions for the specific model if you are unsure.

Core Installation Steps (with Steel Frame)

Lift the door and frame assembly into the opening and support it so the head and both uprights are level, plumb and centred, then check the diagonals to make sure the frame is truly square.

Fix through the prepared holes or brackets in the steel frame using suitable frame fixings into the surrounding masonry, tightening them in stages and rechecking alignment as you go.

When the frame is firmly secured and the door moves freely without rubbing or binding, remove any transit brackets, screws or packing used to lock the gear for transport, following the manufacturer’s instructions.

Fit the external handle set and locking bars, then adjust so the latches engage properly in the frame keeps and the door closes down evenly onto the frame on all sides.

Fine Tuning and Sealing

Operate the door several times to make sure it moves smoothly and feels balanced. If it does not stay put in a half open position or feels too heavy, adjust the springs and cables only as described in the fitting instructions.

Look at the gaps between the door and frame; they should be even all round. Fit or tweak any seals to cut down on draughts and water ingress where required.

Finally, check the clear drive through height and width to confirm vehicles can enter comfortably and that none of the lifting gear fouls the opening.

Why It’s Simpler Than a Timber Frame

With a timber sub frame you first have to build and fix the frame, then spend time getting it braced, square and solid before you even start hanging the door and setting up the gear. The purpose‑made steel frame largely removes that stage because it is already straight and correctly sized.

The steel frame is supplied pre-finished, generally works out more economical than a good quality timber frame, and does not need priming and painting on all faces before you can install it, which saves both labour and ongoing maintenance.

Because the door and its steel frame have been designed and tested as a set, using the factory frame helps ensure the door operates as it should in terms of safety, ease of use and durability, and it also gives a good base if you later add an automatic operator.

Garador Steel Up & Over Garage Doors – Manufacturer Warranty Details

When you purchase a Garador steel Up & Over garage door through Garage Doors Online, your door is backed by Garador’s official manufacturer warranty, ensuring long term reliability and peace of mind.

Summary of Warranty Periods

• 10 Year Limited Warranty: Covers the safe and reliable operation of the complete steel door leaf, the factory steel sub fixing frame (where supplied), and the primary mechanical chassis structure against manufacturing or material failure.
• 5 Year Guarantee on Operating Components: Covers the counterbalance springs, wire cables, track rollers, hinges, and guide rollers under normal domestic use (defined as up to 5 door open and close operations per day).
• 5 Year Operator Warranty (GaraMatic Motors): If supplied with an electric GaraMatic operator, the mechanical motor drive, boom rail, and internal electronic control board are covered for 5 years.
• 2 Year Radio & Accessory Warranty: Covers remote control hand transmitters, radio receivers, external wall consoles, keypads, and safety accessories.
• 6 Month Replacement Parts Cover: Genuine replacement parts fitted under warranty carry a 6 month guarantee or the remainder of the original warranty term, whichever is longer.

Warranty Conditions

For your warranty to remain fully valid:

• The door and any automated equipment must be installed, aligned, and adjusted in strict accordance with Garador’s official installation and user instructions.
• The product must be used purely for domestic purposes and operated within its specified design limits.
• All mechanical pivots, bearings, rollers, and latches must be inspected periodically and kept clean and lightly lubricated.
• Painted polyester finishes should be washed down periodically with warm water and a non abrasive sponge to remove atmospheric road dirt and salt deposits.
• Any accidental chips or surface scratches must be touched up promptly using suitable touch up paint to prevent oxidisation or corrosion spreading.
• Repairs or adjustments must be carried out using only genuine Garador replacement parts.

*Warranty cover applies to the original purchaser at the registered delivery and installation address and is non transferable.

Standard Exclusions

The manufacturer warranty does not cover:

• Normal wear and tear beyond specified guarantee cycles.
• Consumable items such as handset batteries, fuses, and internal light bulbs.
• Cosmetic transit or site damage (such as scratches, scuffs, or dents) occurring after delivery or during third party installation.
• Damage caused by external chemical influences, fire, flood, standing water, road salt, or abnormal environmental conditions.
• Installations in aggressive coastal or high humidity marine environments (within 3 miles of the sea) unless an appropriate specialist coastal specification was approved prior to purchase.
• Dismantling, re-installation, or courier carriage costs incurred during a claim.

Making a Warranty Claim

In the unlikely event of a defect, please have the following information ready:

• Your original Garage Doors Online order number or invoice.
• The product serial number (located on the silver data plate on the rear edge of the door leaf).
• A clear description and photographs showing the door issue and overall opening.

Please send these details to Garage Doors Online customer support, and we will liaise directly with Garador technical services on your behalf.

Garador Measuring & Sizing Dimensions (Special Offer Sizes)

When ordering a Garador up and over door, the ordering size code relates to the nominal door panel size (the internal opening size when fitting into a traditional on-site timber frame). All dimensions in the chart below are listed in millimetres (width x height).

Understanding Steel Sub Frame Dimensions:
The optional factory-fitted steel sub frames use true 60mm wide profile legs for Canopy doors and 75mm wide profile legs for Retractable doors. Because the factory steel-to-steel interface has much tighter engineering tolerances than an on-site timber frame, the internal clearance between the steel frame legs is 10mm tighter overall (5mm per side) than a timber frame opening. This gives the exact finished outside frame dimensions below:

• Steel Framed Canopy Doors (60mm Frame): Overall Width = Nominal Width + 110mm | Overall Height = Nominal Height + 58mm
• Steel Framed Retractable Doors (75mm Frame): Overall Width = Nominal Width + 140mm | Overall Height = Nominal Height + 58mm

*Fitting tolerance note: If installing between the brickwork reveal, remember to add approximately 10mm to the width and 5mm to the height over the Overall Frame Size when checking your structural brickwork opening. If installing behind the reveal onto internal piers, the frame fixes flat against the inside face of the garage.

 *No fitting clearance allowed. If door is fitted between the brickwork a minimum of 10mm clearance over the width and 5mm over the height should be added to the overall frame size when selecting the door.
