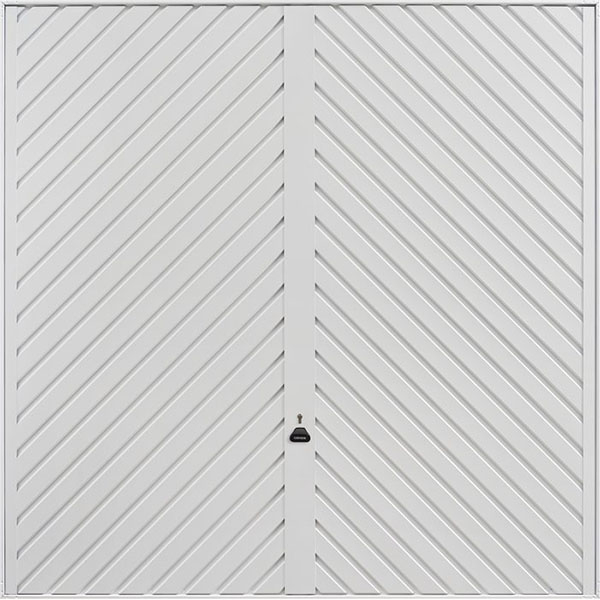

The Garador Chevron is a steel up and over garage door with a ribbed door design. Constructed from high grade galvanised steel this door offers great value for money and looks good on most homes.
CURRENTLY UNAVAILABLE
CURRENTLY UNAVAILABLE
CURRENTLY UNAVAILABLE
CURRENTLY UNAVAILABLE
1
Choose Your Sizes
We're ready to help youCall us on 01926 463 888Office Hours: Mon - Fri 8:30 - 17:30
The Garador Chevron steel up and over door benefits:
> Full range of sizes including doubles and made to measure
> Strong box section chassis with superior lifting gear
> Matches most modern and traditional homes
> Secure euro cylinder with solid locking rods
> Low maintenance and long lasting
Factory Fitted Steel Fixing Frame We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.
Retractable mechanism with steel frame

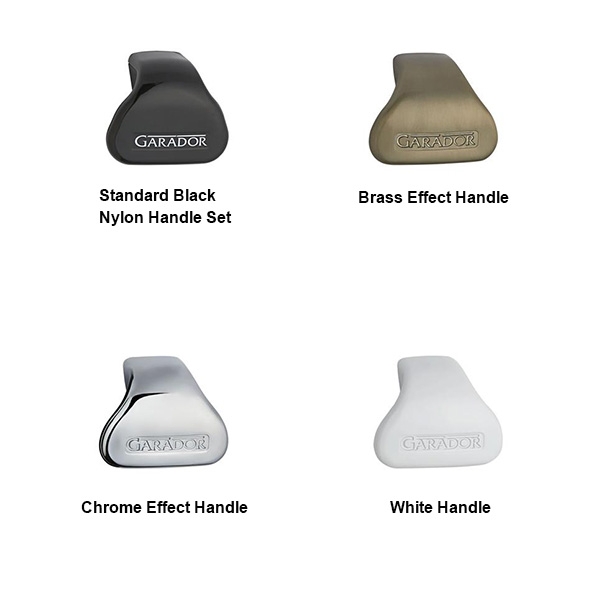

Choose Handle Option Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.
Extra Security Locking For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.
The improved security of a locking latch in each corner protects against forced entry.
Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.
The ‘De Latch Security Locking’ system is not suitable for canopy doors.
Emergency External Release Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.
Remote Control Electric Operator Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money. The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards.
Retractable Gear - The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.
The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.
Double retractable doors open along horizontal tracks inside the garage and travel back into the garage space when opened.
Retractable doors are ideally suited to automatic operation.
Garador steel up and over doors use a high quality powder or foil coated finish in RAL 9016 White.
White (RAL 9016) doors are supplied unwrapped as standard.
Installation Instructions are provided with every door.
Warranty
Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.
GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.
Internal Frame Size
(On-site timber frame) width x height
(mm x mm)
Frame kit for double door
Overall frame sizes shown* width x height
(mm x mm)
1076
3049 x 2286
3189 x 2344
1166
3354 x 1981
3494 x 2039
1170
3354 x 2136
3494 x 2194
1176
3659 x 2286
3494 x 2344
1266
3659 x 1981
3799 x 2039
1270
3659 x 2136
3799 x 2194
1276
3964 x 2286
3799 x 2344
1366
3964 x 1981
4104 x 2039
1370
3964 x 2136
4104 x 2194
1376
3964 x 2286
4104 x 2344
1466
4269 x 1981
4409 x 2039
1470
4269 x 2136
4409 x 2194
1476
4574 x 2286
4409 x 2344
1566
4574 x 1981
4714 x 2039
1570
4574 x 2136
4714 x 2194
1576
4879 x 2286
4714 x 2344
1666
4879 x 1981
5019 x 2039
1670
4879 x 2136
5019 x 2194
* No fitting clearance allowed. If door is fitted between the brickwork a minimum of 10mm clearance over the width and 5mm over the height should be added to the overall frame size when selecting the door.
