Garador Windsor (White) Steel Up and Over
Garador
Garador Look at our customer reviews on trustpliot
Up and Over Steel GEAR TYPE: Retractable

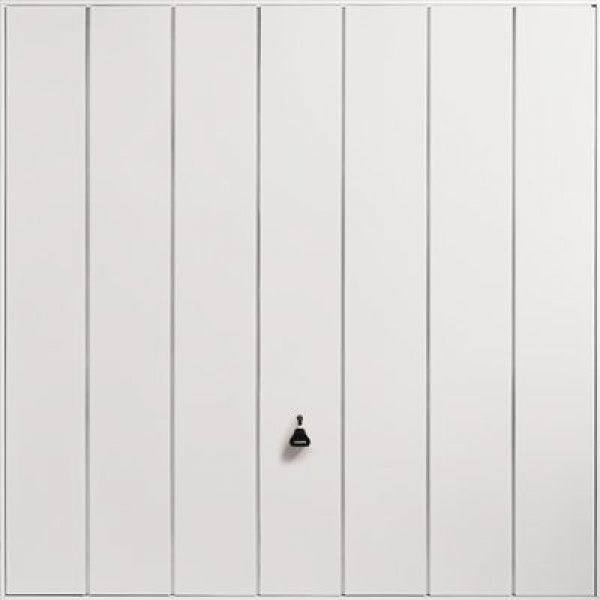

The Windsor is a reliable steel up & over garage door with a modern look, that is perfect for homes modern and new build homes. Constructed from high grade galvanised steel, this door has a durable powder coat finish and a rivet free panel for an ultra smooth appearance.

  • Fully retractable mechanism as standard
  • UK Manufactured for over 60 years
  • High Quality Galvanised Steel
  • 10 Year Warranty
1
Choose Your Sizes
Web Price from: £1,977.60 Inc. VAT
£1,648.00 Ex. VAT

The New Garador Windsor Steel Up and Over Garage Doors use a high quality powder or foil coated finish in RAL 9016 White.

White (RAL 9016) doors are supplied unwrapped as standard.

Factory Fitted Steel Fixing Frame
We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.

  Retractable up and over door
Retractable mechanism with steel frame


Choose Handle Option
Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.

Garador Handle Options

Extra Security Locking
For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.

The improved security of a locking latch in each corner protects against forced entry.

Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.

The ‘De Latch Security Locking’ system is not suitable for canopy doors.

Emergency External Release
Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.

Remote Control Electric Operator
Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money.  The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards. Short K boom is included with this motor, it will be suitable for doors up to 2500mm high.



Retractable Gear - The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.

The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.

Double retractable doors open along horizontal tracks inside the garage and travel back into the garage space when opened.

Retractable doors are ideally suited to automatic operation.

GaraMatic 10 Peak force: 800 N

Garador electric operators come as standard with two hand transmitters (one 5-channel hand transmitter and one 2-channel hand transmitter). For additional safety and ongoing security the radio hand transmitters select a code from more than 1 billion possibilities.

Installation Instructions are provided with every door.

Warranty

Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.

GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.

Steel Doors: 10-year Warranty. Replacement Parts: 6 months.

The Warranty does not cover damage caused through:

> Normal wear and tear

> Improper installation

> Negligent care and maintenance

> Improper initial and subsequent operation

> Negligent or wanton destruction

> External influences such as fire, water, salts, alkaline solutions, acids, abnormal environmental influences

> Mechanical damage through improper transport and fitting

> Priming and other surface protection treatments

> Repair by non-qualified persons

> Using non-Garador parts without the approval of the Manufacturer

> Remove of the product number or making it unidentifiable

Garador Up and Over Service and Support: Information on operation, maintenance and cleaning of your garage door.
