gliderol roller shutter garage doors in steel

DOWNLOAD INSTALLATION GUIDE PDF >

Minimum Clearance Required per side of structural opening for installation purposes - not ordering
Door Type Manual Door Automatic Door
    Motor side only
'A' series (up to 3400mm wide) 90mm 90mm
'AA' series (over 3400mm wide) 125mm 125mm
'AA' series doors with Windlock option 140mm 140mm

glidrol schematic drawing

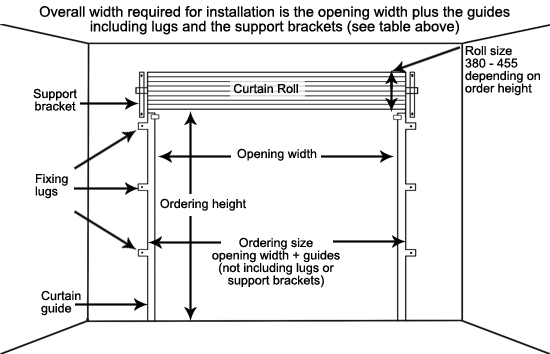

Steel Line roller garage door key measurements










The diagram shows the key areas to be aware of when measuring and installing a Gliderol roller door to the inside face of a garage structural opening. The door also can be installed inbetween a structural opening but would require timber frame uprights to install the curtain guides and support brackets to and they would need to be the correct size width according to the requirements of the overall width for installation (see DIY guide). The curtain roll would also have to be accomodated underneath a lintel in most of the inbetween install scenarios requiring the creation of a false fascia of some kind to hide the roll from the exterior.

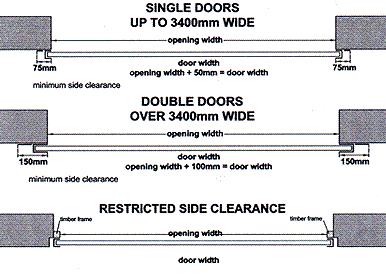

gliderol roller door dimensions

gliderol roll shown end on with support bracket gliderol steel roller door with bracket support
