The Cedar Ashbourne brings daylight into your garage through a glazed band across the top of each leaf, with vertical tongue and groove cedar boarding below. Choose plain or stippled toughened glass with square, diamond or no leading. Made to measure up to 2743mm wide and 2438mm high.
Cedar Ashbourne Side Hinged Timber Garage Door
If you want a timber garage door that lets the light in without losing the traditional boarded look, the Ashbourne is the place to start. A band of glazing runs across the top of each leaf, above vertical tongue and groove cedar boards, so from the driveway the pair reads like a classic coach house door.
It is also the only door in our Cedar side hinged range with a choice of leaded glazing. Square leading gives a neat cottage window feel, diamond leading suits Tudor style and Arts and Crafts houses, and plain glass with no leading keeps the look simple and uncluttered.
Glazing Choices
All glazing is 4mm toughened safety glass. Plain glass gives the clearest view and the most daylight, which is ideal if the garage doubles as a workshop or hobby space. Stippled glass still brings in light but obscures what is stored inside, a sensible choice where the garage faces a road or footpath. Either glass can be combined with any of the three leading options.
How the Ashbourne Is Built
Each leaf has a solid western red cedar outer frame, with the stiles and rails morticed and tenoned, glued and wedged. Below the glazing, the boards are glue bonded to solid cedar cross rails behind, which keeps the boarded section flat and rigid on a door that hangs from one edge.
Where It Works Best
The Ashbourne suits Victorian and Edwardian houses, period cottages and older detached homes where the original garage or outbuilding doors would have had windows. It is just as convincing on a new build with traditional detailing, particularly where the house has leaded or small paned windows that the garage can echo.
Finish and Hardware
Mid tones such as Golden Oak, Medium Oak and Teak frame the glazing well without making the door feel heavy. Black Traditional hardware, with long hook and band hinges across the boards, suits the coach house character, while the Modern pack with butt hinges gives a quieter finish on a more formal house.
Ashbourne at a Glance
- Glazed top section on each leaf over vertical tongue and groove boarding
- 4mm toughened safety glass, plain or stippled
- Square, diamond or no leading
- Solid western red cedar frame, mortice and tenon jointed
- Made to measure up to 2743mm wide and 2438mm high
Options for Cedar Side Hinged Garage Doors
Every Cedar Door side hinged garage door is made to measure for your opening. Work through the dropdown menus in the order they appear on the page to build your door specification and calculate your price.
1. Ordering Sizes
Doors are priced in metric size bands. First, select the width band and height band at or just above your required ordering size:
• Width bands: up to 2134mm (7ft 0in), up to 2438mm (8ft 0in), or up to 2743mm (9ft 0in)
• Height bands: up to 2286mm (7ft 6in) or up to 2438mm (8ft 0in)
When you proceed to the next step at checkout, you will see two input boxes to enter your exact width and height in millimetres. Cedar Door ordering sizes are always the internal frame opening size (measured between the inside faces of the timber frame legs, and from the finished floor to the underside of the frame head).
* Important: Do not deduct leaf clearance from the internal frame size, as the factory calculates the working tolerances for the leaves. However, if you are measuring bare brickwork and buying a new 70mm x 90mm timber frame with the door, remember to deduct the frame leg widths, frame head height, and brickwork fitting tolerance first. Full step by step guidance is on the Measure tab.
2. Factory Finished Door Colour Options
• Not required (base coat stain only): Supplied dipped in a Remmers Light Oak base coat at no extra cost. This is temporary transit protection only, so you must apply a full microporous exterior top coat to both faces and all four edges immediately upon installation.
• Factory finished colour: Choose from eight standard translucent woodstain shades (Walnut, Dark Oak, Teak, Rosewood, Golden Oak, Medium Oak, Mahogany, or Light Oak) or jet black Ebony (priced separately). Your door leaves arrive fully factory coated on all faces and edges, ready to hang.
3. Choose Hardware Pack
Every door comes with a complete ironmongery pack including the primary lock for the leading leaf, stays, bolts, and all fixing screws. Choose between Standard Silver (included as standard) or Black finish (optional upgrade):

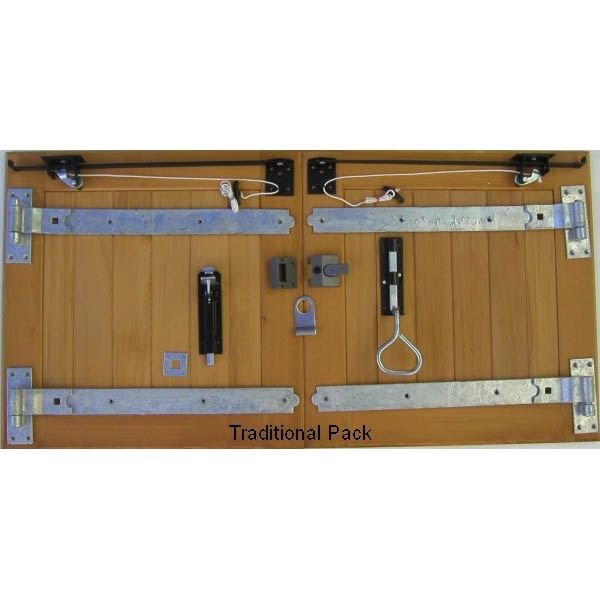

• Traditional Pack: 2 pairs of heavy duty 24 inch hooks and bands (surface mounted strap hinges), 1 pair of overhead garage door stays, 1 top bow handle bolt, 1 foot bolt, and primary leading leaf lock.
• Modern Pack: 3 pairs of 4 inch butt hinges (recessed between leaf edge and frame), 1 pair of overhead garage door stays, 1 top bow handle bolt, 1 foot bolt, and primary leading leaf lock.
* Note: Doors ordered over 7ft 6in (2286mm) high are automatically upgraded to a multi point locking system for extra rigidity and security.
4. Choose Leading Door Leaf
The leading leaf opens first for everyday foot access and carries the handle and lock, while the inactive leaf stays secured by the internal top bow bolt and bottom foot bolt until you need full width access. Choose Right hand leaf leading (standard) or Left hand leaf leading, always judged as viewed from outside on the driveway. Most homeowners pick whichever side lines up naturally with their garden path or house door.
5. Timber Fixing Frame
Cedar Door side hinged leaves arrive unhung ready to swing inside a timber frame. Select the option that matches your opening:
• Hardwood 70 x 90mm frame: Purpose made in 70mm x 90mm hardwood section to match your exact ordering size, supplied with loose door stops to pin in place once the leaves are hung. Select the up to 8ft wide (2438mm) option for doors up to 2438mm wide, or the wider frame option (over 2438mm) if your door falls in the up to 2743mm width band.
• Not required (timber frame fitted): Choose this if you are hanging the leaves into an existing sound timber frame or supplying your own. Any existing frame must be at least 70mm x 70mm section, solid, plumb, and square before you take your final ordering sizes.
6. Match Frame Colour to Door Colour
If you add a new hardwood fixing frame, it comes treated in base coat stain as standard (select No) for site finishing. To have the frame factory finished to match your door, select Yes - Standard Colours for any of the eight woodstain shades, or Yes - Ebony to match an Ebony door.
7. Glazing and Window Leading (Glazed Models Only)
Glazed models such as the Ashbourne, Edale, and Middleton include 4mm toughened safety glass in the top panels as standard, with a choice of Stippled (obscure for privacy while letting daylight in) or Plain (clear glass). On the Ashbourne, an additional dropdown lets you choose between No Leading, Square Leading, or Diamond Leading across its wide upper panes.
Technical Specification: Cedar Door Timber Side Hinged Garage Doors
Materials and Joinery Construction
Every Cedar Door side hinged garage door is crafted in the UK from selected kiln dried Western Red Cedar. Built using traditional joinery methods rather than a metal perimeter chassis, the outer solid cedar stiles, top rails, middle rails, and bottom rails are joined with mortice and tenon joints that are glued and wedged for long term strength and rigidity.
Depending on the door design you choose, the infill within that solid cedar framework uses one of three constructions:
• Tongue and Groove Boarded Designs (such as Bakewell, Haddon, Wessington, Ashford, Barlow, Matlock, Wirksworth, Buxton, plus Ashbourne, Edale and Middleton): 16mm kiln dried Western Red Cedar boards (vertical, horizontal shiplap, butt bead, or chevron) glue bonded to solid rear cross rails.
• Solid Raised Panel Designs (such as Chesterfield, Belper and Duffield): Heavy 20mm thick solid Western Red Cedar raised panels housed within substantial solid cedar rails.
• Recessed Panelled Designs (such as Castleton, Chatsworth, Wingfield and Hope): 9mm exterior WBP grade cedar faced plywood panels glue bonded into the solid cedar stiles and rails for high dimensional stability.
Made to Measure Sizing, Split and Handing
All Cedar Door side hinged models are built to order in an equal 50/50 split with double rebated centre meeting stiles. Online ordering covers internal frame widths from 1829mm (6ft 0in) up to 2743mm (9ft 0in) and heights from 1829mm (6ft 0in) up to 2438mm (8ft 0in), with widths up to 3048mm (10ft 0in) or non standard heights available on enquiry. Viewed from outside on the driveway, the right hand leaf leads as standard, and a left hand leading leaf can be selected at no extra cost.
Product Images and Visual Proportions Across Different Sizes
Please treat all product photographs and line illustrations shown on our website as an indicative guide based on a typical 7070 (7ft 0in x 7ft 0in / 2134mm x 2134mm) single garage door. Because every Cedar Door is individually set out and made to measure in the joinery workshop to match your exact millimetre dimensions, the final visual proportions of your door will naturally vary from the library image as sizes get wider, narrower, taller, or lower.
Depending on your ordered width and height, the joiners will adjust the number or width of vertical and horizontal cedar boards, the dimensions and aspect ratio of raised or recessed panels, the sweep of arched or Tudor top rails, and the size or pane proportions of top glazed windows so the joinery stays structurally balanced. If your opening is particularly wide, low, or tall and you want to check how the panel or glazing layout will look at your exact dimensions before manufacture, please ask our team prior to ordering.
Top Glazing Specification (Glazed Models Only)
Glazed designs including the Ashbourne, Edale, and Middleton are factory fitted with 4mm toughened safety glass in the upper sections as standard. You can specify either clear plain glass or obscure stippled glass for privacy. On the open pane Ashbourne design, you can also select plain glass (no leading), traditional square leading, or cottage style diamond leading directly on the page (leaded glass on other glazed models can be requested by phone).
Hardware Packs and Locking
All Cedar Door side hinged doors include a full ironmongery pack in the door price, supplied in Standard Silver as standard or Black as an optional upgrade, complete with fixing screws and bolts. The active leading leaf carries the primary lock and latch furniture, while the inactive leaf secures top and bottom into the frame head and floor. Any door ordered over 7ft 6in (2286mm) high is automatically upgraded to a multi point locking system for added security and leaf stability. Choose between:
• Traditional Pack: 2 pairs of heavy duty 24 inch hook and band strap hinges, 1 pair of overhead garage door stays, 1 top bow handle bolt, 1 foot bolt, and leading leaf lock.
• Modern Pack: 3 pairs of 4 inch stainless steel butt hinges, 1 pair of overhead garage door stays, 1 top bow handle bolt, 1 foot bolt, and leading leaf lock.
• Antique Pack (available on request): 2 pairs of 18 inch black antique tee hinges with matching black stays, bolts, and lock furniture.
Optional Timber Fixing Frames
Unlike pre framed steel doors, Cedar Door leaves are supplied unhung ready for hanging on site into an existing sound timber frame (minimum 70mm x 70mm section) or a new purpose made frame. Optional purpose made 70mm x 90mm Hardwood fixing frames machined specifically for side hinged doors are available on the page complete with loose door stops (supplied unassembled with mortice and tenon corner joints; Softwood frames are also available by request). Frames come dip treated in basecoat as standard, or can be factory finished to match your chosen door colour.
Basecoat and Factory Finishing
As standard, all timber door leaves are immersion dipped in a tank of Remmers Light Oak basecoat. Please note this dip coat provides temporary transit and fitting protection only; basecoat doors must be fully sealed on site immediately upon installation across both faces and all four edges using a breathable microporous exterior wood stain.
To save site painting work, you can upgrade to full factory finishing using Cedar Door's Remmers satin woodstain system in eight translucent timber shades (Light Oak, Golden Oak, Medium Oak, Dark Oak, Teak, Walnut, Mahogany, or Rosewood) or jet black Ebony (bespoke RAL or BS paint colours are also available on special quotation). A factory applied finish provides durable UV and weather protection that typically lasts up to 5 years before a light maintenance recoat is needed, depending on driveway exposure and elevation.
Natural Timber Character, Sourcing and Warranty
Because Western Red Cedar is an organically grown natural timber, natural variations in grain figure and colour tone from board to board are an inherent feature of the wood, particularly visible beneath lighter translucent stains. Cedar Door holds full PEFC Chain of Custody certification, ensuring all cedar is responsibly sourced from sustainably managed forests. Supplied with installation and care guidance and backed by a 2 year manufacturer warranty (subject to fitting and timber care instructions being followed).
* Illustration disclaimer: Product photos show a typical 7070 (2134mm x 2134mm) door for design reference only; board quantities, panel proportions, window sizes, timber grain, and stain shading will vary to suit your bespoke ordered dimensions (some studio photos may also show up and over versions of the same timber face pattern).
Installation Guidance for Cedar Timber Side-Hinged Doors
Professional Installation Recommended
Please note that Cedar timber side hinged garage doors are supplied ready for assembly and require a high level of joinery skill to install correctly. Although Western Red Cedar is a naturally lightweight timber, the precise nature of the work, including routing, morticing, and aligning, means we strongly recommend that installation is carried out by a qualified carpenter or an expert tradesperson experienced in hanging traditional timber doors.
Sub Frame Assembly and Alignment
If a timber sub frame has been supplied, it must be assembled, squared, and securely fixed into the garage opening before the door leaves are offered up. The timber frame must be perfectly plumb, level, and securely anchored to the brickwork. Any twisting or misalignment in the frame will prevent the door leaves from operating correctly or meeting seamlessly in the centre.
Hanging the Door Leaves
The door leaves and hardware are supplied separately, meaning the hinges must be accurately measured, aligned, and fitted on site. Depending on your chosen hardware pack, the galvanised hooks and bands, stainless steel butt hinges, or antique tee hinges must be carefully positioned and properly anchored into the solid cedar stiles and the timber sub frame to ensure smooth operation and perfect structural geometry.
Expert Lock and Hardware Fitting
Fitting the locking mechanism requires expert precision. The Yale lock requires accurate measuring, drilling, and morticing by your installer to ensure a smooth, secure latching operation without damaging the timber. Alongside the primary lock, all secondary ironmongery must be positioned and fitted on-site. This includes:
- Top bow handle bolts and bottom foot bolts for securely anchoring the fixed leaf
- Garage door stays to safely hold the doors open and prevent wind damage
- Any necessary handles, finger pulls, and optional multi-point locking systems
Clearances and Environmental Tolerances
Because Western Red Cedar is a natural material, it will marginally expand and contract in response to temperature and humidity changes. Your tradesperson must ensure that appropriate clearances and tolerances are maintained around the edges of the door leaves. This allows for natural timber movement without causing the doors to bind, rub, or stick within the frame during wetter months.
Warranty and Natural Timber Information
Warranty Period
Cedar doors and hardware come with a 2-year manufacturer's warranty for unfinished doors and a 4-year warranty for factory-finished doors. This covers structural integrity and manufacturing defects, provided the door is correctly installed and maintained. Please note that this warranty does not cover normal wear and tear items, nor does it cover natural timber variations or damage resulting from weather conditions and improper care.
Timber as a Natural Material
Cedar Door side hinged garage doors are manufactured from solid western red cedar, an organically grown natural material. As with all timber products used in external applications, the behaviour and appearance of the wood will be influenced by the environmental conditions in which it is installed and used. Cedar Door accepts no liability or responsibility for variations that occur as a result of the natural characteristics of the timber, including:
- Colour variation between boards, panels or between the door and any colour reference
- Natural grain variation, including close grain, wide grain or short grain
- Small knots, surface shakes, splits or grain lift inherent in the timber
- Lateral or longitudinal movement
- Splitting or shaking resulting from environmental acclimatisation
- Minor curvature as a result of moisture content or humidity variation
- Resin exudation
Timber substrates naturally expand and contract in response to changes in temperature and humidity. Moisture content variation may cause joints to open and close marginally, and some minor curvature may occur over time. Any curvature that develops under normal service conditions will not affect the long-term structural performance or working life of the door. These characteristics are considered inherent features of natural timber and are not classified as manufacturing defects.
Visual Inspection Standard
Cedar Door carries out a visual quality control check on each door prior to despatch. On delivery, the customer is required to carry out their own visual inspection of the door in natural daylight before installation takes place. The inspection should be conducted from a distance of 3 metres (10 feet). The door is considered acceptable if none of the following is readily visible from that distance:
- Marks or distortion attributable to the manufacturing process
- Minor indentations, marks or surface scuffs
- Minor paint or stain blemishes
An allowable deflection of up to 1in (25mm) applies to doors up to 8ft in width or height. Any defect or anomaly must be reported to the supplier within 48 hours of the goods being received. Cedar Door cannot be held responsible for any naturally occurring characteristic identified after installation has been completed.
Factory Finish and Coating
Doors supplied with the standard factory basecoat are finished with a dip immersion basecoat stain applied at the factory. This coating is intended for transit and temporary protection during installation and is not a permanent exterior finish. A full site-applied finish should be applied by the installer or customer before the door enters regular service.
Doors ordered with a factory applied colour finish are treated with a coloured woodstain at the factory. This finish has an erosion period of 5 years under normal service conditions. This is not a formal manufacturer's warranty but reflects the expected performance of the coating under regular maintenance. Cedar Door cannot guarantee exact colour matching due to the natural variation in cedar shading; brochure and sample colours are provided as a guide only.
Doors installed on south-facing elevations or in positions subject to prolonged or intense direct sunlight, particularly in darker colour finishes, may experience elevated heat uptake leading to abnormal timber movement or distortion. This is the responsibility of the buyer and is not covered under any Cedar Door warranty or liability provision.
Storage and Handling
To protect the door prior to installation, the following storage requirements apply:
- Keep the polythene shrink-wrap packaging in place until immediately before site coatings are applied
- Do not store the door in direct sunlight
- Do not expose the door to water contamination during storage
- Store the door upright at all times
- Protect from site contamination and weather exposure prior to installation
