Carteck Super Size Georgian (24 Colour Options) Insulated Sectional Door garage door Steel Carteck

Carteck Super Size Georgian Insulated Sectional Garage Door

It can often be a challenge to find a garage door that perfectly complements a traditional property when you have an exceptionally wide opening. The Carteck Super Size Georgian sectional door bridges that gap beautifully. By taking a classic raised cassette design and pairing it with commercial-grade lifting gear, this door provides a highly secure, traditional aesthetic across massive spans from 5500mm right up to 8000mm wide.

Classic Design on a Massive Scale

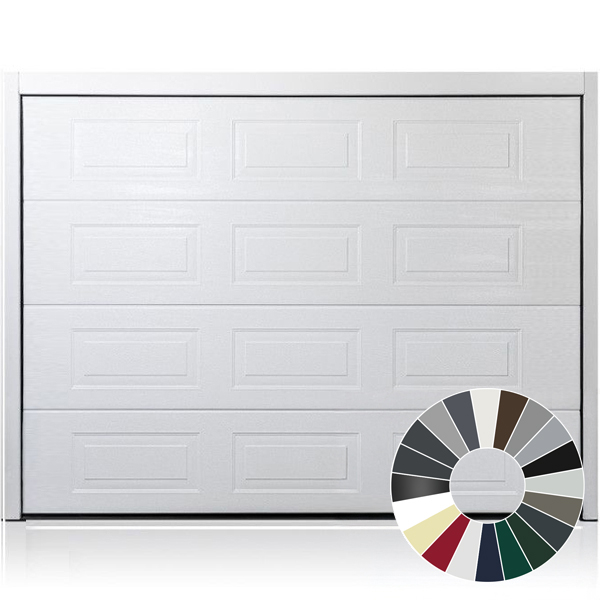

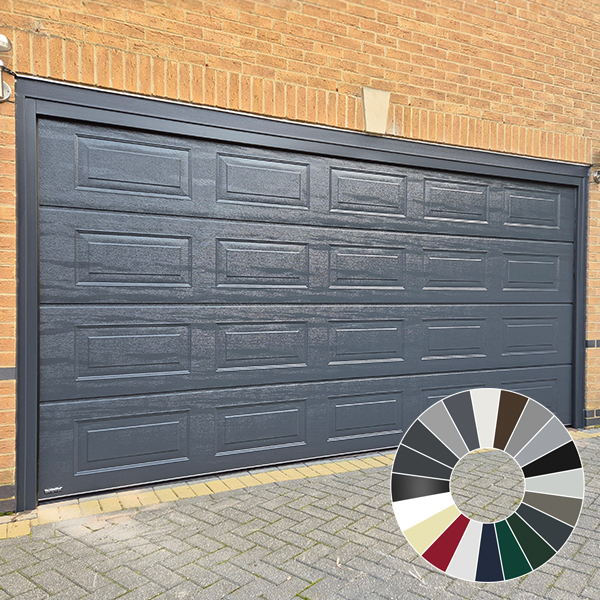

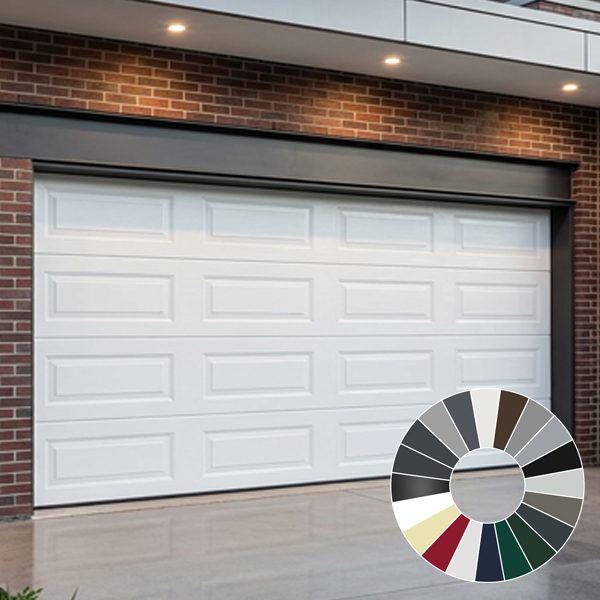

The defining feature of the Georgian design is the series of pressed rectangular cassettes that run across each panel section. On a door of this immense size, these cassettes do an excellent job of breaking up the sheer scale of the opening, ensuring the door doesn't look like a flat industrial shutter.

To perfectly complement this traditional raised appearance, the Georgian panels are exclusively supplied with a textured woodgrain surface finish. This highly practical texture not only enhances the classic style but also naturally helps to absorb and hide any small dents or scratches over time, keeping your extremely wide door looking smarter for longer.

Made to Measure for the Perfect Fit

Because period homes and bespoke outbuildings rarely have 'standard' sized openings, the Carteck Super Size range is manufactured as a made-to-measure door as standard. This ensures you get a precision fit for your specific width and height, completely avoiding the need for awkward structural alterations or unsightly timber infills that would ruin the traditional look of the garage.

Commercial Grade Engineering and Strength

When dealing with a door that spans 6, 7, or 8 metres wide, standard domestic hardware simply isn't robust enough. A basic door of this size would quickly begin to bow or rattle heavily under its own weight.

This insulated sectional door is engineered to completely avoid those issues. The 40mm thick double-skinned steel panels provide immense structural rigidity, keeping the door leaf perfectly straight. Every load-bearing component is heavily uprated, featuring commercial-grade tracks, heavy-duty ball-bearing rollers, and reinforced panel struts hidden on the inside of the door.

As standard, the massive weight of the door is safely balanced by a front-mounted torsion spring system. If you are dealing with restricted headroom inside the garage, a low headroom rear-mounted option is also available for doors up to 7750mm wide at an extra cost.

Heavy Duty Electric Operation and Safety

A door of this weight and scale requires a serious motor to lift it safely. Therefore, the Super Size range is supplied as a fully automatic door right out of the box. Depending on your exact measurements and garage setup, the door is powered by either the high-output Carteck DRIVE Pro 1100 rail operator or the heavy-duty Teckentrup Direct Drive motor, with options available for both single or three-phase power supplies.

With an automation system lifting such heavy panels, safety is absolutely critical. The door is factory fitted with an optical safety edge built directly into the bottom weather seal, alongside separate safety photocells. If either system detects an obstruction, the monitored safety edge ensures the door instantly stops and reverses. The package also includes two remote control transmitters as standard for convenient, everyday access without ever having to lift the door by hand.

Thermal Performance and Weather Protection

An 8-metre wide opening makes up a significant portion of your exterior wall. Without proper insulation, a large garage can quickly become damp and freezing cold. The 40mm thick foam-filled panels work alongside continuous soft rubber sealing around the top, sides, and between every individual panel joint to drastically reduce heat loss and block out cold draughts.

At the base of the door, a heavy-duty, rot-proof EPDM rubber floor seal sits firmly against the ground to help take up minor unevenness and keep driven rain out. Please always remember that a perfectly level floor is absolutely essential to achieve the best sealing results, especially across these very wide spans.

Finishes, Colours and Styling

Despite the commercial mechanics doing the hard work underneath, the exterior of the door is finished to a very high residential standard, allowing you to closely match the rest of your property.

• There are 24 standard finished colours to choose from, including 20 trend colours and 4 specific woodgrain effect colours like Golden Oak and Rosewood, which look particularly authentic when paired with the woodgrain surface texture of the Georgian panels.
• If you need a highly specific match for your property's exact windows or doors, you can also have ANY RAL colour mixed at an extra cost. Please email or call us to discuss the exact RAL colour and pricing if required.

Options to Configure Your Door

Choose Door Panel Colour Finish:
Select your preferred finish from our comprehensive range of 24 colours, which includes 20 modern trend colours and 4 highly practical woodgrain effects, all at no additional cost. To perfectly complement the traditional, classic style of the pressed cassettes, the Georgian panel design is exclusively available with a textured woodgrain surface finish.

* Please Note: Where the door is exposed to direct and lengthy sunlight, darker colours should generally be avoided to minimise the chance of the steel expanding under the heat.

Frame Legs to Match Door Colour:
Choose the colour you require for the outer steel frame system. Although Super Size sectional garage doors are exclusively fitted behind the garage opening so you don’t see the main sub frame, you will still see the inner edge of the frame legs. The standard colour is white, but you can upgrade to have these frame legs colour matched to your door panels for a much tidier overall look when viewed from the front.

Coastal Paint Upgrade:
If your property is situated near the sea, the airborne salt is highly corrosive to standard finishes. To ensure your garage door stands the test of time, you can specify the Coastal paint upgrade. This specialist finish is specifically designed to withstand harsh marine environments and is strongly recommended to protect your investment and maintain your warranty in coastal locations.

Because this is a specialist process for a made to measure door, please contact us directly via email or phone to discuss the exact Coastal paint pricing and details before placing your order.

Window and Glazing Options:
You can introduce natural light into your large garage by adding one or multiple window options to your door. Because this is the Georgian design, the window options are specifically rectangular so that they perfectly replace the raised cassette shape on the solid panel, maintaining the traditional layout of the door.

The window casements are made from a tough polymer and are double glazed as standard to make sure you maintain the thermal insulation benefits of the overall door. The casement frames themselves are factory finished in a colour to closely match the door panels.

The pricing for windows on a Super Size door depends heavily on the size and quantity of the glazing you require. Please contact us directly so we can provide you with the exact pricing and specific layout details for your project.

Direct Drive Motor Upgrade:
Big doors need serious power. Depending on your size and setup, you may need to upgrade to the Teckentrup Direct Drive motor, which is suitable for the heaviest doors over 6m wide. This commercial grade unit requires a dedicated 16-amp supply direct to your consumer unit. Its intelligent control ensures consistent, safe operation across massive spans.

* Please Note: A second form of access into the garage (like a side door) is strictly required if you select this motor, as external manual release systems are not available with the Direct Drive unit.

Wireless 2 Function Wall Switch:
This is a handy remote control device in the form of a wall mounted two button switch. It allows you to control one or two garage doors from inside your garage or home. It works exactly like a light switch but without any cables, using a battery powered remote control signal for operation. (Often referred to as Access Pack 2).

Specifications – Carteck Super Size Georgian Insulated Sectional Garage Door

The Carteck Super Size Sectional doors utilise 40mm thick insulated steel panels which are incredibly strong, rigid, and provide excellent thermal and acoustic performance across massive widths up to 8000mm.

The intermediate panel joints create a thermal barrier that is highly effective in reducing heat transmission, helping to maintain a more pleasant ambient temperature inside your garage.

• Panel Design: Features a classic Georgian cassette profile, providing a traditional raised panel appearance. To perfectly complement this pressed design, the panels are exclusively supplied with a practical woodgrain surface texture.
• Fitting Position: All Super Size sectional doors are designed to be fitted BEHIND the structural opening, not in between.
• Made to Measure: Manufactured as a purpose made door as standard to ensure the perfect fit for your specific opening.
• Spring Mechanics: Utilises a heavy duty front mounted torsion spring system as standard to balance the massive weight of the door. If you have restricted space above the opening, a low headroom rear mounted option is available for doors up to 7750mm wide at an extra cost.

Heavy Duty Electric Operation

Because of their immense weight, the Carteck Super Size doors are supplied with the highest level of safety features and commercial grade electric motors as standard.

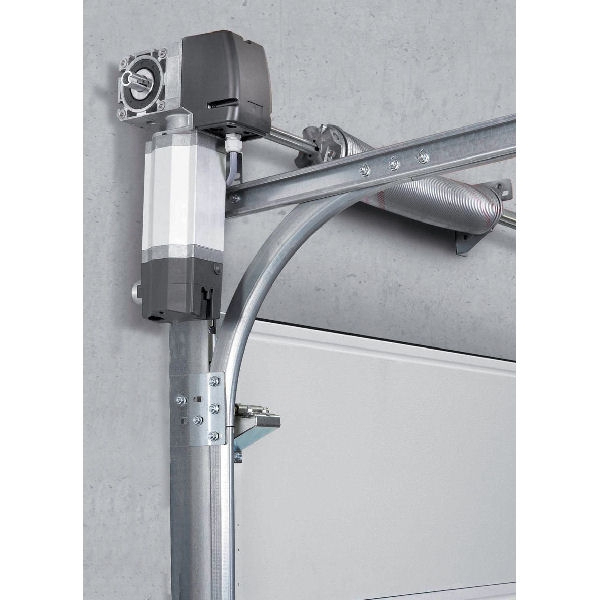

• Direct Drive Power: Big doors need serious power. Depending on your size and setup, the door is powered by either the Carteck DRIVE Pro 1100 rail operator or the Teckentrup Direct Drive motor, ensuring safe, intelligent operation at all times.
• Manual Override: All motors feature an integral manual override system in the event of a power failure.
• Optional Upgrades: No external handle is fitted as standard. If the garage is your only access point, an external emergency release will be required to allow you to open the door manually from the outside.

Comprehensive Safety Features

• Safety Edge Mechanism: The doors are factory fitted with a monitored optical safety edge mechanism which instantly stops and reverses the door if it comes into contact with an obstacle.
• Side Protection: A lateral guard is installed to help prevent hands from being accidentally caught between the frame and the runner rail.
• Finger Pinch Protection: Features patented finger pinch protection profiles on both the outside and inside of every door panel joint.

Weather Protection

• Weather Strips: The door is equipped with continuous soft rubber sealing strips at the sides, top, and between the individual sections across the entire width.
• Floor Seal: A heavy duty, rot proof bottom weather strip made from elastic EPDM rubber sits firmly against the floor. This will help compensate for minor variations in floor level to provide an improved barrier against debris and draughts. A level floor is essential for the best results.

Available Finishes and Colours

You can choose from 24 standard finished colours for the door panels, alongside the option to have ANY specific RAL colour mixed at an extra cost.

20 Trend Colours Available:

• Cream (RAL 9001)
• Light Grey (RAL 7035)
• Moss Green (RAL 6005)
• Quartz Grey (RAL 7039)
• Grey Aluminium (RAL 9007)
• Jet Black (RAL 9005)
• TT 703 Metallic Effect Grey
• Window Grey (RAL 7040)
• Fir Green (RAL 6009)
• Flame Red (RAL 3000)
• White Aluminium (RAL 9006)
• Anthracite Grey (RAL 7016)
• Sepia Brown (RAL 8014)
• Umbra Grey (RAL 7022)
• Steel Blue (RAL 5011)
• Slate Grey (RAL 7015)
• Bling White (TT 9016)
• Anthracite Textured (RAL 7016)
• Ice Crystal Grey Aluminium
• Chartwell Green (BS 14C35)

4 Woodgrain Effect Colours Available:

• Golden Oak
• Rosewood
• Night Oak
• Winchester


NEW Improved Bottom Rubber Seal Design

The new design is wider for a more forgiving seal between the door and the threshold. Remember, a new seal won't fix a broken floor but it will improve performance on a well prepared threshold!

Important Installation Guidance

Installing a Carteck Super Size sectional door is a significant project that differs from fitting a standard domestic garage door. Because of the commercial grade engineering and the massive scale of the components, specific installation rules must be followed.

• Behind the Opening Only: Unlike standard sectional doors which can sometimes be fitted between the brickwork, all Super Size doors must be installed as a face fit directly behind the structural opening reveal. This ensures the heavy duty frame is fully supported by the internal face of the brickwork or steelwork.
• Substantial Weights: The 40mm insulated panels are incredibly heavy at widths up to 8000mm. You will absolutely require extra manpower or mechanical lifting aids to safely move the panels into the garage and lift them into the tracks. Do not attempt to install a door of this scale alone.
• No Supplied Header: The Super Size frame legs are supplied in a galvanised finish and the door is provided without a top header fascia section. When fitted correctly behind the reveal, the side seals enclose the edge of the frame legs so they are not visible from the outside of the garage.
• Power Requirements: You must ensure you have the correct power supply available in the garage before installation begins. For the commercial Teckentrup Direct Drive motors, a dedicated 13-amp or 16-amp supply direct to the consumer unit is typically required.

We strongly recommend that a door of this size is installed by experienced professionals who are familiar with commercial grade lifting gear and torsion spring tensioning. If you are unsure about the structural requirements or clearances needed for your specific opening, please contact our team for advice before ordering.

Installation Instructions are provided with every door, or can be found here

Carteck Super Size Sectional Door Warranty

Your Carteck Super Size sectional garage door comes with a comprehensive manufacturer’s guarantee, designed to give you peace of mind that your investment is protected against both mechanical and structural defects.

10 Year Manufacturer’s Guarantee

The structural integrity of the door leaf and the fixed frame components are covered for 10 years. This includes:

• Rust Protection: A 10 year guarantee on the steel door panels against rust from both the inside and the outside.
• Panel Delamination: A 10 year guarantee against the steel skin splitting or delaminating away from the internal foam core.
• Frame Components: A 10 year guarantee on material and manufacturing faults for all immoveable frame parts, provided it can be proved that they are inoperative or their everyday use is impaired.
• Weather Seals: A 10 year guarantee on the floor seals, central panel seals, side seals, and the header seal against perishing or breaking down prematurely.

2 Year Mechanical Guarantee

Because the Super Size doors use commercial grade lifting gear to handle the massive weights involved, all mechanical moving parts are covered by a specific 2 year guarantee.

• All supersized sectional doors have a 2 year guarantee against any mechanical defects, covering items like the torsion springs, rollers, and hinges.

Coastal Applications and Paint Upgrades

If you live near the sea, the standard manufacturer's guarantee does not cover doors subjected to extreme environmental conditions, such as the highly corrosive influences resulting from a coastal climate with a high salt content in the air.

For these locations, we strongly recommend choosing the optional Coastal paint upgrade. This specialist finish is specifically designed to withstand the harsh, salty environment, protecting the steel and paintwork far more effectively than standard finishes. If you are installing the door in a coastal area, please contact us to discuss adding this essential upgrade to your order to ensure your door remains fully protected.

Important Note on Dark Colours

When choosing your door finish, please be aware that where doors are exposed to direct sunlight for long periods, dark colours should generally be avoided. Dark coloured doors will naturally undergo more thermal expansion due to heat absorption, and this expansion can temporarily affect the door's performance while the steel is hot.

Such instances are not covered by the manufacturer's guarantee because it is a natural characteristic of the metal. However, normal performance will always return once the door panels have cooled down.

The full Carteck Supersize Sectional Technical Specification can be downloaded here

Specification

DOOR: Sectional door double skinned PUR foam core, 40mm thick CarTeck panels. Outer surface finished in choice of 4 standard designs and all standard listed CarTeck colours. Inner surface stucco design, colour similar to RAL 9002. Sections have a centre seal, EPDM, header, and floor seals. Different order heights are made up from mixing panel sizes, 2 different bottom profile sizes and reduced top panel heights. Doors have reinforcing steel profiles on the rear of the panels.

FRAME: Door frame is made from hot dipped galvanised steel sections. Protective strips with EPDM sealing lips on both sides of the vertical tracks.

HARDWARE: Doors have galvanised frame legs and are supplied without a header strip. Hardware has galvanised finish, screwed hinged to all sections, adjustable rollers with ball bearings. Front or optional rear mounted torsion spring with load-bearing steel cables.

AUTOMATION: Electric 230V drive as standard, either direct or rail drive. Optical safety edge, hard wired to control system and photocells. Direct drive motor must have 13 amp supply direct to consumer unit. External release is not possible with direct drive motor, additional access must be available into garage.
