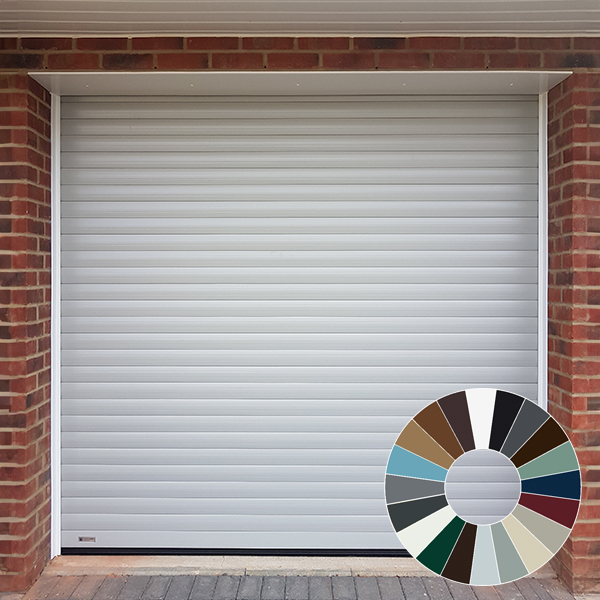

GDO Roll 77 (21 Colour Options) Aluminium Roller door - insulated
GDO
£667.20 Inc. VAT
£556.00 Ex. VAT
Roller door - insulated AluminiumGEAR TYPE: Roller Shutter
Using the most popular size of double walled aluminium insulated slats this roller door is a robust design and uses an electric control system with either hold to run, remote or smart control operation.
2 year Warranty as standard
Made to Measure size as standard
Suitable for inside face or inbetween fitting
12 popular colours to choose
1
Choose Your Sizes
We're ready to help youCall us on 01926 463 888Office Hours: Mon - Fri 8:30 - 17:30
NEW from GDO, this electric aluminium roller garage door is purpose made to the millimetre and is supplied as standard with remote control operation.
GDO insulated roller doors are manufactured in the UK by the leading garage door supplier SWS/ AlluGuard. Their decades of manufacturing experience ensure only the highest quality materials and production techniques are used, whilst the simplified design helps keep costs as competitive as possible.
When remote control handsets or smart control operations are used leading safety edge detection for preventing closure onto any obstacles and full compliance with UK regulations on the use of electric operated doors with remote operation. Available with wired or wireless safety edge.
Using 77mm double skinned aluminium slats this roller door is strong and offers good insulation in the mix too.
Made to measure sizes up to a maximum width of 5200mm including the guides either side.
Maximum height is 2900mm plus the height of the roll and endplates which is 300mm
The aluminium side guides are either 70mm or 90mm depending on the door width ordered.
Doors over 3000mm wide will have 90mm guides as standard so the clear opening width will be 180mm less than the Ordering Width.
The door curtain is available in 21 popular and striking high quality finish colours.
The door also has an internal manual winding handle system to operate in the event of a power failure. Optional low level manual override is available if you do not have another access door into your garage.

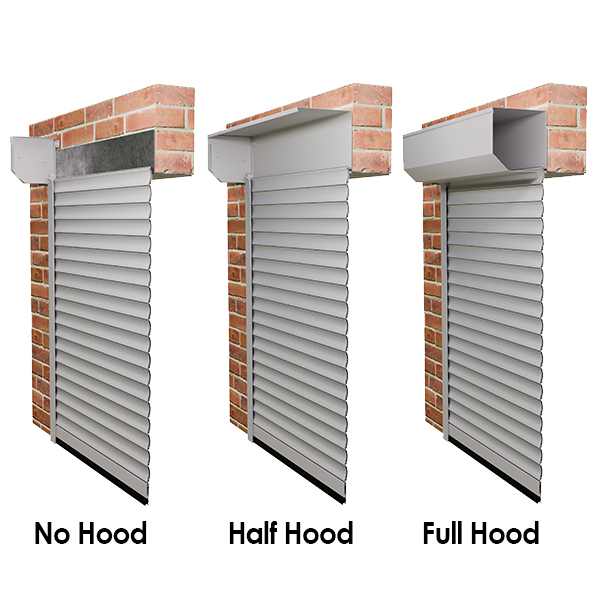

This No Hood cover model is perfect if your roller door is fitting totally behind the structural opening and is higher than 2.1m.
We also offer this door with the Full Hood cover as standard.
Domestic single and double width garage door. Light commercial use with less than 10 operations per day.
The GDO ROLL 77 is constructed from high quality 77mm deep double skinned aluminium slats with a foam filled core. It is a made to measure, electric operated roller garage door as standard, made to the exact millimetre in width and height.
The door is electrically remote operated as standard and incorporates an internal emergency manual release in case of a power failure. This is a winding process using a winding handle provided attaching via a hook to the eye of the motor drive. This can be specified as either on the left or right as viewed from inside the garage.
The door is supplied with 2 remote handsets and an internal wall mounted control panel with inbuilt receiver for the remote controls.

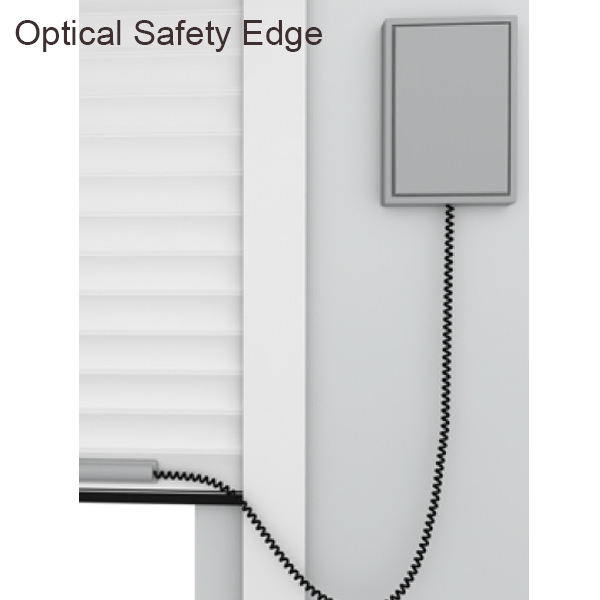

The bottom slat is extruded and supplied fitted with a rubber seal system incorporating an infra red beam internally. Any obstacle is detected when the door is operating and the door will instantly stop to prevent damage or injury.
The curtain of this door rolls around a steel barrel which is supported either side by steel endplates which have a dimension of 300mm x 300mm, which is the headroom required if you wish to hide the roll. Always allow for a maximum 50mm of curtain ‘hang down’ when the door is opened if the opening height is critical to you. This is the same on all roller garage doors.
Hand crank
Lined guide
ZF Lock

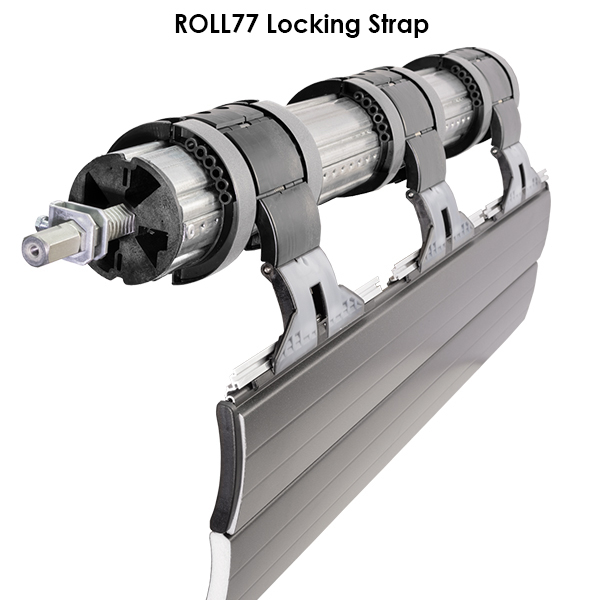

Barrel
safety brake
Door guides either side are either 70mm or 90mm wide and 34mm deep and the door is ordered using the ‘OVERGUIDE’ width from the total width of the curtain and guides combined.
The door can be fitted BEHIND or INBETWEEN the structural opening as required, but always check you have ordered the correct dimensions to take into account the guides and endplates (full hood cover if ordered is the same dimensions)
Ordering size is the Over Guide Width (OGW) x Guide Height (GH).
Doors up to 3000mm wide will have 70mm wide guides either side
Clear opening width = Ordering size less 140mm
Clear opening height = Guide height (Ordering size) less 50mm
Doors over 3000mm wide will have 90mm wide guides either side
Clear opening width = Ordering size less 180mm
Clear opening height = Guide height (Ordering size) less 50mm
(to allow for the bottom slat hang-down into the guide when door is open)
Maximum Width including guides is 5200mm
Maximum Height for guides is 2900mm (Total of 3200mm with the endplates and hood) with a maximum width of 4600mm

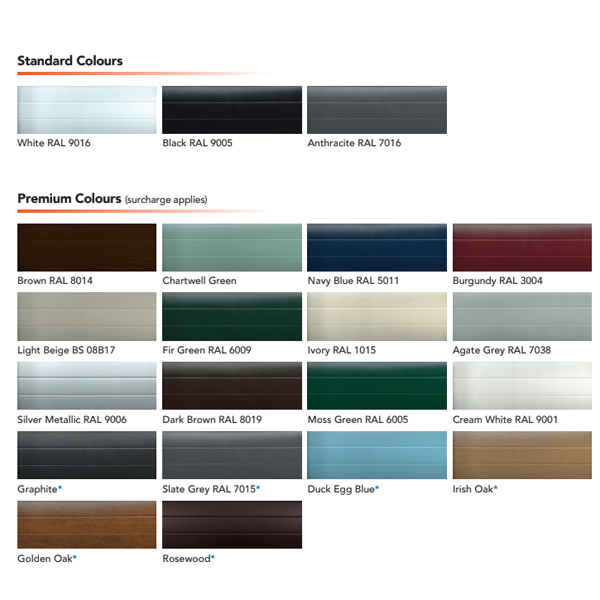

Standard Colours:
White (RAL 9016)
Anthracite Grey (RAL 7016)
Black (RAL 9005)
Please note: upon delivery, the accessory box will include a QR code to direct you to the most up-to-date installation instructions.
Warranty Terms & Conditions
Certificate of Guarantee
1.1.The following guarantees apply to GDO Roll 55 and Roll 77 Electric Button Control roller garage doors, subject to correct installation, maintenance and operation:
1.1.1.GDO Roll 55 and Roll 77 Electric Button Control roller garage doors are guaranteed against defect of material or workmanship by the manufacturer with a parts only warranty for a period of 2 years from the date of original purchase.
1.1.2.GDO Roll 55 and Roll 77 Electric Button Control roller garage doors’ exterior finish is guaranteed to provide an effective weatherproof membrane that will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase.
1.1.3.Externally fitted reverse roll GDO Roll 55 and Roll 77 Electric Button Control roller garage doors will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase. Colour change or fade to the exterior surface will be limited and uniform during the guarantee.
1.1.4.GDO Roll 55 and Roll 77 Electric Button Control motors and the Genesis, Teleco Simple and C10 control units are guaranteed for a period of 2 years from the date of purchase.
1.1.5.Somfy motors and the Rollixo control unit are guaranteed for a period of 5 years from the date of purchase.
1.2.This guarantee is in addition to your legal rights in addition to the manufacturers products that may be faulty or not as described. Advice about your legal rights is available from your local Citizens’ Advice Bureau or Trading Standards Office.
1.3.The following terms apply to all GDO Roll 55 and Roll 77 Electric Button Control roller garage doors purchased for installation in the UK. The terms shall prevail or be in addition to any agreement between you, the customer, the installer and/or the manufacturer.
1.4.The manufacturer will replace any components of our products sold as GDO Roll 55 and Roll 77 Electric Button Control roller garage doors (‘the Product’) where the manufacturing process has resulted in a defect occurring during the relevant period specified in the Conditions of Guarantee.
Ordering size is the over guide width (OGW) x guide height (GH).
Doors up to 3000mm wide have 70mm wide guides
Clear opening width = Ordering size + 140mm*
Doors over 3000mm wide have 90mm wide guides
Clear opening width = Odering size + 180mm*
* These measurements are correct for behind fit installations, please contact us for guidance inbetween fit installations.
Clear opening height = guide height - 50mm (to allow for the bottom slat hand-down into the guide).
