Carteck Centre Ribbed (White) Insulated Sectional Door garage door Steel Carteck

Carteck Centre Ribbed Made to Measure Sectional Door in White

The Carteck Centre Ribbed insulated sectional door offers a timeless and versatile design, featuring a single horizontal rib across each panel that perfectly balances classic and contemporary styling. This specific model represents our fully made to measure offering, finished exclusively in a crisp and clean White. By being manufactured to your exact structural opening dimensions, it ensures a flawless fit and maximises your available drive through width and height. It delivers all the premium engineering, exceptional security and outstanding thermal performance that the CarTeck brand is renowned for, making it the perfect choice for a tailored and high quality garage upgrade.

Benefits of an insulated sectional door in the UK

An insulated CarTeck sectional door instantly upgrades a cold and draughty garage into a more usable and comfortable space, which is ideal for the wet and windy climate in the UK. The 40 mm thick insulated steel panels and full perimeter sealing keep out draughts, rain and dust far better than basic up and over doors. Vertical lift with no outward swing also makes parking easier on shorter driveways and frees up more room inside the garage.

Key features of a CarTeck sectional door

Window and glazing options

Bring natural light into your garage and add style with a wide choice of factory fitted window designs and layouts. From simple square or rectangular units to contemporary shaped Bling windows and full width vision sections, you can tailor the look from traditional to ultra modern. Glazing uses double pane and scratch resistant polymer in clear, satin, frosted or tinted options so you can balance privacy with daylight.

Benefits of electric operation and control

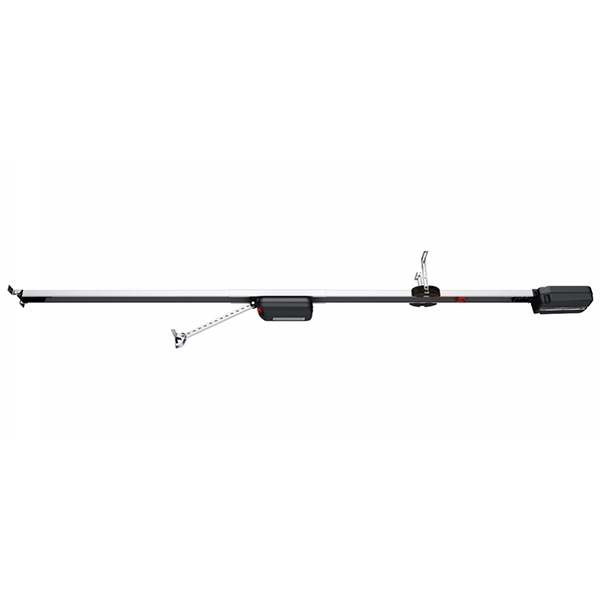

Electric operation makes daily use effortless. You can open and close the door from the car at the touch of a button, which is perfect on dark and wet evenings. CarTeck DRIVE and MOTOR operators are smooth, quiet and powerful enough for all standard sizes, featuring force monitoring that stops and reverses if the door meets an obstruction. You can add handheld remotes, internal wall controls, wireless keypads and smart app control such as SOMweb or myQ for convenient access and status checking from your phone.

Colours and surface finishes

Insulation, energy and integral garages

If your garage is attached to the house or has a room above, the improved insulation and tight weather stripping can help reduce heat loss and keep adjacent rooms more comfortable. A warmer and drier garage is far better for using the space as a gym, workshop or utility area and helps protect stored items from damp and condensation. Optional humidity controlled ventilation via the operator can automatically open the door slightly to dry out a wet car while still managing heat loss.

CarTeck spring mechanism and safety

Pre tensioned and concealed lifting springs alongside precision running gear give a smooth and well balanced action that feels light to operate and reduces strain on the motor. On larger doors, upgraded torsion springs and heavy duty hardware keep operation safe, stable and quiet even at very wide sizes. All doors and openers are tested together and CE and UKCA marked to BS EN 13241, so you benefit from a fully certified system rather than a mixed system setup.

Panel Construction

The door leaves feature an eight layer construction built around 40 mm thick panels made from twin 0.4 mm galvanised steel skins. These skins are bonded to a highly stable foam core with integrated thermal insulation and finished with highly effective adhesion primers and sealed top coatings for maximum wear resistance. This robust design achieves an impressive complete door thermal insulation U value of 1.38 W/m²K, while the individual panels themselves test at 0.56 W/m²K.
THis door is only offered in a white finish as a base price offering.

Weather Sealing

Comprehensive weather protection is achieved through flexible rubber sealing positioned at the frame header, down the frame sides and between every single door panel. A heavy duty rubber threshold seal sits at the bottom of the door, and Teckentrup can even manufacture a sloping bottom panel to precisely accommodate uneven garage floors. Additionally, a special plastic element separates the vertical frame sections from the floor to ensure the base aerates quickly and is protected against creeping dampness and corrosion.

Certified Performance

Every CarTeck sectional door is independently tested and CE and UKCA marked to guarantee compliance with all current safety and building legislation. The doors meet the heavy duty demands of everyday residential use and adhere to strict European performance standards.

Sizes Available

CarTeck sectional doors are manufactured to exact measurements to ensure a perfect fit for almost any garage opening, broken down into three main size categories:

• Standard Range: The normal standard sizing covers door widths up to 5500 mm and door heights up to 3000 mm, offering a made to measure fit for the vast majority of residential double and single garages.
• XL Range: When openings exceed the standard width, the XL sectional garage doors extend the available size from 5501 mm up to 6250 mm wide, with heights available up to 2500 mm.
• SuperSize Range: For exceptionally large spans, SuperSize doors start above 5500 mm wide and can reach a massive 8000 mm wide in a single continuous span, with heights available up to 3000 mm.

Lifting Gear

Standard sized CarTeck doors employ market leading sectional lifting gear featuring fully concealed lifting springs that provide a remarkably quiet and smooth action. The XL and SuperSize models upgrade to rear mount torsion springs, heavy duty roller brackets and extra panel reinforcing profiles to safely manage the increased weight of the larger door leaves. Across all sizes, robust galvanised steel roller blocks and ball bearing runner rails guarantee a long service life with minimal operational noise.

Automation Systems

Teckentrup pairs these sectional doors with smart technology openers that actively monitor operational forces and will push back with 60 kg of force if forced entry is attempted. Integrated control units like the CarTeck DRIVE and CarTeck MOTOR series provide effortless operation with varying power levels, integrated LED lighting and smart home connectivity options.

Safer, Simpler Installation with Preloaded Tension Springs

Unlike many other sectional garage doors that rely on complex and potentially dangerous high-tension torsion springs mounted directly above the door, the CarTeck system utilises a far safer, multi-spring tension system.

To make installation as straightforward and safe as possible, all single layer spring trays for standard CarTeck doors are now supplied fully pre-assembled straight from the factory. The high level tension springs come preloaded within their fully enclosed steel trays, complete with the lifting cables already perfectly routed and retained by anti-twist brackets. This incredibly smart design not only prevents dirt from entering the mechanism, boosting durability, but it also dramatically speeds up the installation process on site. The multiple spring system evenly balances the weight of the door panels, whilst the dual retaining cables reliably support the door in all situations, meaning it remains safe and operational even in an emergency. Because the springs are safely housed within these steel channels, tensioning the door is significantly safer and easier than wrestling with an exposed torsion spring bar.

Need Professional Installation Help?

If you have reviewed the process and decided that a DIY installation isn't right for you, we are here to help. We have a network of trusted, independent garage door installers covering many parts of the UK. We can put you in direct contact with a highly experienced local tradesperson who can survey your garage, discuss your options, and provide a professional installation service to ensure your new CarTeck door operates flawlessly for years to come. Please contact our sales team to find a recommended installer in your area.

Installation Instructions are provided with every door or can be found here.

Warranty for CarTeck Insulated Sectional Garage Doors

CarTeck insulated sectional garage doors supplied by Garage Doors Online are backed by a comprehensive manufacturer’s warranty from Teckentrup, giving homeowners added confidence in the long-term performance, durability and reliability of their garage door. The warranty applies to products used under normal domestic conditions and is designed to cover key structural, mechanical and operational components.

Warranty Cover

• 10-year warranty on door panels against rust penetration from the inside out.
• 10-year warranty on panel construction against separation of the steel skin from the insulating foam core.
• 10-year warranty on non moving frame components against material defects.
• 10-year warranty on floor, intermediate, side and lintel seals against rotting.
• 5-year warranty on moving hardware, including rollers, hinges, cables and standard springs.
• 5-year warranty on CarTeck operators including CarTeck DRIVE and MOTOR systems, where fitted.
• 2-year warranty on standard polymer and aluminium window inserts.
• 5-year warranty on premium SLX and GSA Vision window units.
• 3-year warranty on coastal paint finishes against peeling or blistering, where this finish has been specified at the time of order.

Usage Conditions

The warranty applies to doors installed and used in normal residential conditions, with normal use defined as up to five opening and closing cycles per day. Warranty periods may be reduced on oversized or super-size door models, particularly for springs and motorised operating equipment.

What the Warranty Provides

In the event of a valid warranty claim, the manufacturer may choose to repair the affected component, replace it with an equivalent defect-free part, or provide compensation reflecting the reduced value caused by the fault. Any warranty claim must be supported by proof of purchase and the relevant warranty documentation.

Warranty Conditions

• The garage door must be purchased through an approved supplier such as Garage Doors Online.
• The product must remain in the country where it was originally purchased.
• The door must be correctly installed, commissioned and maintained in accordance with the manufacturer’s instructions.
• A dated sales receipt and completed warranty paperwork may be required when making a claim.

Exclusions

The warranty does not cover damage or faults resulting from misuse, accidental damage, incorrect installation, poor maintenance, unauthorised alteration or external environmental influences. Normal wear and tear and minor visual changes over time are also excluded from cover.

• Remote control handsets, batteries and light bulbs are excluded.
• Damage caused during transport, assembly or commissioning is excluded.
• Surface fading, weathering and natural cosmetic ageing are not covered.
• Expansion or distortion caused by excessive heat or strong direct sunlight on dark finishes is excluded.
• Damage caused by fire, water ingress, salt air, chemicals, acids or other aggressive environmental conditions is excluded.

Important Note

This warranty applies in addition to your statutory rights. For complete peace of mind, installation should always be carried out correctly and the door should be used and maintained in line with the manufacturer’s guidance.

How to Measure for Your Made to Measure CarTeck Sectional Door

Measuring for a made to measure CarTeck sectional garage door ensures you get the absolute best fit for your garage, maximising your drive through width and height. Unlike standard size doors, these are manufactured to your exact specifications. All CarTeck sectional doors are ordered by their internal structural opening dimensions (the actual drive through width and height). The steel installation frame is always calculated as an addition or reduction to these internal dimensions, depending on your chosen installation position.

For quick visual reference, please refer to the 3D drawings located at the bottom of this page. These clearly show how the frame fits in relation to the opening.

Measuring for a Behind the Opening Fit (Standard)

This is the ideal and most common way to install a sectional door. The door and its steel framework sit entirely on the inner face of the garage wall, keeping the mechanics hidden and maximising the opening size.

• Width: Measure the brick to brick width of your garage opening in several places. Your ordering width is simply the exact smallest of these measurements.
• Height: Measure from the finished floor level to the underside of the lintel. Your ordering height is this exact measurement.
• Check your clearances: Because the frame sits entirely behind the brickwork, you must ensure you have sufficient internal space. You will need a minimum of 85mm to 90mm of clear sideroom on both the left and right sides of the opening to accommodate the frame legs.
• Check your headroom: You must also have a minimum of 120mm of clear headroom between the underside of the lintel and the ceiling to accommodate the top track and motor (this increases to 140mm for very large doors requiring double springing or if opting for XL and SuperSize dimensions).

Measuring for an Inbetween the Opening Fit

If you do not have internal brickwork returns, the door must be installed directly between the brick pillars using the optional Inbetween Opening Installation Kit.

• Width: Measure your brick to brick opening. To find your exact ordering width, you must deduct 180mm from this opening size (this allows for the two frame legs and a necessary fitting tolerance).
• Height: Measure your floor to lintel height. To find your exact ordering height, you must deduct 120mm (if installing a manual door or using the additional low headroom bracket) or deduct 140mm (for standard electric operation without the special bracket).

Important Depth Check

Sectional doors travel horizontally back into the garage space along the ceiling. It is essential to check that your garage is deep enough to accommodate the full length of the horizontal tracks and the motor boom. Ensure you have clear, unobstructed space running back into the garage equivalent to the height of the door plus approximately 350mm to 600mm.

If you have any doubts whatsoever about measuring your garage opening for a custom fit door, please contact our expert team for verification before placing your order.
