Carteck GSA Vision (16 Colour Options) Insulated Sectional Door garage door Aluminium Carteck

01926 463 888

Carteck GSA Vision (16 Colour Options) Aluminium Sectional Doors
Carteck Look at our customer reviews on trustpliot
Sectional Doors Aluminium GEAR TYPE: Sectional

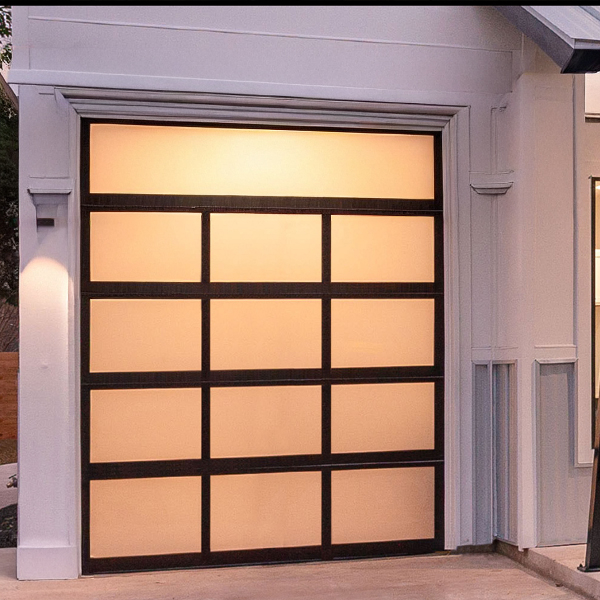

The Carteck Vision GSA is an elegant and contemporary door featuring multiple mullions and enjoying all the benefits of the market-leading CarTeck sectional garage door with panoramic views from inside or outside your garage. With a choice from 3 different vision styles and 16 on-trend frame colour options these automated sectional garage doors have concealed lifting springs, full width vision panels made from 40mm hollow aluminium profiles and 20mm scratch resistant, polymer double glazing.

These doors are prepared for remote control automation as standard and the operator is included in the price. Manual operation is not available.

  • Ultra-contemporary sectional door
  • Made to measure as standard for perfect fit
  • Electric operation as standard and included
  • Easiest installation and safest mechanism
Choose Your Sizes
Web Price from: £4,188.00 Inc. VAT
£3,490.00 Ex. VAT

The GSA Vision door from Carteck gives an ultra-contemporary look to your garage.

The multiple mullions give the sectional door a minimalist look and come with the choice of clear, satin or frosted glazing.

Each section is made from 40mm hollow aluminium profiles, with 20mm scratch resistant, polymer double glazing.  The door comes with concealed lifting springs to enhance the sleek modern look whilst maintaining a smooth quiet motion and comes complete with a Carteck Drive 600Nm Operator with 2x handsets as standard.



Choose Door Panel Colour Finish:
Select your preferred powdercoat colour finish for the outer framework on the door panels from a range of 16 Trend colours offered. RAL references for colours are provided as a guide only to the nearest similar RAL colour and colours will not match other RAL finishes with different coating processes, gloss content and surface texture finishes.
The surface finish for the door panel frames are a smooth finish.
Where the door is exposed to direct and lengthy sunlight darker colours should be avoided.

Frame legs and Head to match door colour:
Choose the colour you require for the outer steel frame system. Although many sectional garage doors are fitted behind the garage opening so you don’t see the sub frame you will still see the edge of the frame where it has a small return section. Standard colour is white and if any of the frame is showing or it is fitted inbetween you can contrast the door colour to the door panel colour if required.

Door Panel Glazing Options:Carteck glazing optionsChoose the glazing which is right for your application. All windows are double glazed as standard using a polymer scratch resistant glazing for safety, security and weight.
For the GSA door you have Clear, Satin or Frosted glazing options.

Installation Position:

Tell us whether you are fitting the door behind or inbetween the structural opening.
Sectional garage doors were originally designed to install behind the structural opening of a garage but it is now possible to fit the door inbetween if required – when there are no returns, internal obstacles, etc.
The sizes for ordering should be carefully calculated when fitting inbetween the opening reducing the ordering width by the frame legs and head section along with a tolerance for fitting too. See our ‘Measure’ tab for full details.

Inbetween Opening Installation Kit:
If fitting the door inbetween the structural opening you will need this kit to secure the steel sub frame to the opening with the special set of bracketry.

Choose Remote Control Operator Model (Included in Package)

We have included in this electric sectional door package the Carteck Drive 600Nm electric operator as standard. The 600NM is only a fraction more than the 500Nm but it is 33% faster in opening speed and more powerful too obviously and hence our operator of choice for this door range.

The standard Carteck Drive 600Nm is a one piece integrated unit with boom, motor and control in one unit to mount above the door. The Drive Pro 600Nm has a separate control unit than can be mounted wherever is most convenient in your garage to suit.
Both systems have remote control operation as standard and both have an integrated courtesy LED light built in which operated when the motor is used and switches off automatically. Add options for additional control as required from our options list

Emergency External Release for garages with a second entrance:

If you have no other means of access into your garage then we strongly advise you have an emergency manual release mechanism. It is a key cylinder operated from the outside of the door which provides a manual facility to disengage the motor drive from the door enabling the door to be lifted manually when there is a power failure.

Wireless 2 function Wall Switch:
This is a remote control device in the form of a wall mounted 2 button switch to control one or 2 garage doors from inside your garage or home. Like a light switch but without and cables and a battery remote control signal for operation. (Called Access Pack 2)

Parking Pack 1
Parking Pack 1 is compatible with the CarTeck DRIVE/ DRIVE PRO 600.  Help find the perfect parking position in your garage easier with the CarTeck parking laser and reflector.  See information leaflet here

Bluetooth Door Operation:

Control up to 10 electric operators with the SomWeb app supporting voice control via Siri and Google assistant and Alexa.
Somweb is the secure smart home solution where all data stays in your garage and enables you to control electric operators via a smartphone app, tablet or web browser.

Control door via app

Use voice commands to open or close your garage
Up to 10 operators with one SomWeb
Receive notifications of door movements via app.
Optional video function via video plug in with live stream of door movement.

For details see here



Resistance to Windload EN 12424 Class 2
Watertightness EN 12425 Class 2
Air Permeability EN 12426 Class 2
Thermal Transmittance EN 13241 3.3 W/m2k
Operating Forces (hand operated) EN 12604 150 N

 All Carteck doors are independently tested and certified to all current safety legislation and carry a CE mark.

 Installation instructions provided with every door or can be downloaded here


The warranty periods below only apply to products that have been correctly installed as per the instructions, maintained by a Garage Door Specialist and operated and cleaned in accordance with the requirements set out in the operating and maintenance sections of instructions and labels.
2-year manufacturer’s guarantee
  • on polymer and aluminium window units
5-year manufacturer’s guarantee
  • on rollers, hinges, cable pulleys, cables and standard springs
    (opening/closing max. 5 times a day)
10-year manufacturer’s guarantee
  • on panels against rust penetration from inside to outside
  • against door panel separation of steel from foam
  • on material and manufacturing flaws of all non-moving parts of the frame that are verifiably unusable or whose usability is substantially compromised
  • on floor seal, intermediate seals, side seals and lintel seal against rotting
The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.

If fitting between the opening, please deduct 180mm from the opening width to determine the ordering width.
Deduct 120mm for manual doors and 140mm for electric operation (unless the additional fitting bracket is purchased then 120mm applies) from the opening height to determine the ordering height.

Carteck Sectional Door Measuring Guide

Recommended horizontal track fixing points

A: Sectional garage doors are available in a far wider range of sizes, including purpose made sizes up to 8000mm, so measuring and ordering is relativ

(read more)
Tuesday 10th March 2015 at 12:00am
A: Sectional garage doors are best fitted to the back of the structural opening but can be fitted inbetween the opening if required. All sectional ty

(read more)
Monday 11th March 2013 at 12:00am
A: Most of the up and over and side hinged garage doors available are very easy to install as they are delivered with nearly all the operating mechani

(read more)
Sunday 20th November 2011 at 12:00am
A: They are always delivered by either the manufacturer or ourselves in specialised transport vehicles. The smaller items such as the remote control o

(read more)
Wednesday 28th September 2011 at 12:00am
View all in the Sectional Doors range >
