GDO Classic Medium Horizontal with Windows (32 Colour Options) Side hinged garage door Steel GDO

We regret that this door has been discontinued..

These sturdy steel side hinged doors are a stylish, low maintenance and easy to operate solution for your garage.

The Medium Rib Horizontal is an elegant horizontally ribbed design, perfect for adding a modern feel to your garage. GDO Doors offers a sturdy steel construction with a long lasting powdercoat paint finish requiring no further treatment. There are 34 attractive powder coated finishes available, meaning there is a finish to suit every property. The smooth powder coated finish on the door and frame can simply be wiped clean, and does not require re-painting.

Steel sub frame fitted as standard means the easiest on site installation to your structural opening. As standard, the doors have steel bracing to the back, along with twin latches on the active leaf and shoot bolts on the inactive leaf, for peace of mind for you and your family.

These side hinged doors are available in a 70/30 split, and are suitable for openings right up to 14ft wide. Often you will not be able to find side hinged doors for wider openings, these provide a great solution if you still want the easy operation and trackless benefits of side hinged doors, but you have a larger garage than usual!

Due to glazing restrictions, the minimum overall frame size with glazing is 2183mm wide. Should you require a door smaller than this size, please choose a non-glazed option.

These side hinged garage doors are available as the standard 50/50 split. Alternatively for doors under 8ft wide a 1/3 2/3 split can be selected*.

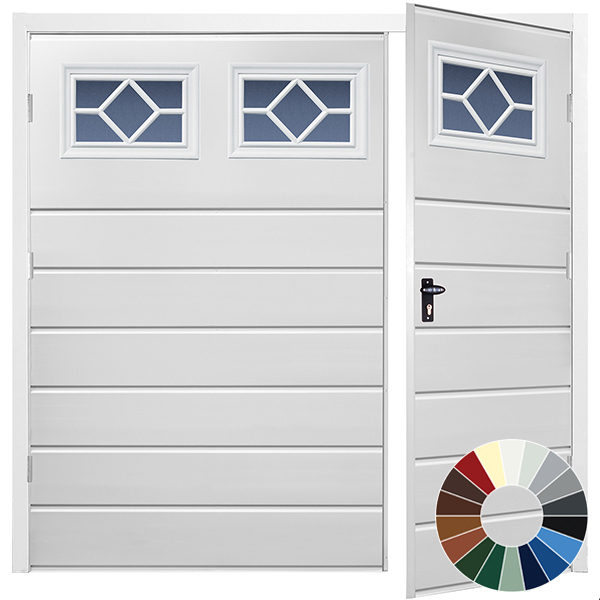

*Please Note: Image shows 50/50 split.

PLEASE NOTE - Minimum door width = 2362mm for 50/50 split or 1800mm for 1/3 2/3 split.

Outwards opening as standard only.

The steel bracing on these side hinged doors gives the doors a robust feel.

Door stays are available as an optional extra.

The side hinged doors are supplied with a standard black handle and internal lock handle.

Side hinged doors have high grade corrosion protected hinges for smooth operation and elimination of leaf “sag”.

All doors feature a strong sub-chassis with bracing plates to ensure rigidity of the door panel.

Standard doors have top and bottom cable operated lock latches to the active leaf and shoot bolts to the inactive leaf for dependable security.

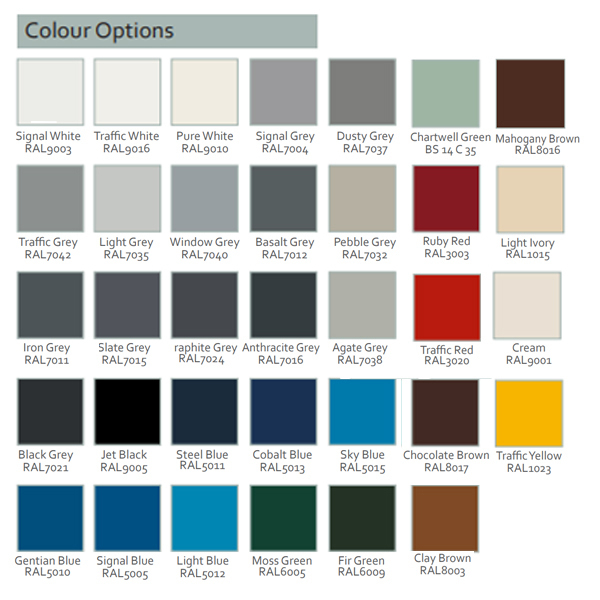

The side hinged doors are available in White RAL 9016 as standard, or available in the classic low gloss solid colours as below:

Signal White RAL9003
Grey White RAL9002
Pebble Grey RAL7032
Dusty Grey RAL7037
Traffic Grey RAL7042
Light Grey RAL7035
Window Grey RAL7040
Silver Grey RAL7001
Iron Grey RAL7011
Slate Grey RAL7015
Graphite Grey RAL7024
Anthracite Grey RAL7016
Black Grey RAL7021
Jet Black RAL9005
Steel Blue RAL5011
Cobalt Blue RAL5013
Gentian Blue RAL5010
Signal Blue RAL5005
Light Blue RAL5012
Moss Green RAL6005
Chartwell Green BS14 C35
Ruby Red RAL3003
Traffic Red RAL3020
Chocolate Brown RAL8017
Clay Brown RAL8003
Mahogany Brown RAL8016
Light Ivory RAL1015
Cream RAL9001

Pro floor seal

Installation Instructions are provided with every door.

1.Warranty Period.

A warranty covering the safe and reliable operation of the garage door for a period of 10 years from the date of purchase is given to the original purchaser.
The purchaser is given a 2 year warranty for all springs; tracks; rollers; and hinges for normal use, whereby normal use constitutes no more than 5 operations (open/close) per day. We recommend that they are inspected annually by a competent engineer. The warranty period for replacement parts is 6 months or for the remainder of the warranty period.

2. Requirements.
Warranty is valid in the country where the garage door was purchased.
The product must have been purchased through one of our authorised partners and a barcode and receipt of purchase provided.
The warranty only covers damage to the garage door.

3. Performance.
During the warranty period we will rectify defects to the Fort product that can be proved to be material or manufacturing faults. At our discretion we will either exchange; repair; or reduce the price. We will not accept any costs for dismantling; installation; or delivery.
The warranty does not cover damage caused by:
Improper transport and fitting.
Repairs by non-qualified or non competent individuals.
External influences such as fire, water, alkaline solutions, acid, bird droppings or abnormal atmospheric pollution.
The use of non Fort Doors parts without the approval of the manufacturer.

Additional Information
It is a fundamental condition of this guarantee that the product has been installed, maintained and serviced correctly and is used solely for the purpose for which it was designed.
Incorrect installation, maintenance and service will invalidate this warranty.
The door must be kept in a clean condition and free from impact damage.

GDO Pull Handles S/S Care and Maintenance
GDO garage doors come with pull handles to the front panel as standard.
The pull handles are made using grade 304 Stainless steel for use externally and internally in heavily sanitised areas such as kitchens and washrooms.
Like all steel, failure to keep the item clean can cause surface blemishes and what looks like a major product failure and rusting.
You will often find marks appearing in the winter when the roads have been gritted, salt on the surface are all steel products arch enemy.
If your pull bars develop small blemished areas during December, January and February in particular then you should wash them off using cold water and washing up liquid, you can use a cream cleaner like CIF rubbed lightly to remove the blemishes.
If you have them appear it means you have salt on the surface and need to increase the frequency of the door washdown.
Please remember all stainless steel can blemish even knives and forks in a dishwasher because salt is used as a scrubbing agent, wiping blemishes off with a cloth is standard practice and you should treat the door bars the same, clean and wipe regularly.
If you live close to the sea or estuary you should apply a light oil after washing once a month to keep the item clean and fresh.

Click here to view maintenance instructions.

Click here to view this door's product guarantee.

Due to glazing restrictions, the minimum overall frame size with glazing is 2183mm wide.

The ORDERING sizes for PURPOSE MADE doors refer to the dimensions for the OVERALL door and steel sub frame size. Allow 10mm minimum tolerance on the width and between 5-10mm on the height for your brickwork opening sizes.

If your opening is larger then packers and trims can be used to cloak the gaps where you pack out to accommodate the sub frame, or you can use a timber sub frame which can be any size you require.
