GDO 40mm Luxe Lambeth (11 Heritage Colours) Steel Side Hinged - insulated
GDO
Side Hinged - insulated Steel
SIZE
Width:up to 2286mm
Height: up to 2050mm GEAR TYPE: Side Hinged what's this?
Width:up to 2286mm
Height: up to 2050mm GEAR TYPE: Side Hinged what's this?
SPECIAL OFFER! GarageDoorsOnline are offering an Extra £100 Off the GDO 40mm Insulated Side Hinged Garage Doors
Use Voucher Code: GDOSH40 at the checkout to save £100. Click here for details.
DUE TO EXCEPTIONALLY HIGH DEMAND, DELIVERY OF THESE DOORS MAY BE DELAYED. PLEASE CONTACT US FOR THE LATEST LEADTIMES.
Insulated, double skinned, steel side hinged garage doorset. Factory pre assembled with everything you need already fitted and ready to go!
Double skin steel door leaves, aluminium outer sub frame, locking, hinges, handles and door stays, all factory pre fitted for the very easiest on site installation.
No preparation required, door is prefinished in choice of super high quality powdercoat colours on a super stylish smooth finish, Horizontal Ribbed design door.
- Preassembled ‘doorset’ for the easiest installation on site. No hanging of door leaves required
- Great levels of security through door leaf and outer frame design and locking system
- High quality powdercoat finish as standard with choice of Heritage RAL colour options
- Insulated 40mm double skinned door leaves offering great degrees of sound and heat insulation
1
Your selected size (change your size)
up to 2286 mm
up to 2050 mm

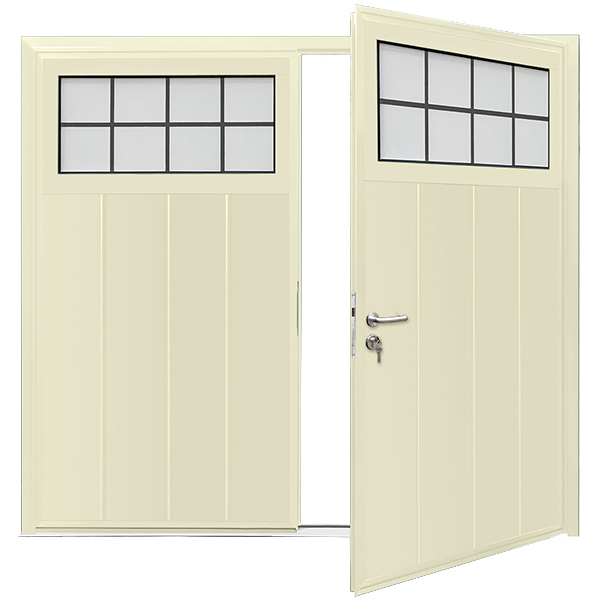

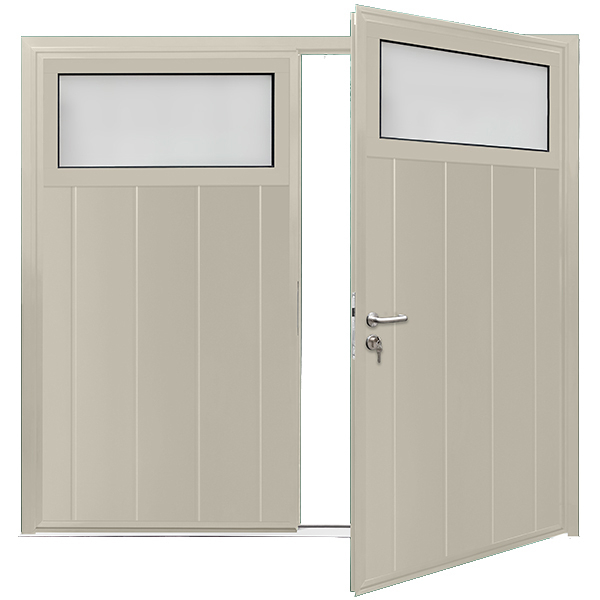

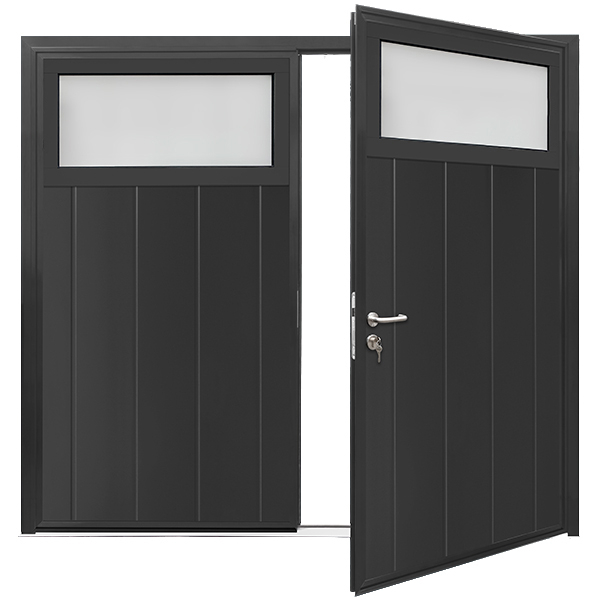

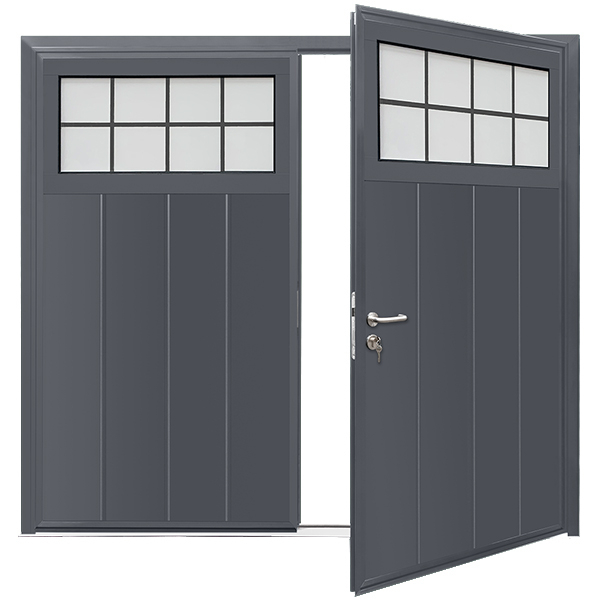

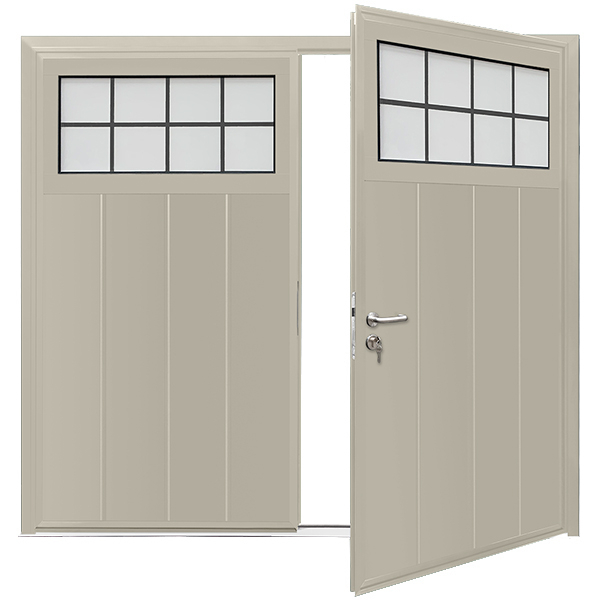

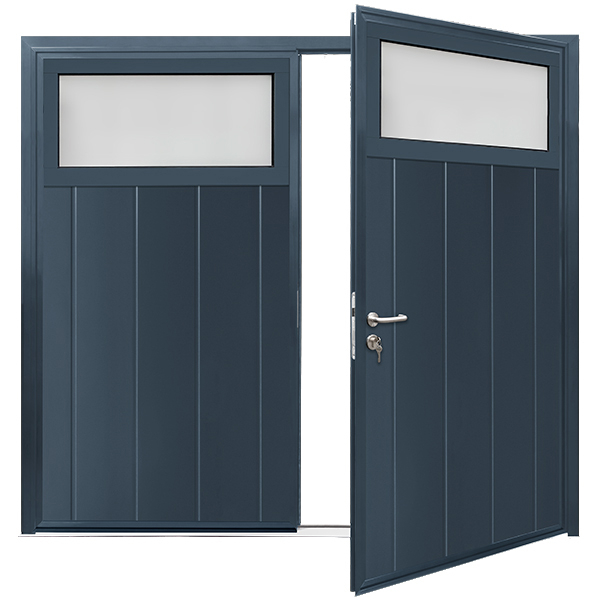

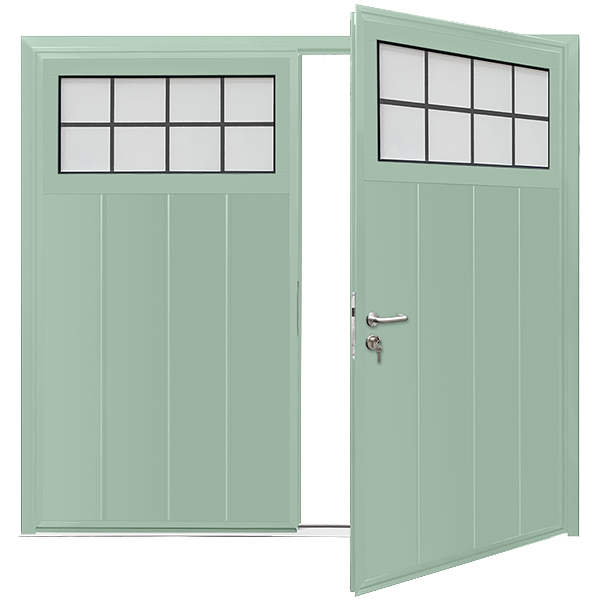

The GDO Lambeth offers a traditional 1940s style set of side hinged doors with integrated windows for light and vision. If your garage is very much integrated as a part of your main house then these doors may well suit.
Side hinged garage doors are a timeless classic that have been used for decades, and they still remain one of the most popular styles today. These traditional garage doors open outwards from the centre, giving you easy pedestrian access to your garage.
Make the most of modern materials and technology with the beauty of traditional design. The Lambeth design gives you high specifications and performance as standard with built in weatherseals, a threshold, concealed shoot bolts, friction stays and superb quality locking and handleset as standard
The Lambeth door leaves are manufactured from double skinned foam filled 40mm thick galvanised steel panels and the windows are also double glazed so insulation and security are fairly standard on these doors. The doors are manufactured with the aluminium outer sub frame included and the doorset is supplied with all hardware, locking and hinged prefitted and ready to go once delivered to you.
The external face for these doors is a smooth powdercoat finish and the colours available are all
From our Heritage range of colours.
The excellent high quality powdercoat finish on the smooth finish provides a truly classic and beautiful finish to these doors with matching outer sub frame.
A made to measure steel garage door set ordered to the millimetre by the overall width and height dimensions including the outer sub frame
Choose the side for your main active door leaf which also has the handle fitted for operating.
The ‘slave’ door leaf will have the internal bolts and latches to hold closed until you need to open.
Choose your threshold option. The standard threshold supplied as standard is a raised
Choose the glazing finish and whether you would like the windows to be plain or with the simulated leading option
Extra Security Locking Options are available with the 3 point higher security locking system.
Choose your finished outer face colour for the doors and the sub frame.
The standard door face surface is a wood grain textured finish to look like a grained wood effect and offering excellent camouflage for any minor dents and dings which may occur during the doors life.
Colour options are:
Chartwell Green BS14C35
Cream RAL 9001
Cream RAL 9001
Moss Green RAL 6005
Agate Grey RAL 7038
White RAL 9016
Pigeon Blue RAL 5014
Pebble Grey RAL 7032
Slate Grey RAL 7015
Sage Green RAL 1306010
Agate Grey RAL 7038
White RAL 9016
Pigeon Blue RAL 5014
Pebble Grey RAL 7032
Slate Grey RAL 7015
Sage Green RAL 1306010
Smooth external door panel finish with powdercoat colour finish from selection of heritage colours. Internal face is a stucco off white colour as standard.
Made to measure with maximum door and outer frame dimensions of 2500mm wide and 2350mm high. Door are made to the millimetre and ordered as Overall door and frame dimensions.
• Stainless steel handle and rose to the active leaf
• Handle and Thumb turn to the inside for easy and convenient unlocking and exit
• Easy-latch concealed shoot bolts to the top and bottom of the inactive leaf
* Window Constructionis a polymer casement with polymer double glazed unit available in Clear, Frosted or Satin finish options.
• Aluminium strip threshold with blade seal to the bottom of each door leaf
• Each leaf is fitted with a easy-action friction stay to hold the door leaf open
• The inside of the door has a frame and panel section joints that match the colour of front face of the door, with a practical grey white stucco texture (RAL 9002) to the back of each panel section
> High Quality Hinges - Aluminium hinges with secured hinge bolts to make it extremely difficult to lever open the door and are easily adjusted.
> Stainless Steel Handles - High grade stainless steel handles and lock covers are tough and attractive.
> Stainless Steel Handles - High grade stainless steel handles and lock covers are tough and attractive.
> Double seals and mitred corners - In addition to the circumferential seal around the door leaf the door frame has a three sided seal for excellent draught reduction. Profiles are mitre jointed for a neat finish.
> Door stays - Protecting your door from slam closure on windy days these top grade, spring dampened stays hold the door securley in the open position.
> Flush bolt security - The inactive leaf is secured with flush bolts to the top and bottom of the leaf.
> Hardware - DIN standard CE marked European sash lock and a pair of stainless steel round bar lever handles on 50mm diameter roses. A Euro profile cylinder and thumb turn with stainless steel escutcheons is included as standard (double cylinder, key both sides is available as an option if required). The inactive leaf is fitted with top and bottom recessed lever action flush bolts. A stay is fitted to each leaf to hold the door in the open position.
> Door Lock Cylinder Security Upgrade - Easier and cheaper to obtain replacement keys, 3 keys as standard, BS EN1303 Cylinder Security Grade 2, Anti-drill and anti-pick design, break off system to deter forced entry. • Handle and Thumb turn to the inside for easy and convenient unlocking and exit.
Notes about Insulation:
GDO Side Hinged Garage Doors have not been tested for thermal performance. The declaration of performance for GDO Side Hinged Garage Doors, as part of the requirement of the British Standard for Garage doors (EN13241-1), states, “No Performance Determined”. This means we make no claims about the insulating properties of our doors and you must decide, knowing this, if they are suitable for your needs. The sub frame is made from aluminium hollow-section profiles.
The door panel sections have been tested but not as a complete door and have a U value of 0.56 W/m²K. The doors will provide great levels of insulation but are not manufactured with an insulated sub frame or testing like a front entrance door would be.
Installation details provided with the door.Carteck Fitting Instructions for side hinged garage and side doors
The door is delivered with the frame, hinges and all major components factory fitted, ready for easy on-site installation.
2-year manufacturer’s guarantee
· On hinges, locks, handles and stays
(opening/closing max. 5 times a day)
10-year manufacturer’s guarantee
· On the panel against rust inside and outside
· On the steel splitting away from the foam
· On material and manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
· On floor seals, central seals, side seals and header seal against perishing
